200XS DFI 2.5L ROS - Serial 1E050852 and Up - Swivel Bracket(Short)

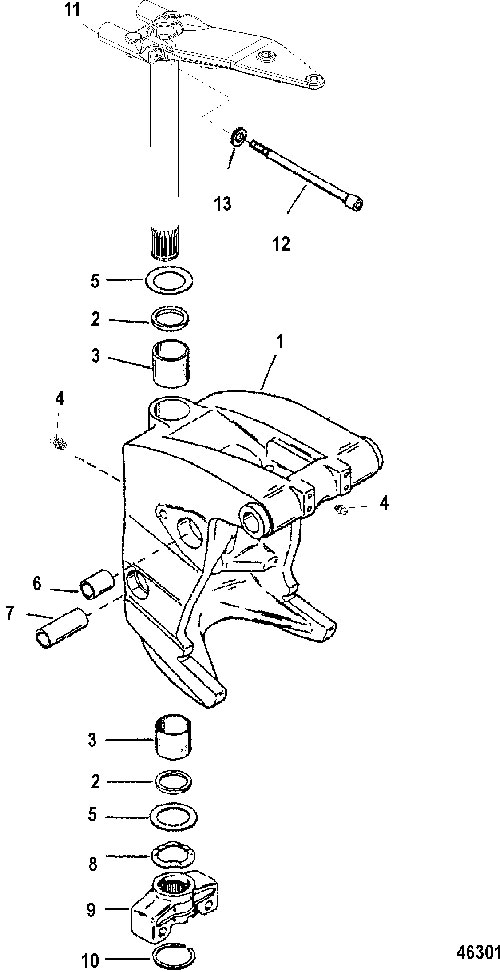

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3521-818810T16         SWIVEL BRACKET ASSEMBLY 1
2 26-847729         SEAL, Oil 2
3 23-8M0042131         BEARING 2
4 22-74036         FITTING, Grease 2
5 23-847728         BEARING 2
6 23-82203516         BEARING 1
6 23-82203522         BEARING 1
7 23-82203540         BEARING (2.5 Inches) 2
8 13-78854         WAVE WASHER 1
9 86580F4         YOKE, Bottom 1
10 53-848125         RING, Retaining - Spiral Lock 2
11 17-8M0056723         SWIVEL PIN, (Black) 1 8M0028057
12 10-132121         SCREW 2
13 12-816056         WASHER 2
