200XS DFI 2.5L ROS - Serial 1E050852 and Up - Gear Housing, Propeller Shaft-Standard-Sportmaster

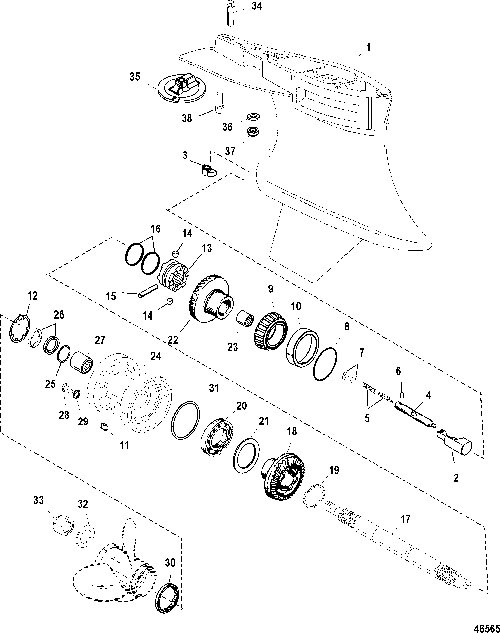

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1687-840560A09 | GEAR HOUSING ASSEMBLY, Complete (1.75) | 1 | ||||||
| 1 | 1687-8M0083306 | GEAR HOUSING ASSEMBLY, Basic (Does Not Include Studs. Order the Stud 16-59579 listed below) | 1 | 849780A2 | |||||
| 2 | 89594A1 | FOLLOWER ASSEMBLY | 1 | ||||||
| 3 | 789562 | SHIFT CAM | 1 | ||||||
| 4 | 79911A1 | ROD | 1 | ||||||
| 5 | 24-79910 | SPRING | 2 | ||||||
| 6 | 17-8M0084245 | PIN | 1 | 78906 | |||||
| 7 | 12-78910 | WASHER | 2 | ||||||
| 8 | 15-47397A1 | SHIM SET | AR | ||||||
| 9 | 31-78172A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 10 | NSS | Cup | 1 | Not Sold Separate | |||||
| 11 | 28-30281 | KEY | 1 | ||||||
| 12 | 14-79447 | TAB WASHER | 1 | ||||||
| 13 | 52-8M0052635 | RATCHET | 1 | ||||||
| 14 | 17-78909 | PIN, Detent | 2 | ||||||
| 15 | 17-42671 | PIN, Cross | 1 | ||||||
| 16 | 24-78962 | SPRING | 2 | ||||||
| 17 | 44-840451A03 | PROPELLER SHAFT | 1 | ||||||
| - | 840389K06 | PROP HUB KIT | 1 | ||||||
| - | 840382A02 | SNUBBER STRIP KIT | 1 | ||||||
| 18 | 43-849189T2 | GEAR CONVERSION KIT | 1 | ||||||
| 19 | 23-822823 | THRUST RING | 1 | ||||||
| 20 | 30-88957T | BEARING, Ball | 1 | ||||||
| 21 | 681001 | RING, Thrust | 1 | ||||||
| 22 | NSS | REVERSE GEAR, 1.75 | 1 | Not Sold Separate | |||||
| 23 | 31-549281 | BEARING, Roller | 1 | ||||||
| 24 | 848840A1 | CARRIER ASSEMBLY, Bearing | 1 | ||||||
| 25 | 53-817071 | RING, Snap | 2 | ||||||
| 26 | 26-815565 | SEAL, Oil | 2 | ||||||
| 27 | 31-817072 | BEARING, Roller | 1 | ||||||
| 28 | 22-8M0058389 | PLUG KIT, Drain - Magnetic | 1 | 67892A06 | |||||
| 29 | 12-191833 | SEAL | 1 | ||||||
| 30 | 8M2011027 | RETAINER, Bearing Carrier | 1 | ||||||
| 31 | 25-31534 | O-RING | 1 | ||||||
| 32 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 33 | 11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | ||||||
| 34 | 10-41350 | SCREW, (.437-14 x 2.50) Stainless Steel | 1 | ||||||
| 35 | 76214T3 | ANODE | 1 | ||||||
| 36 | 12-822836 | WASHER, (.445 x .805 x .108) | 3 | ||||||
| 37 | 11-859116 | NUT, (.437-20) | 3 | ||||||
| 38 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel | 1 | ||||||
| - | 26-89238A3 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 3 |
