200XS DFI 2.5L ROS - Serial 1E050852 and Up - Driveshaft Housing

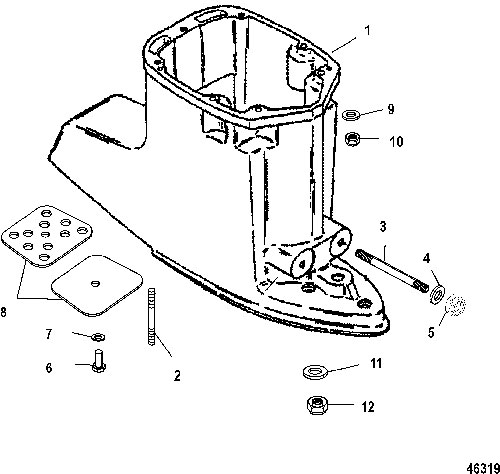

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1581-818900T24         HOUSING, Driveshaft (Short) 1
2 16-59579         STUD, (.437-14/.437-20 x 2.812) (Short) 2
3 16-818908         STUD, (.500-13/.500-20 x 4.120) (Short) 2
4 12-816056         WASHER (Short) 2
5 11-898832         NUT, (.500-20) (Short) 2
6 10-39349         SCREW, (.312-18 x .750) Stainless Steel (Short) 1
7 12-847539         WASHER (Short) 1
8 818909         PLATE, Exhaust Blockoff 1
9 12-822838         WASHER, (.401 x .745 x .097) (Short) 10
10 11-826709113         NUT, (.375-24) Stainless Steel (Short) 2
10 11-82671013         NUT, (.375-24) Stainless Steel (Short) 8
11 12-822836         WASHER, (.445 x .805 x .108) 3
12 11-859116         NUT, (.437-20) 3
- 27-881805A01         GASKET SET, Engine 1
