200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Air Handler

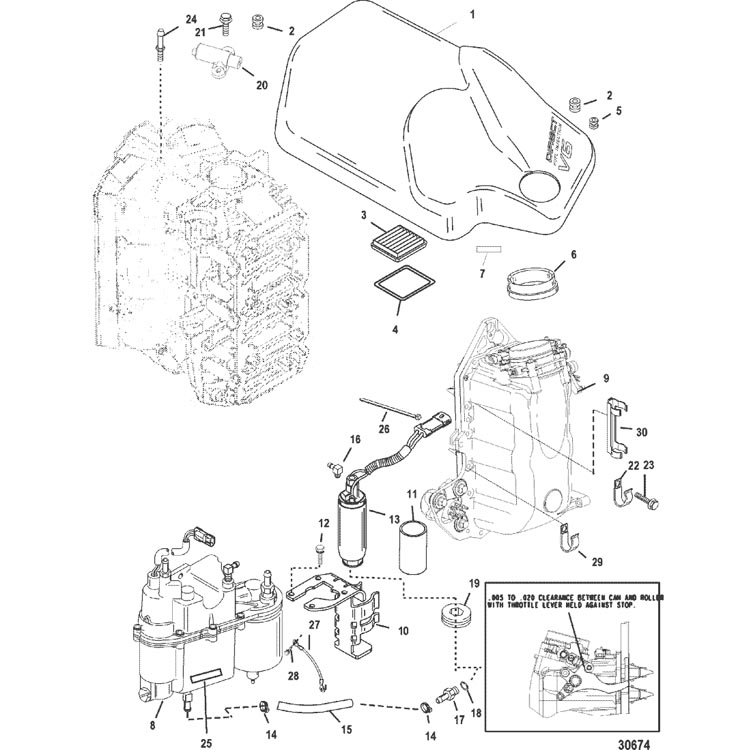

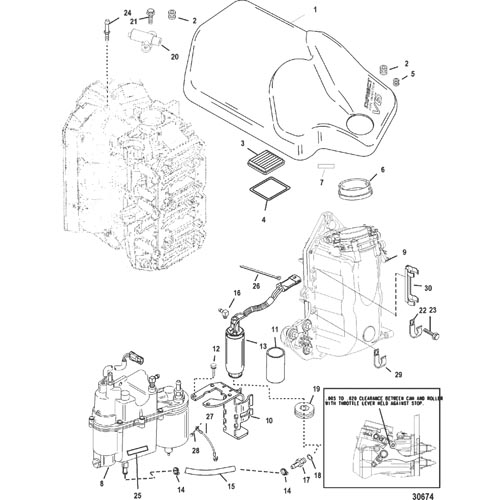

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827325A10 | COVER ASSEMBLY | 1 | 827325T10 | |||||
| 2 | 25-821555001 | GROMMET | 2 | 821555 | |||||
| 3 | 35-853333T | FILTER | 1 | ||||||
| 4 | 853352 | COVER | 1 | ||||||
| 5 | 25-857101 | GROMMET | 1 | ||||||
| 6 | 25-855613 | GROMMET | 1 | ||||||
| 7 | 37-881865 | DECAL, Caution, Start in Gear | 1 | 825064 | |||||
| 8 | NSS | VAPOR SEPARATOR ASSEMBLY | 1 | Not Sold Separate | |||||
| 9 | 855633T28 | AIR HANDLER ASSEMBLY | 1 | 855633T22 | |||||
| 10 | 855756A1 | BRACKET KIT | 1 | No Longer Available | |||||
| 11 | 23-803818 | SLEEVE | 1 | No Longer Available | |||||
| 12 | 10-1993716 | SCREW, (M6 x 16) | 4 | ||||||
| 13 | 8M0047624 | PUMP ASSEMBLY | 1 | 8558432 | |||||
| 14 | 54-13791 | 676-9-35604 | CLAMP, (15.7) | 4 | |||||
| 15 | 32-856778 | HOSE | 1 | No Longer Available | |||||
| 16 | 22-855802A1 | ELBOW | 1 | ||||||
| 17 | 22-880862A1 | FITTING | 1 | 856812 | |||||
| 18 | 25-805062 | O-RING, (.530 x .082) | 1 | ||||||
| 19 | 25-856928 | GROMMET | 1 | No Longer Available | |||||
| 20 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 21 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 22 | 54-883080 | J CLIP | 2 | ||||||
| 23 | 10-817504 | SCREW, (.250-20 x 1.500) Stainless Steel | 12 | ||||||
| 24 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 25 | 37-881804A01 | DECAL, EPA Label Information | 1 | No Longer Available | |||||
| 25 | 37-881804A02 | DECAL, EPA Label Information | 1 | No Longer Available | |||||
| 25 | 37-881804A03 | DECAL, EPA Label Information | 1 | No Longer Available | |||||
| 26 | 61990 | TIE STRAP, (14.00 Inches) | 1 | ||||||
| 27 | 84-88807A27 | CABLE ASSEMBLY | 1 | No Longer Available | |||||
| 28 | 10-82130010 | SCREW, (M6 x 10) | 1 | ||||||
| 29 | 54-633003 | CLAMP | 1 | ||||||
| 30 | 8261151 | CLAMP, Connector | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
