7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Starter Motor And Alternator

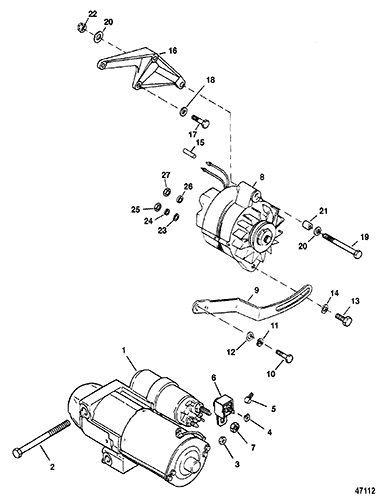

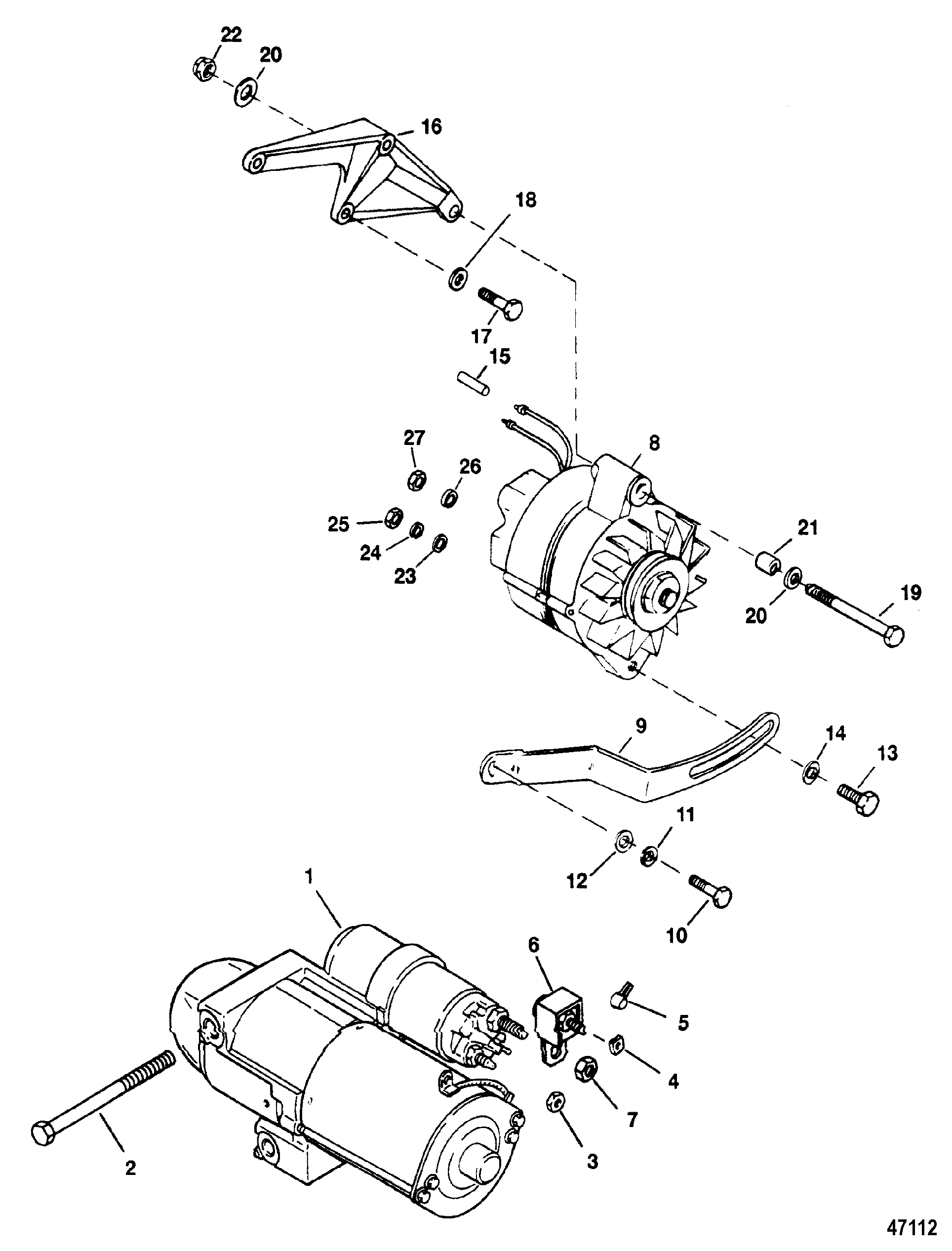

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 50-863007A1 | 676-9-15907 | 602-10099MD or | 620-5399M | STARTER MOTOR ASSEMBLY | 1 | 50-806964A3 | |||
| 2 | 10-8053432 | SCREW, (.375-16 x 4.33) | 2 | |||||||
| 3 | 11-806949 | NUT, (M8-1.5) (8MM) | 1 | |||||||
| 4 | 11-400211 | NUT, (M5) Stainless Steel (5MM) | 1 | |||||||
| 5 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | ||||||
| 6 | 88-79023A91 | 676-9-15510 | FUSE ASSEMBLY, 90 Ampere (90 AMP) | 1 | ||||||
| 7 | 11-21825 | NUT, (.250-28) | 1 | |||||||
| 8 | 805884T | 676-9-19103 | 620-3159M | ALTERNATOR | 1 | |||||
| 9 | 85013T | BRACE | 1 | |||||||
| 10 | 10-47462 | SCREW, (.437-14 x 1.250) | 1 | |||||||
| 11 | 13-32993 | LOCKWASHER, (.437) | 1 | |||||||
| 12 | 12-31263 | WASHER | 1 | |||||||
| 13 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) (7/8 IN.) | 1 | |||||||
| 14 | 12-26168 | WASHER | 1 | |||||||
| 15 | 32-7381567 | TUBING, (42.00 Inches Bulk) | 2 | |||||||
| 16 | 806394A1 | BRACKET | 1 | This Part is no longer available | ||||||
| 17 | 10-47462 | SCREW, (.437-14 x 1.250) (1-1/4 IN.) | 1 | |||||||
| 17 | 10-91903 | SCREW, (.437-14 x 1.750) (1-3/4 IN.) | 2 | |||||||
| 18 | 12-22248 | WASHER, (.453 x .875 x .060) | 3 | |||||||
| 19 | 10-48308 | SCREW, (.375-24 x 3.750) (3-3/4 IN.) | 1 | |||||||
| 20 | 12-20553 | 700-21675 | WASHER, (.406 x .734 x .063) | 3 | ||||||
| 21 | 23-33186 | BUSHING | 1 | |||||||
| 22 | 11-23161 | NUT, (.375-24) | 1 | |||||||
| 23 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | |||||||
| 24 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | |||||||
| 25 | 11-79989 | NUT, (#10-24) Stainless Steel (10-24) | 1 | |||||||
| 26 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | |||||||
| 27 | 11-94330 | NUT, (.250-20) Brass (1/4-20) | 1 |
