7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Intake Manifold And Intake Plenum

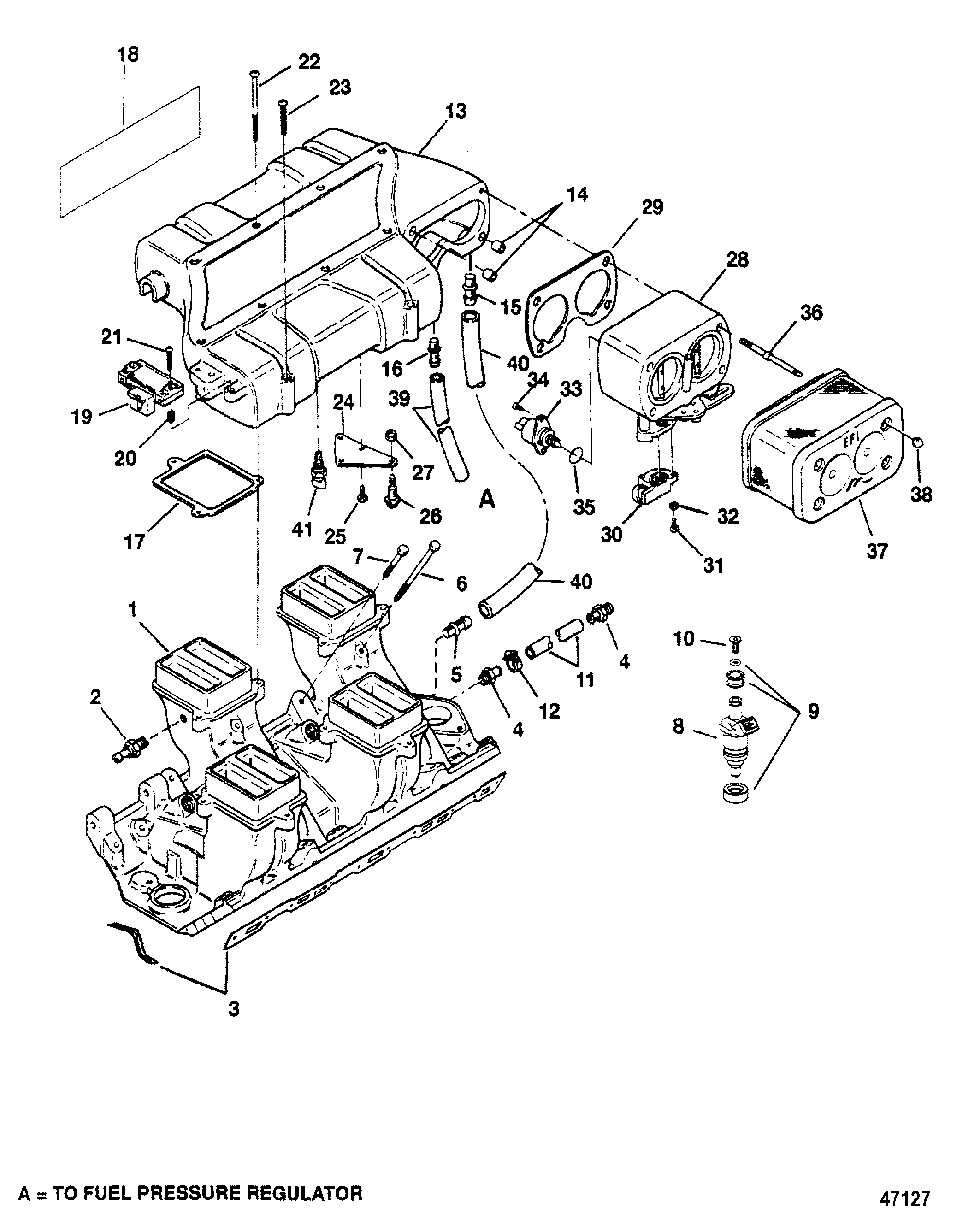

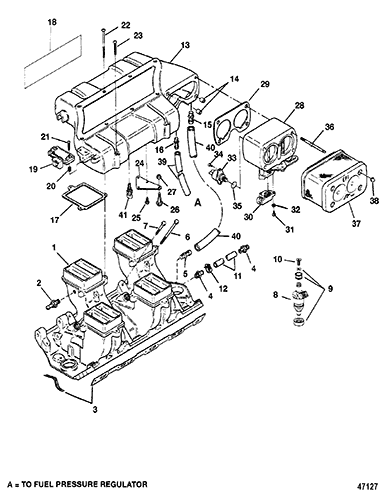

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805233A6 | MANIFOLD ASSEMBLY, Intake | 1 | 805233A2 | |||||
| 2 | 22-805691 | FITTING, (.250) Barb | 1 | ||||||
| 3 | 27-805403A1 | GASKET SET | 1 | 3 | |||||
| 4 | 22-806242 | CONNECTOR | 2 | ||||||
| 5 | 22-805519 | FITTING, Barb (.250 Inch) (1/4 IN. BARB) | 1 | ||||||
| 6 | 10-807640 | SCREW, (.375-16 x 5.5) (5-1/2 IN.) | 4 | This Part is no longer available | |||||
| 7 | 10-807641 | SCREW, (.375-16 x 1.75) (1-1/2 IN.) | 12 | ||||||
| 8 | 805225A1 | 676-9-33100 | NJECTOR ASSEMBLY, Fuel | 8 | |||||
| 9 | 25-805511A1 | 525-805511A1 | SEALING KIT, Fuel Injector | 8 | 3 | ||||
| 10 | 35-17422 | FILTER | 8 | ||||||
| 11 | 32-8059871 | HOSE, Water Pump To Intake Manifold | 1 | ||||||
| 12 | 54-815504412 | CLAMP, Worm Gear | 2 | ||||||
| 13 | 805240A1 | PLENUM ASSEMBLY, Intake | 1 | This Part is no longer available | |||||
| 14 | 23-52698 | SLEEVE | 2 | ||||||
| 15 | 22-805519 | FITTING, Barb (.250 Inch) (1/4 IN. BARB) | 1 | ||||||
| 16 | 22-805598 | FITTING, (.1875) Barb (3/16 IN. BARB) | 1 | ||||||
| 17 | 27-805522A1 | GASKET SET | 1 | 3 | |||||
| 18 | 37-8238169 | DECAL | 1 | This Part is no longer available | |||||
| 19 | 864856A1 | 676-9-33601 | SENSOR ASSEMBLY | 1 | 805217A1 | ||||
| 20 | 26-805412 | SEAL | 1 | 3 | |||||
| 21 | 10-805393 | SCREW | 2 | This Part is no longer available | |||||
| 22 | 10-805391 | SCREW, (.312-18 x 4.500) (4-1/2 IN.) | 8 | ||||||
| 23 | 10-805390 | SCREW, (.312-18 x 2.250) (2-1/4 IN.) | 4 | ||||||
| 24 | 805413T | BRACKET, Throttle Cable | 1 | This Part is no longer available | |||||
| 25 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 26 | 10-96430 | SHOULDER SCREW | 1 | ||||||
| 27 | 11-814101 | NUT, (.250-20) Stainless Steel | 1 | ||||||
| 28 | 805243A12 | THROTTLE BODY ASSEMBLY | 1 | This Part is no longer available | |||||
| 29 | 27-805396 | 700-30363 | GASKET, Throttle Body | 1 | 3 | ||||
| 30 | 805226A1 | 676-9-33701 | SENSOR ASSEMBLY, TPS | 1 | |||||
| 31 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 32 | 12-28001 | WASHER, (.188 x .438 x .049) | 2 | This Part is no longer available | |||||
| 33 | 805224A1 | 676-9-33401 | MOTOR ASSEMBLY, IAC | 1 | |||||
| 34 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 35 | 25-808547 | O-RING | 1 | ||||||
| 36 | 16-805399 | STUD | 4 | ||||||
| 37 | 807656A2 | FLAME ARRESTOR | 1 | 805401A2 | |||||
| 38 | 11-805402 | NUT, Acorn | 4 | ||||||
| 39 | 32-8M0063567 | HOSE | 1 | 32-80617333 | |||||
| 40 | 32-7381567 | TUBING, (42.00 Inches Bulk) | 1 | ||||||
| 41 | 805223T | 676-9-42406 | SENSOR | 1 | |||||
| - | 27-805396A95 | GASKET SET | 1 |
