7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Cylinder Head And Rocker Cover

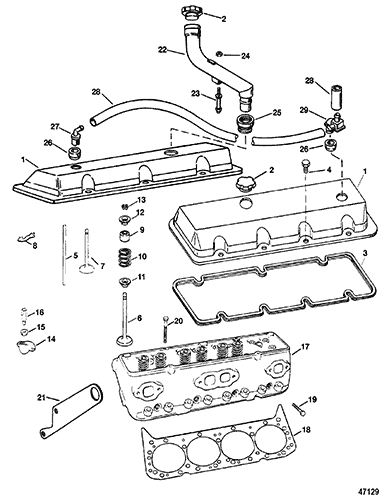

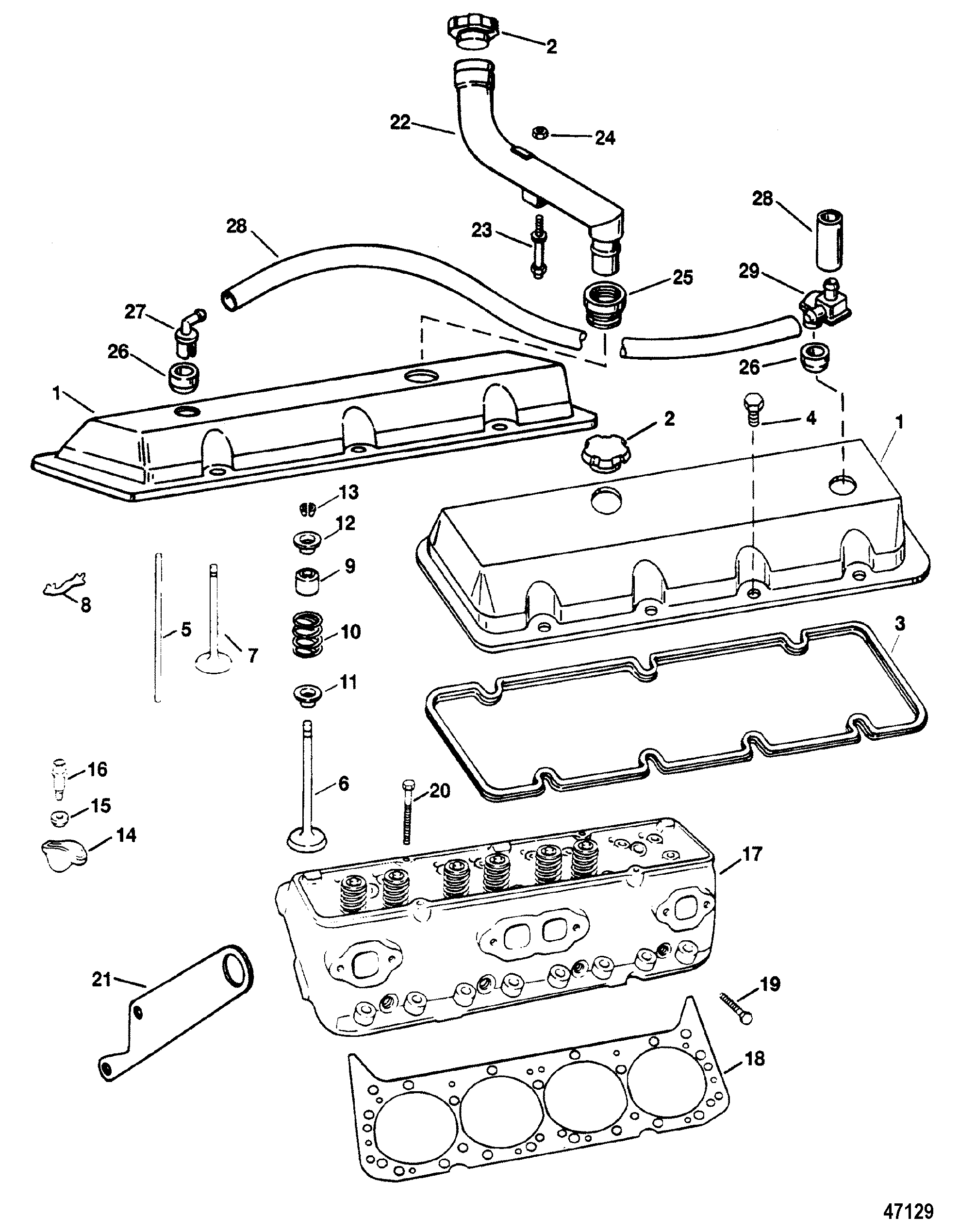

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 850462 | ROCKER COVER | 2 | 811587 | |||||
| 2 | 36-811569 | CAP, Oil Tank | 2 | ||||||
| 3 | 27-811588 | 676-9-61315 | GASKET, Rocker Cover | 2 | 3 | ||||
| 4 | 10-811589 | BOLT, (1/4-20 x 0.875) | 14 | ||||||
| 5 | 75589 | ROD (INLET) | 8 | ||||||
| 5 | 75590 | ROD (EXHAUST) | 8 | ||||||
| 6 | 814506 | VALVE, Exhaust (STANDARD) | 8 | ||||||
| 6 | 814507001 | VALVE, Exhaust (.015 O.S.) | AR | 814507 | |||||
| 7 | 49134 | VALVE, Intake (STANDARD) | 8 | ||||||
| 7 | NSS | Not Sold Separate (.015 O.S.) | AR | ||||||
| 8 | 811585 | GUIDE | 8 | This Part is no longer available | |||||
| 9 | 26-811545 | 676-9-61651 | SEAL, Valve | 16 | 3 | ||||
| 10 | 24-14754T | SPRING | 16 | 24-14754 | |||||
| 11 | 14755 | ROTATOR | 16 | This Part is no longer available | |||||
| 12 | 14753 | CAP | 16 | This Part is no longer available | |||||
| 13 | 28-54530 | KEY | 32 | ||||||
| 14 | 811590 | ROCKER ARM | 16 | This Part is no longer available | |||||
| 15 | 850472 | BALL, Rocker Arm | 16 | 811592 | |||||
| 16 | 10-811593 | BOLT, Rocker Arm | 16 | ||||||
| 17 | 938-883492R1 | CYLINDER HEAD | 2 | 938-827656 | |||||
| 18 | 879150141 | GASKET | 2 | 27-811547 | 3 | ||||
| 19 | 10-8M0000463 | BOLT, (2.00 Inch) (2 IN.) | 8 | 10-49106 | |||||
| 20 | 10-8M0000482 | BOLT, (4.125 Inch) (4-1/8 IN.) | 24 | 10-49105 | |||||
| 21 | 807081T | BRACKET, FRONT | 1 | ||||||
| 22 | 36-807131T | TUBE | 1 | This Part is no longer available | |||||
| 23 | 16-805706 | STUD | 1 | ||||||
| 24 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) | 1 | 11-35045 | ||||
| 25 | 26-805622 | GROMMET | 1 | ||||||
| 26 | 25-811553 | GROMMET | 2 | ||||||
| 27 | 97850T | ELBOW, 90 Degree, Breather | 1 | 97850 | |||||
| 28 | 32-805933 | BREATHER HOSE | 2 | This Part is no longer available | |||||
| 29 | 805558A2 | BAFFLE ASSEMBLY, Breather | 1 | This Part is no longer available | |||||
| - | 27-805396A95 | GASKET SET | 1 |
