575 SCi - Serial 0L306696 Thru 0L307026 - Power-Assisted Steering Components

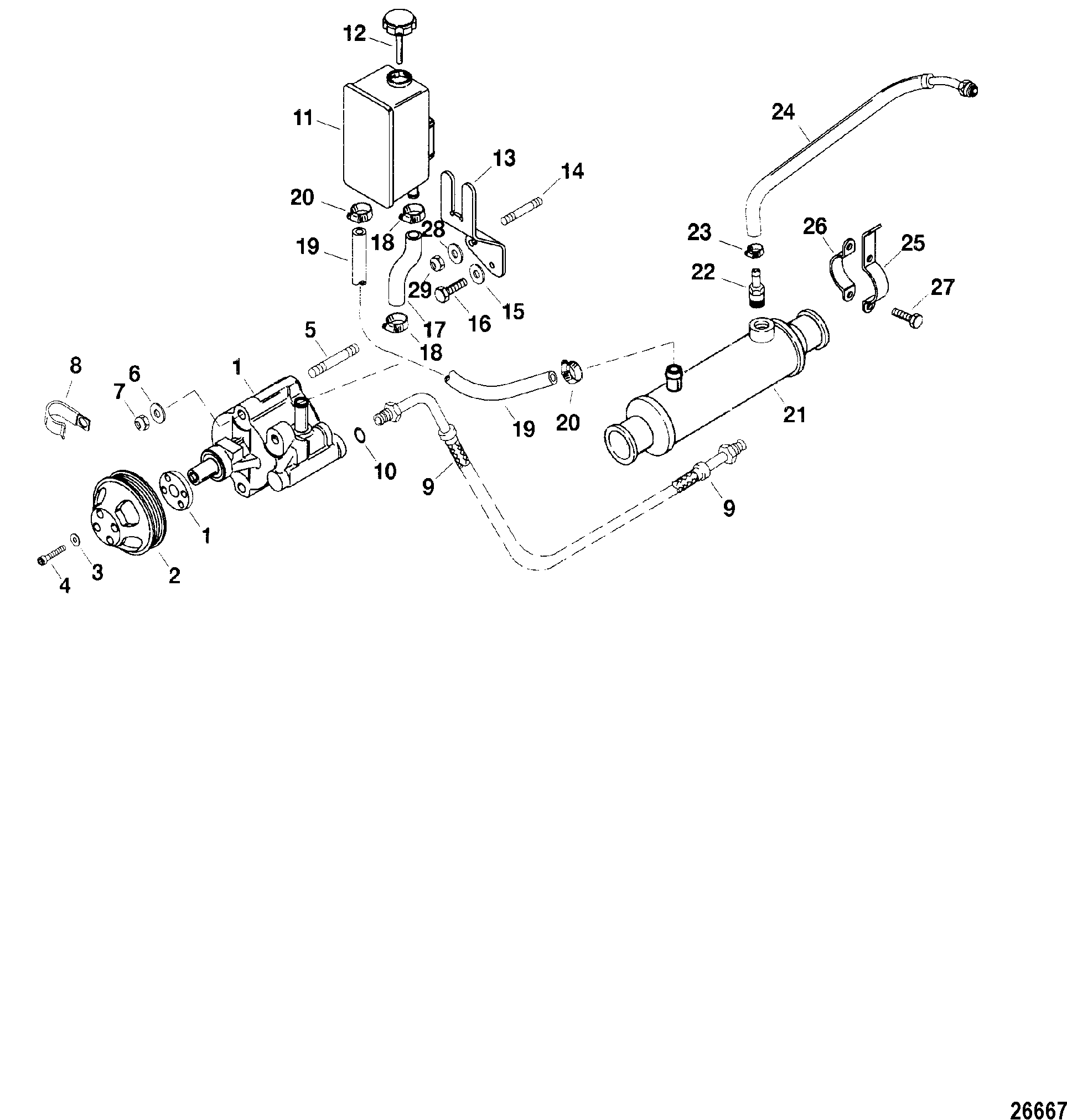

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 849906A14 | PUMP KIT, Power-Assisted Steering - Complete | 1 | 849906A2 | SN# 0L601000 THRU 0L602090 | ||||
| - | 849906A14 | PUMP KIT, Power-Assisted Steering - Complete | 1 | 849906A4 | SN# 0L306696 THRU 0M053292 | ||||
| 1 | 849906A28 | PUMP ASSEMBLY, Power-Assisted Steering - Black | 1 | ||||||
| 2 | 849048T | PULLEY, Blue | 1 | ||||||
| 3 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 4 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 5 | 16-849375 | STUD, (.375-24 x 3.750) | 2 | ||||||
| 6 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 7 | 11-82671013 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 8 | 54-62494 | CLIP | 1 | ||||||
| 9 | 32-98494 | HOSE ASSEMBLY, Pump To Booster - Hi Pressure | 1 | SN# 0L601000 THRU 0L602090 | |||||
| 9 | 32-84243550 | HOSE ASSEMBLY, Pump To Booster - Hi Pressure | 1 | SN# 0L306696 THRU 0M053292 | |||||
| 10 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 11 | 862752T1 | RESERVOIR ASSEMBLY | 1 | ||||||
| 12 | 806216 | CAP | 1 | 840186 | |||||
| 13 | 849298 | BRACKET, Reservoir Mount | 1 | 849298T | |||||
| 14 | 16-842441 | STUD, (.437-14/.437-20 x 2.250) | 1 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 16 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 1 | ||||||
| 17 | 32-845620 | HOSE, (10.62 Inches), Reservoir To Pump | 1 | ||||||
| 18 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 19 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut 19.50 Inches - Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 20 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 2 | ||||||
| 21 | 849291 | COOLER, Power Steering Oil | 1 | ||||||
| 22 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 23 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 24 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), Cut 48.00 Inches - Fitting On One End | 1 | SN# 0L601000 THRU 0L602090 | |||||
| 24 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 48.00 Inches - Fitting On One End | 1 | SN# 0L306696 THRU 0M053292 | |||||
| 25 | 63820F3 | BRACKET, Oil Cooler - Long Style | 1 | 638203 | |||||
| 26 | 563281 | BRACKET, Oil Cooler - Short Style With Weldnut | 1 | ||||||
| 27 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | ||||||
| 28 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 29 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 |
