575 SCi - Serial 0L306696 Thru 0L307026 - Mount Plates (Engine)

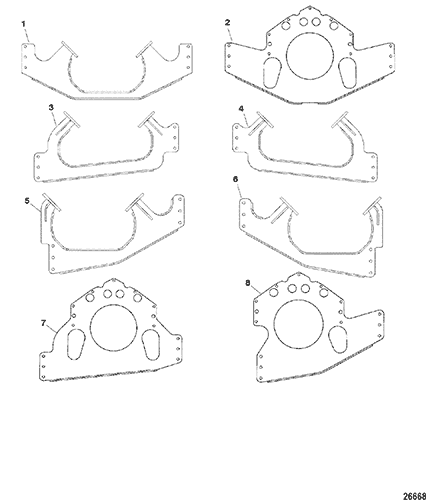

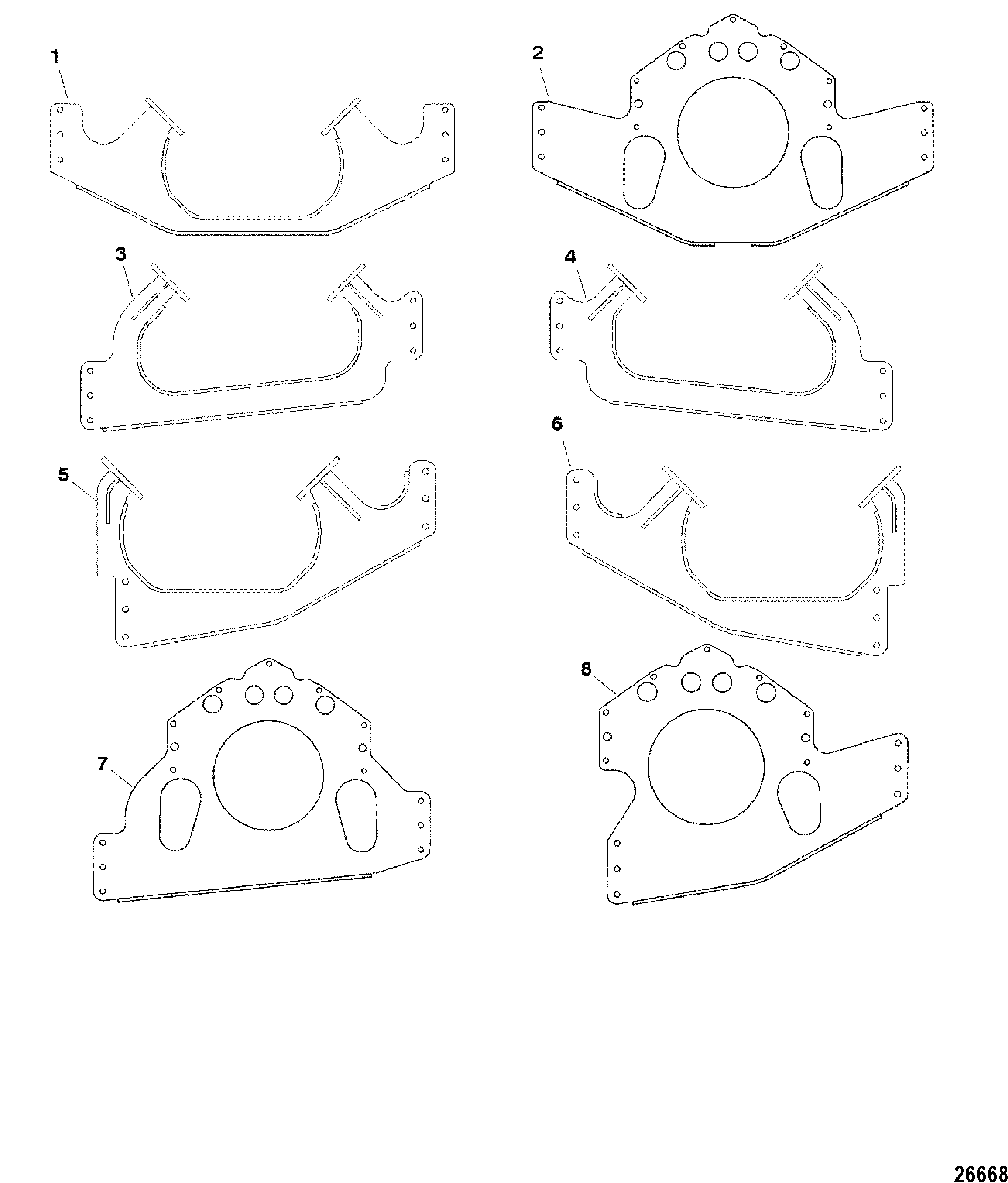

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849143T | MOUNT, Engine, Front - Single | AR | ||||||
| 2 | 844843T | MOUNT, Engine, Rear - Single | AR | ||||||
| 3 | 849299T | MOUNT, Engine, Front Starboard - Side By Side | AR | ||||||
| 4 | 849339T | MOUNT, Engine, Front Port - Side By Side | AR | ||||||
| 5 | 849310T | MOUNT, Engine, Front Starboard - Staggered | AR | ||||||
| 6 | 849335T | MOUNT, Engine, Front Port - Staggered | AR | ||||||
| 7 | 844844T | MOUNT, Engine, Rear - Side By Side | AR | ||||||
| 8 | 844845T | MOUNT, Engine, Rear - Staggered | AR | ||||||
| - | 10-86518 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| - | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 |
