525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Carburetor And Linkage

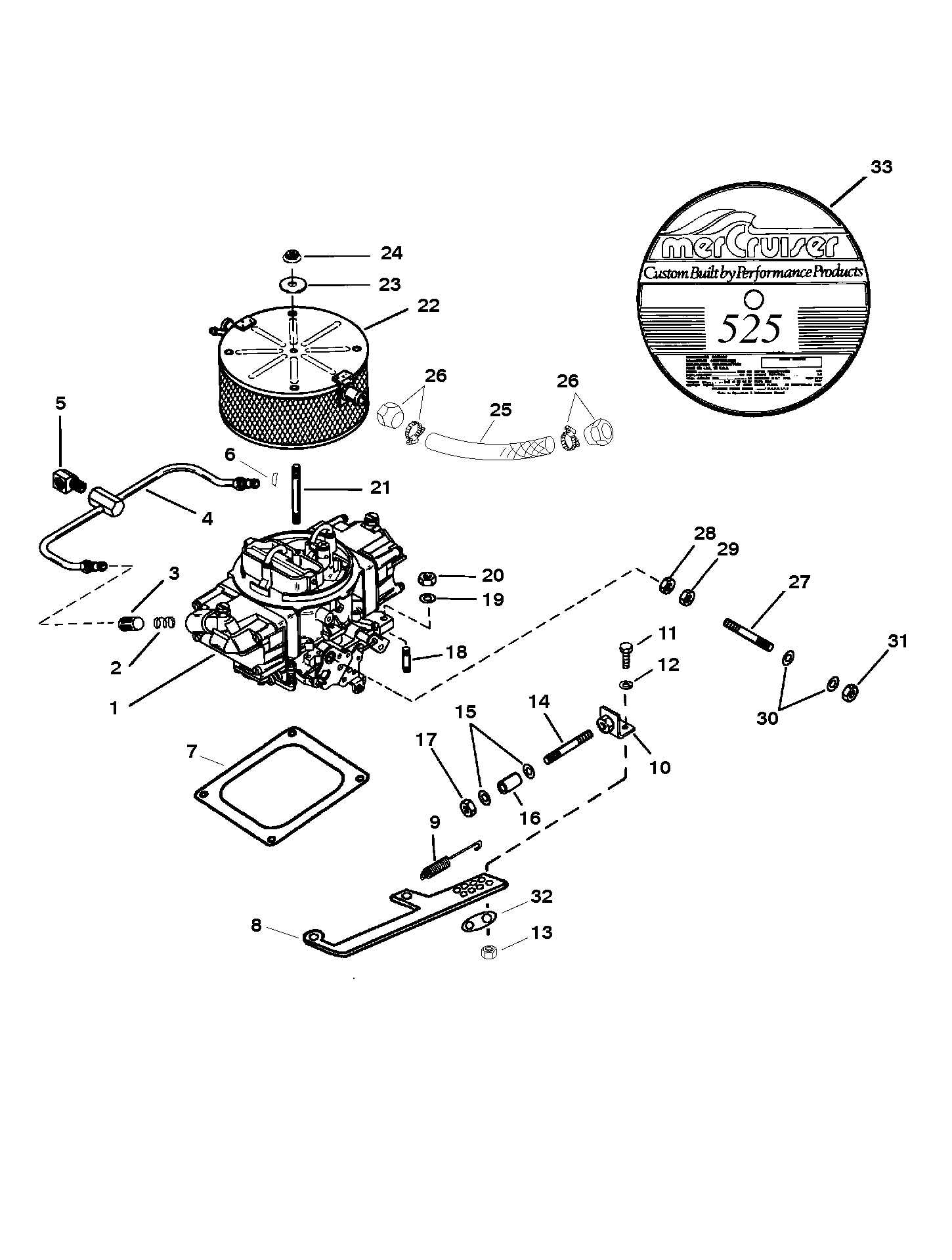

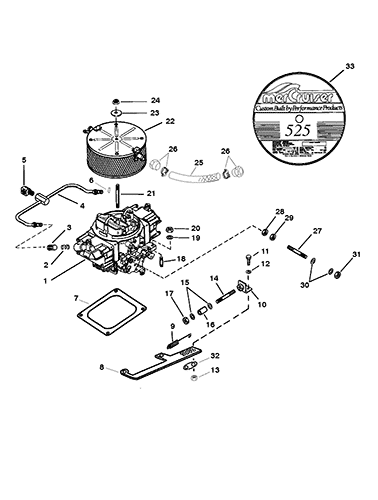

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846000T3 | CARBURETOR (BLUE) | 1 | 12377A6 | This Part is No Longer Available | ||||
| 2 | 24-48143 | SPRING-Filter | 2 | ||||||
| 3 | 35-93568 | 676-9-37825 | FILTER | 2 | |||||
| 4 | 32-12837A1 | LINE ASSEMBLY-Fuel Inlet | 1 | This Part is No Longer Available | |||||
| 5 | 22-93385 | ELBOW-Fuel Inlet Tube | 1 | ||||||
| 6 | 27-848438 | GASKET-Flair (Copper) | 2 | ||||||
| NS | 8M0050786 | REBUILD KIT-Carburetor Overhaul | 1 | 822386 | 2 | ||||
| NS | 27-42270A1 | GASKET SET-Carburetor | 1 | 2 | |||||
| NS | 1396-9860 | POWER VALVE | 1 | 2 | |||||
| NS | 32-42265 | TUBE (Bowl Vent) | 1 | 2 | |||||
| NS | 1399-650898 | JET-Main (.125) (Primary-Port) | 1 | 2 | |||||
| NS | 1399-650898 | JET-Main (.125) (Primary-Starboard) | 1 | 2 | |||||
| NS | 1399-650898 | JET-Main (.125) (Secondary-Port) | 1 | 2 | |||||
| NS | 1399-650898 | JET-Main (.125) (Secondary-Starboard) | 1 | 2 | |||||
| 7 | 27-42270A1 | GASKET | 1 | 27-12732 | 4 | ||||
| 8 | 128493 | BRACKET-Throttle | 1 | 128492 | This Part is No Longer Available 1 | ||||
| 9 | 24-897454 | SPRING-Throttle Return | 1 | 24-32817 | |||||
| 10 | 15017 | BRACKET-Throttle | 1 | ||||||
| 11 | 10-78291 | SCREW (.187-24 x .500)-Throttle Bracket | 2 | ||||||
| 12 | 13-26996 | LOCKWASHER (#10)-Throttle Bracket Screw | 2 | ||||||
| 13 | 11-79989 | NUT (#10-24)-Throttle Bracket Screw | 2 | ||||||
| 14 | 16-98851 | STUD-Cable | 1 | No longer made, limited availability | |||||
| 15 | 12-69056 | WASHER-Cable Stud | 2 | 12-21631 | |||||
| 16 | 23-31866 | SPACER-Cable Stud | 1 | ||||||
| 17 | 11-826709109 | 525-11-826709109 | NUT (.250-28)-Cable Stud | 1 | 11-35045 | ||||
| 18 | 16-96108 | STUD (.312 x 2.160) | 4 | This Part is No Longer Available | |||||
| 19 | 12-848136 | WASHER-Carburetor Stud (.328 x .680 x .190) | 2 | ||||||
| 19 | 12-20084 | 700-21664 | WASHER-Carburetor Stud (.328 x .562 x .062) | 2 | |||||
| 20 | 11-82670911 | NUT (.312-24)-Carburetor Stud | 4 | 11-35814 | |||||
| 21 | 16-30668 | STUD (.312 x 2.812)-Flame Arrestor | 1 | ||||||
| 22 | 8486201 | ARRESTOR-Flame | 1 | 848620 | This Part is No Longer Available | ||||
| 23 | 12-22753 | WASHER-Flame Arrestor Stud | 1 | ||||||
| 24 | 11-82670911 | NUT (.312-24)-Flame Arrestor Stud | 1 | 11-35814 | |||||
| 25 | 32-821284A8 | HOSE ASSEMBLY (16.00 In.)-Vent | 2 | ||||||
| 26 | 54-84763012 | CLAMP-Vent Hose | 4 | This Part is No Longer Available | |||||
| 27 | 16-728091 | STUD (.250 x 1.620)-Throttle Cable to Carburetor | 1 | 16-72809 | |||||
| 28 | 11-826709109 | 525-11-826709109 | NUT (.250-28)-Throttle Cable Stud | 1 | 11-35045 | ||||
| 29 | 11-21825 | NUT (.250-28)-Throttle Cable Stud | 1 | ||||||
| 30 | 12-29245 | 700-21490 | WASHER-Throttle Cable Stud | 2 | |||||
| 31 | 11-8267098 | NUT (.250-20)-Throttle Cable Stud | 1 | 11-56374 | |||||
| 32 | 53-782012 | CLIP | 1 | This Part is No Longer Available | |||||
| 33 | 37-848599 | DECAL-Flame Arrestor | 1 | ||||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
