525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Thermostat Housing

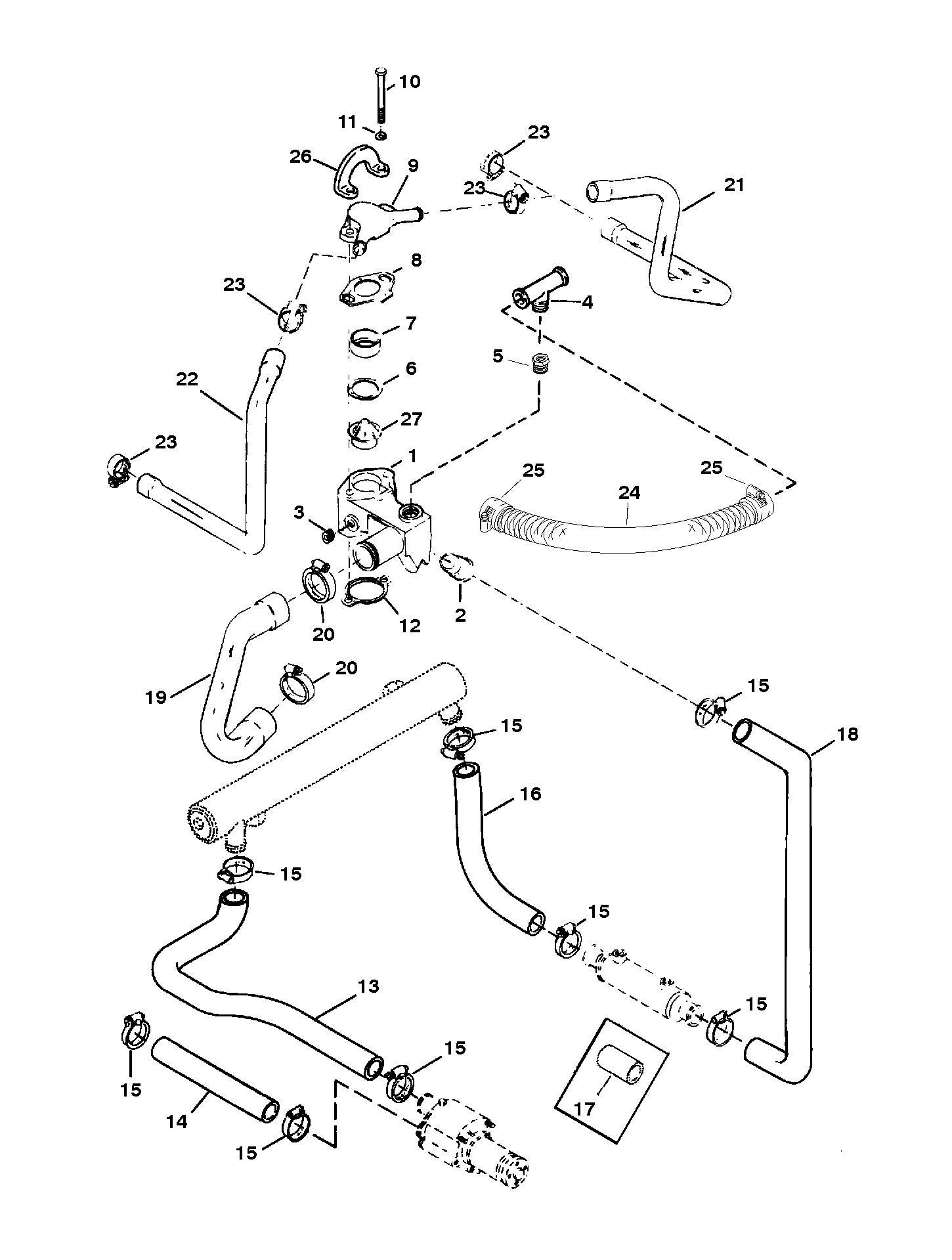

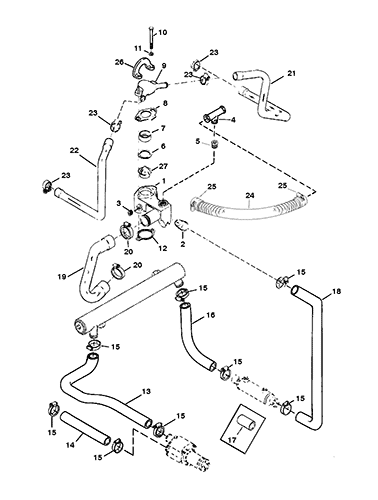

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 817131A1 | HOUSING ASSEMBLY-Thermostat | 1 | This Part is No Longer Available | |||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 22-32803 | PLUG-Pipe (.375-18) | 1 | ||||||
| 4 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| NS | 30-98475 | BALL-Nylon | 2 | 2 | |||||
| NS | 24-75533 | SPRING | 2 | 2 | |||||
| NS | 11-826709106 | NUT (#10-32) | 1 | 11-29488 | 2 | ||||
| 5 | 22-847768 | FITTING-Adapter | 1 | This Part is No Longer Available | |||||
| 6 | 27-47510 | GASKET-Thermostat | 1 | 4 | |||||
| 7 | 23-47508T | SLEEVE-Thermostat | 1 | 23-47508 | |||||
| 8 | 27-418122 | GASKET-Thermostat Cover | 1 | 4 | |||||
| 9 | 47441A1 | COVER-Thermostat | 1 | ||||||
| 10 | 10-14164 | SCREW (.375-16 x 4.375) | 2 | ||||||
| 11 | 12-20553 | WASHER | 2 | ||||||
| 12 | 27-530451 | GASKET-Thermostat Housing | 1 | 4 | |||||
| 13 | 32-848178 | HOSE-Pump to Cooler | 1 | ||||||
| 14 | 32-1743565 | HOSE (38.00 In.)-Sea Pump to Drive Unit | 1 | (PLUG-IN MODELS) | |||||
| 14 | 32-13556A1 | HOSE KIT (10.00 Ft.) | 1 | (DRIVELINE MODELS) | |||||
| 15 | 54-180765 | CLAMP | 2 | ||||||
| 15 | 54-180766 | CLAMP | 8 | (PLUG-IN MODELS) | |||||
| 16 | 32-848956 | HOSE-Oil Cooler to Oil Cooler | 1 | 32-12818 | |||||
| 17 | 22-13177 | TUBE-Water Hose | 1 | (NON POWER STEERING) | |||||
| 18 | 32-816344 | HOSE-Oil Cooler to Thermostat Housing | 1 | This Part is No Longer Available | |||||
| 19 | 847677A01 | HOSE-Thermostat Housing to Water Pump | 1 | 32-822524 | |||||
| 20 | 54-180768 | CLAMP | 2 | ||||||
| 21 | 32-816347 | HOSE-Thermostat Cover (PORT) | 1 | ||||||
| 22 | 32-848957 | HOSE-Thermostat Cover (STARBOARD) | 1 | 32-816346 | |||||
| 23 | 54-180764 | CLAMP | 4 | ||||||
| 24 | 32-847764A1 | HOSE ASSEMBLY (22.00 In.) (PORT) | 1 | ||||||
| 24 | 32-847764A2 | HOSE ASSEMBLY (17.00 In.) (STARBOARD) | 1 | This Part is No Longer Available | |||||
| 25 | 54-84775218 | CLAMP-Hose | 4 | ||||||
| 26 | 12552 | LIFTING EYE | 1 | ||||||
| 27 | 807252T1 | THERMOSTAT (140 Degree) | 1 | 8072521 | |||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
