Bravo XR One - Serial 0L914990 Thru 0W239999 - Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)

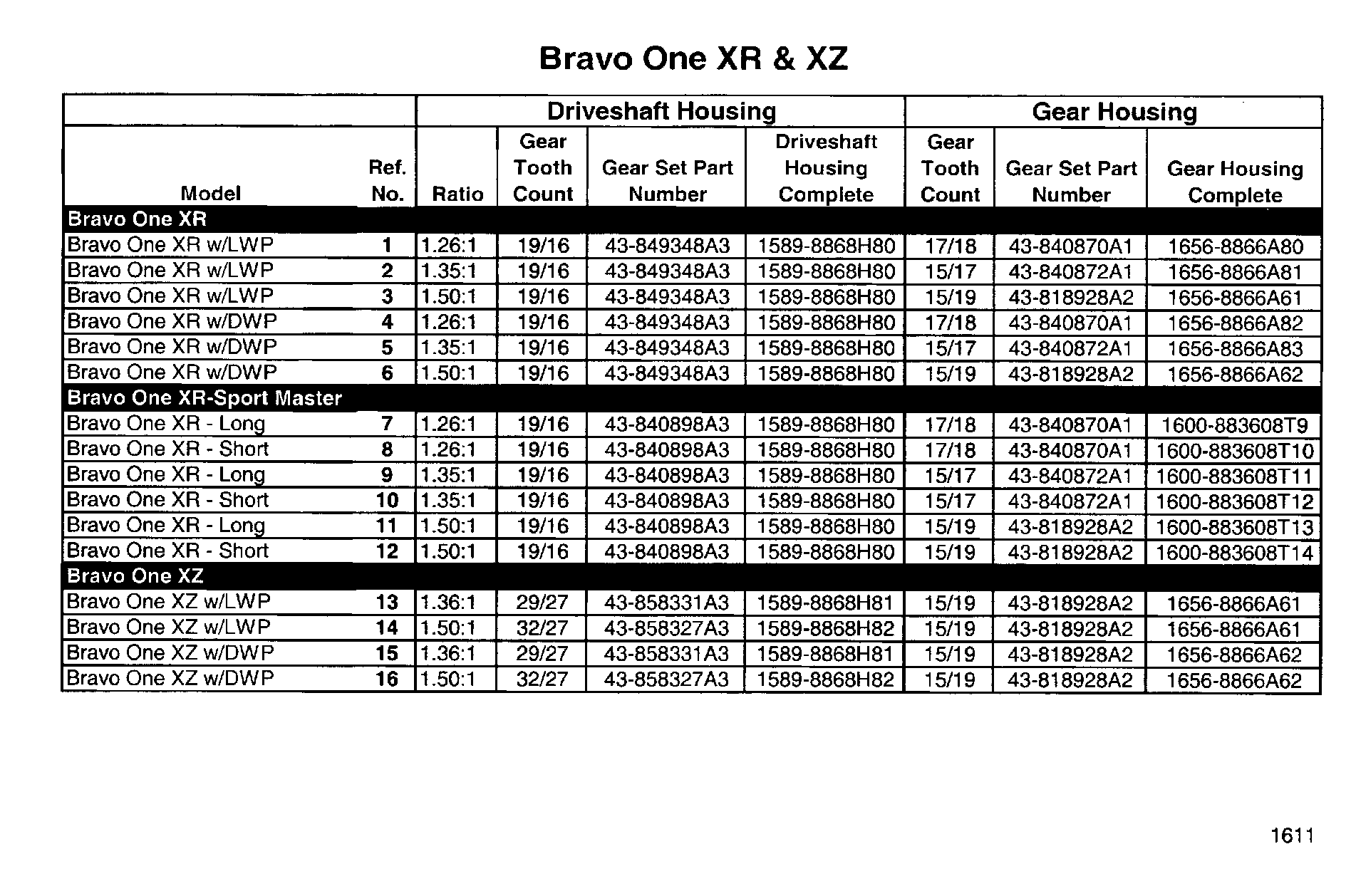

| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | NOT SOLD SEPARATE, BRAVO ONE XR | - | This Part is not sold separately | |||||
| 1 | 5-5E36800NZ | , Complete | 1 | This Part is No Longer Available (1.26:1 Ratio) | |||||
| 1 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 1 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 1 | 1656-8866A80 | GEAR HOUSING ASSEMBLY, (17/18), Complete | 1 | (With Low Water Pick-Up) | |||||
| 1 | 43-840870A1 | GEAR SET, (17/18) | 1 | ||||||
| 2 | 5-5E36900NZ | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR-with Low Water Pick-Up) (1.35:1 Ratio) | |||||
| 2 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complet | 1 | 1589-8868H80 | |||||
| 2 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 2 | 1656-8866A81 | GEAR HOUSING ASSEMBLY, (15/17), Complete | 1 | (With Low Water Pick-Up) | |||||
| 2 | 43-840872A1 | GEAR SET, (15/17) | 1 | ||||||
| 3 | 5-5E36200NZ | STERNDRIVE UNIT, Complete | 1 | (Bravo One XR, With Low Water Pick-Up) (1.50:1 Ratio) | |||||
| 3 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 3 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 3 | 1656-8866A61 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (With Low Water Pick-Up) | |||||
| 3 | 848928A2 | GEAR SET, (15/19) | 1 | ||||||
| 4 | 5-5E31800NZ | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR, With Dual Water Pick-Up) (1.26:1 Ratio) | |||||
| 4 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 4 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 4 | 1656-8866A82 | GEAR HOUSING ASSEMBLY, (17/18), Complete | 1 | (With Dual Water Pick-Up) | |||||
| 4 | 43-840870A1 | GEAR SET, (17/18) | 1 | ||||||
| 5 | 5-5E31900NZ | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR, With Dual Water Pick-Up) (1.35:1 Ratio) | |||||
| 5 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 5 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 5 | 1656-8866A83 | GEAR HOUSING ASSEMBLY, (15/17), Complete | 1 | (With Dual Water Pick-Up) | |||||
| 5 | 43-840872A1 | GEAR SET, (15/17) | 1 | ||||||
| 6 | 5-5E31200NZ | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR With Dual Water Pick-Up) (1.50:1 Ratio) | |||||
| 6 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 6 | 43-840898A3 | GEAR SET, (19/16) | 1 | 43-849348A3 | Includes all 3 gears | ||||
| 6 | 1656-8866A62 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (Dual Water Pick-Up) | |||||
| 6 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| - | NSS | NOT SOLD SEPARATE, BRAVO ONE XR | - | This Part is not sold separately (Sportmaster) | |||||
| 7 | 5-5F36800HH | STERNDRIVE, Complete | 1 | This Part is No Longer Available (Bravo One XR-Long) (1.26:1 Ratio) (Sportmaster) | |||||
| 7 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 7 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 7 | 1600-883608T49 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T9 | |||||
| 7 | 43-840870A1 | GEAR SET, (17/18) | 1 | ||||||
| 8 | 5-5G36800HH | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR-Short) (1.26:1 Ratio) (Sportmaster) | |||||
| 8 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 8 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 8 | 1600-883608T50 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T10 | |||||
| 8 | 43-840870A1 | GEAR SET, (17/18) | 1 | ||||||
| 9 | 5-5F36900HH | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR-Long) (1.35:1 Ratio) (Sportmaster) | |||||
| 9 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 9 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 9 | 1600-883608T51 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T11 | |||||
| 9 | 43-840872A1 | GEAR SET, (15/17) | 1 | ||||||
| 10 | 5-5G36900HH | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR -Short) (1.35:1 Ratio) (Sportmaster) | |||||
| 10 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 10 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 10 | 1600-883608T52 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T12 | |||||
| 10 | 43-840872A1 | GEAR SET, (15/17) | 1 | ||||||
| 11 | 5-5F36200HH | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR-Long) (1.50:1 Ratio) (Sportmaster) | |||||
| 11 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 11 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 11 | 1600-883608T53 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T13 | |||||
| 11 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| 12 | 5-5G36200HH | STERNDRIVE UNIT, Complete | 1 | This Part is No Longer Available (Bravo One XR-Short) (1.50:1 Ratio) (Sportmaster) | |||||
| 12 | 1589-863836A56 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H80 | |||||
| 12 | 43-840898A3 | GEAR SET, (16/19) | 1 | Includes all 3 gears | |||||
| 12 | 1600-883608T54 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1600-883608T14 | |||||
| 12 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| - | NSS | NOT SOLD SEPARATE, BRAVO ONE XZ | - | This Part is not sold separately | |||||
| 13 | 5-5D36100PP | STERNDRIVE UNIT, Complete | 1 | 5D36100NP | This Part is No Longer Available (Bravo One XZ, With Low Water Pick-Up (1.36:1 Ratio) | ||||
| 13 | 1589-863836A66 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H81 | |||||
| 13 | 43-887906A1 | GEAR SET, (29/27) | 1 | 43-858331A3 | |||||
| 13 | 1656-8866A61 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (With Low Water Pick-Up) | |||||
| 13 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| 14 | 5-5D36200PP | STERNDRIVE UNIT, Complete | 1 | 5D36200NP | This Part is No Longer Available (Bravo One XZ, With Low Water Pick-Up (1.50:1 Ratio) | ||||
| 14 | 1589-863836A67 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H82 | |||||
| 14 | 43-887903A1 | GEAR SET, (32/27) | 1 | 43-858327A3 | |||||
| 14 | 1656-8866A61 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (With Low Water Pick-Up) | |||||
| 14 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| 15 | 5-5D31100PP | STERNDRIVE UNIT, Complete | 1 | 5D31100NZ | This Part is No Longer Available (Bravo One XZ, With Dual Water Pick-Up) (1.36:1 Ratio) | ||||
| 15 | 1589-863836A66 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H81 | |||||
| 15 | 43-887906A1 | GEAR SET, (29/27) | 1 | 43-858331A3 | |||||
| 15 | 1656-8866A62 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (With Dual Water Pick-Up) | |||||
| 15 | 43-818928A2 | GEAR SET, (15/19) | 1 | ||||||
| 16 | 5-5D31200PP | STERNDRIVE UNIT, Complete | 1 | 5D31200NZ | This Part is No Longer Available (Bravo One XZ-with Dual Water Pick-Up) (1.50:1 Ratio) | ||||
| 16 | 1589-863836A67 | HOUSING ASSEMBLY, Driveshaft, Complete | 1 | 1589-8868H82 | |||||
| 16 | 43-887903A1 | GEAR SET, (32/27) | 1 | 43-858327A3 | |||||
| 16 | 1656-8866A62 | GEAR HOUSING ASSEMBLY, (15/19), Complete | 1 | (With Dual Water Pick-Up) | |||||
| 16 | 43-818928A2 | GEAR SET, (15/19) | 1 |
