Bravo XR One - Serial 0L914990 Thru 0W239999 - Mercathode Kit

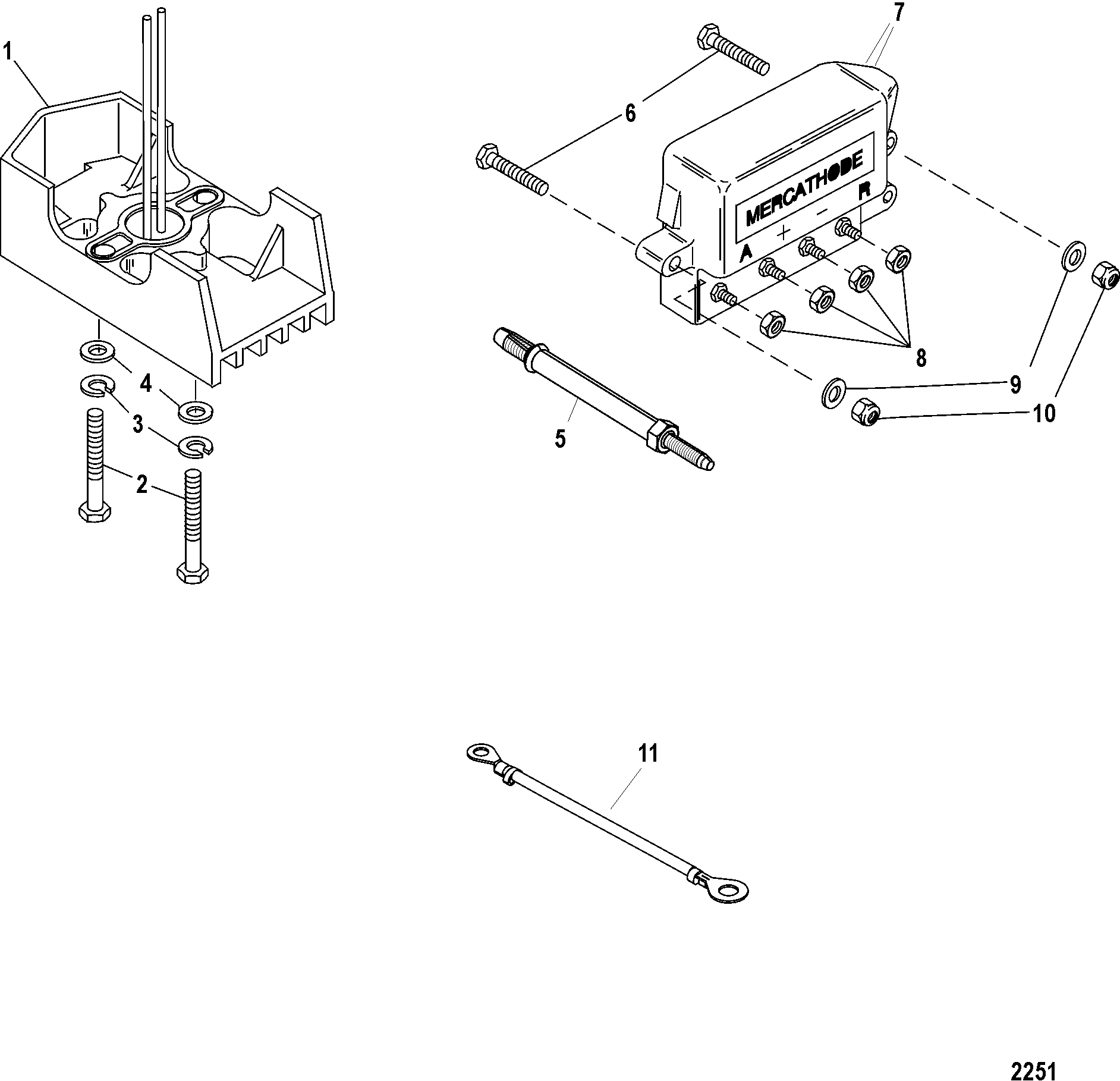

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 98869A17



ELECTRODE ASSEMBLY 1 98869A11
2 10-86885



SCREW, (.250-20 x 1.500) Stainless Steel 2

3 13-26992



LOCKWASHER, (.250) Stainless Steel 2

4 12-29245

700-21490
WASHER, (.281 x .500 x .060) Stainless Steel 2

5 16-805459



STUD, Mercathode Mounting 1

6 10-72202

700-22312
SCREW, (#10-32 x 1.25) 1

6 10-45862



SCREW, (#10-32 x .875) 1

7 42600A09



CONTROLLER ASSEMBLY 1 42600A3
8 11-68219



NUT, (#10-32) Stainless Steel 4

9 12-21273



WASHER 2

10 11-46438



NUT, (#10-32) 2

11 84-88543A3



CABLE ASSEMBLY 1

NS 44574T



CAP 2 44574
