Bravo XR One - Serial 0L914990 Thru 0W239999 - Gimbal Ring And Steering Lever

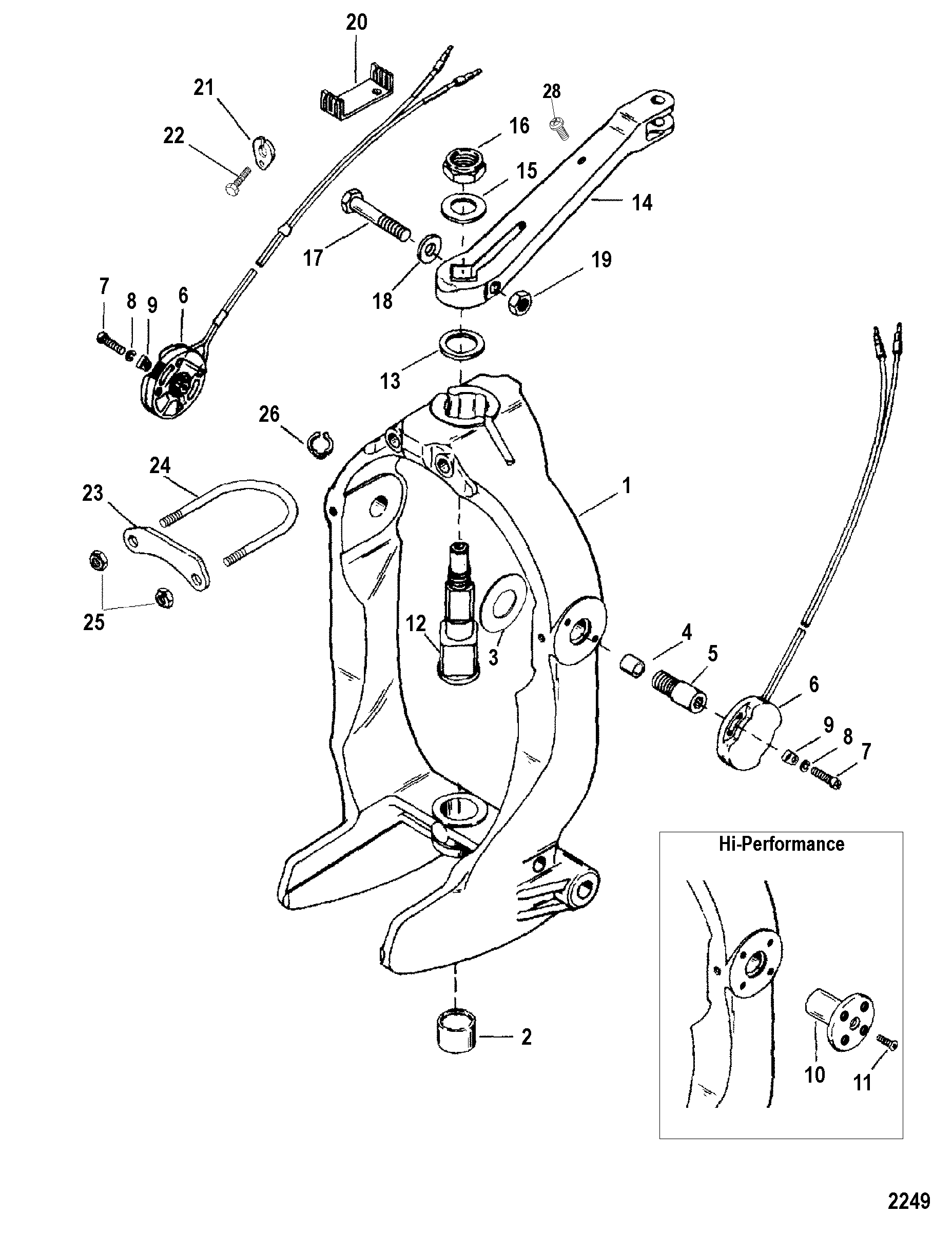

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing (Integrated And Hi Performance Transom)
- Bell Housing (Magnum Series Transom)
- Continuity Kit
- Drive Shaft Housing And Drive Gears (XR-XZ-Drive)
- Gear Housing (Bravo One XR Sportmaster)
- Gear Housing (Bravo One XR-XZ)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Housing(Integrated Transom)
- Gimbal Ring And Steering Lever
- Gimbal Ring(Integrated Transom)
- Mercathode Kit
- Mercathode Kit(Integrated Transom)
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mount Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mount Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Special Tools-Drive Shaft Housing
- Special Tools-Gear Housing (Bravo One)
- Special Tools-Transom
- Steering Cylinder (Integrated Transom)
- Sterndrive Unit Chart (Gasoline) BravoI (XR And XZ)
- Sterndrive Unit Chart (Integrated) Bravo I (XR And XZ)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint And Shifter Components (XR-XZ-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 822374A17 | GIMBAL RING ASSEMBLY | 1 | 822374A3 | (Hi Performance) (With Or Without Trim Sender) | ||||
| 2 | 23-847638 | BUSHING | 1 | ||||||
| 3 | 12-41721 | WASHER | 2 | ||||||
| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 1 | 822374A4 | (Magnum) (With Trim Sender) | ||||
| 2 | 23-847638 | BUSHING | 1 | ||||||
| 3 | 12-41721 | WASHER | 2 | ||||||
| 4 | 23-847637 | BUSHING | 2 | ||||||
| 5 | 10-86801 | SCREW, Hinge Pin | 2 | (Magnum) (With Trim Sender) | |||||
| 6 | 805320A03 | SWITCH ASSEMBLY, Trim Sender/Trim Limit | 1 | 805320A1 | (Magnum) (With Trim Sender) | ||||
| NS | 805134A4 | ROTOR KIT, Trim Sender | AR | (For Use With Magnum Trim Sender) | |||||
| 7 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel | 4 | (Magnum) (With Trim Sender) | |||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | (Magnum) (With Trim Sender) | |||||
| 9 | 57008 | RETAINER | 4 | (Magnum) (With Trim Sender) | |||||
| 10 | 821997 | PIN, Hinge | 2 | (Hi Performance) SN# 0M501067 & Below | |||||
| 10 | 8219971 | PIN, Hinge | 2 | (Hi Performance) SN# 0M501068 & Up | |||||
| 11 | 10-821579 | SCREW, (#10-24 x .500) | 4 | (Hi Performance) SN# 0M501067 & Below | |||||
| 11 | 10-840907 | SCREW, (.250-20 x .750) | 8 | (Hi Performance) SN# 0M501068 & Up | |||||
| 12 | 98230A1 | SHAFT ASSEMBLY, Upper Swivel | 1 | ||||||
| 13 | 12-98548 | WASHER, (1.125 ) | 1 | ||||||
| 14 | 866322A01 | LEVER ASSEMBLY, Steering | 1 | 98262A1 | |||||
| 15 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 16 | 11-8M2014641 | NUT, (.750-16) | 1 | 11-82671323 | |||||
| 17 | 10-807204 | SCREW, (.437-20 x 2.00) | 1 | ||||||
| 18 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 1 | ||||||
| 19 | 11-8M2008293 | NUT, (.437-20) | 1 | 11-98533 | |||||
| 20 | 79146 | RETAINER | 1 | ||||||
| 21 | 54-12078 | CLAMP | 1 | ||||||
| 22 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 23 | 816510T | BRACKET | 1 | ||||||
| 24 | 10-805164 | U BOLT | 1 | ||||||
| 25 | 11-862903 | NUT, (.375-24) | 2 | ||||||
| 26 | 54-818557 | CLAMP | 1 | ||||||
| 28 | 10-45742 | SCREW, (.190-32 x .312) | 1 | ||||||
| 28 | 10-807754 | SCREW, (#10-24 x .38) | 1 | ||||||
| NS | 805130A6 | SENDER KIT, Dual Station | 1 |
