5.7LX Bravo EFI (Gen +) GM 350 V-8 1996 - Serial 0F800300 Thru 0K001508 - Starter Motor

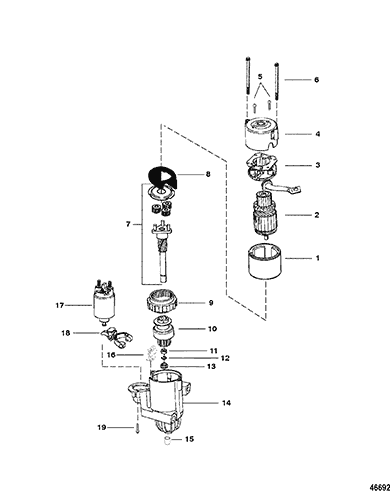

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 50-863007A1       602-10099HD STARTER MOTOR ASSEMBLY 1 50-806964A3
2 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
3 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
4 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
5 NSS         NOT SOLD SEPARATE 2
This Part is not sold separately  1
6 NSS         NOT SOLD SEPARATE 2
This Part is not sold separately  1
7 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
8 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
9 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
10 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
11 33291         COLLAR 1

12 53-33290         RING, Retaining 1

13 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
14 809459         HOUSING 1   This Part is No Longer Available
15 23-814476         BUSHING 1   This Part is No Longer Available
16 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
17 809463A1   676-9-15125 700-72450   SOLENOID KIT 1

18 NSS         NOT SOLD SEPARATE 1
This Part is not sold separately  1
19 NSS         NOT SOLD SEPARATE 3
This Part is not sold separately  1
