5.7LX Bravo EFI (Gen +) GM 350 V-8 1996 - Serial 0F800300 Thru 0K001508 - Cylinder Head And Rocker Cover

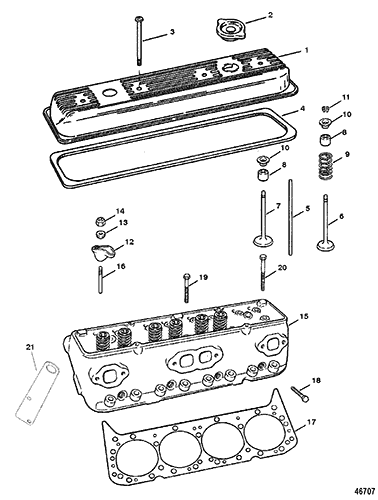

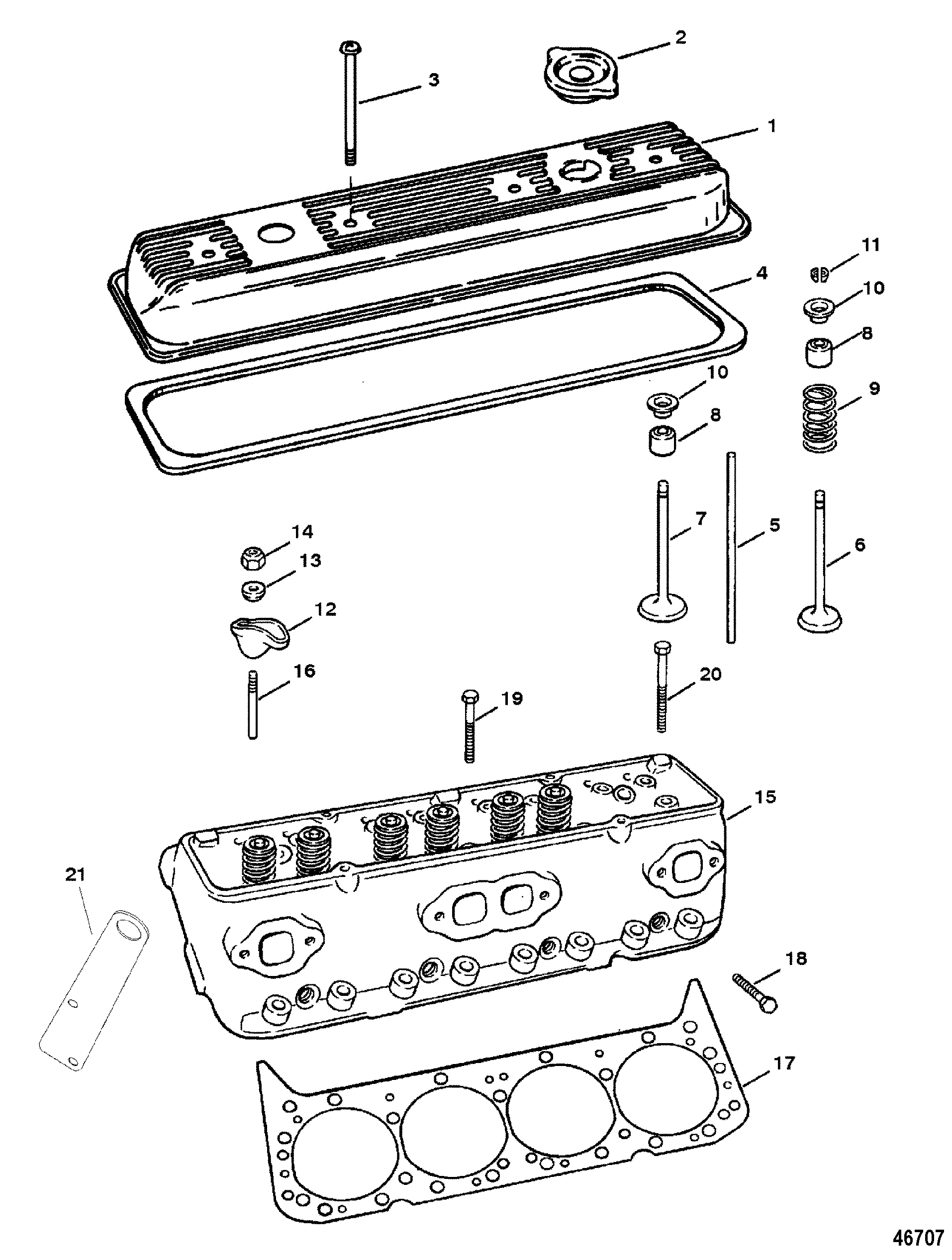

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         COVER, Rocker 1
(STARBOARD)
1 809996         COVER, Rocker 1
(PORT)
2 36-18710002         CAP, Oil Fill 1 36-187101
3 10-17344         SCREW 8

4 27-17467   676-9-61305 700-30357   GASKET, Rocker Cover 2
3
5 173391         PUSH ROD 16

6 8243171         VALVE, Exhaust 8
(STANDARD)
6 8243181         VALVE, Exhaust AR
(.5MM O.S.) 2
7 809992         VALVE, Intake 8
(STANDARD)
8 26-976641         SEAL 16
3
9 24-483471         SPRING 16

10 483481         CAP 16

11 28-547971         KEY 32

12 35329         ARM KIT, Rocker 16

13 35331         BALL, Rocker Arm 16

14 11-34516         NUT 16

15 938-803860T         CYLINDER HEAD ASSEMBLY 2 938-97181
16 16-34522         STUD AR
(.003 O.S.) 2
16 16-34521         STUD AR   This Part is No Longer Available (.013 O.S.) 2
17 75611001         GASKET 2 27-75611 3
18 10-11968         SCREW, (.437-14 x 1.750) (1-3/4") 16

19 10-119671         SCREW, (.437-14 x 3.00) (3") 4

20 10-11966         SCREW, (.437-14 x 3.750) (3-3/4") 14

21 806815T         BRACKET, Lifting Eye 1   This Part is No Longer Available
- 27-75611A96         GASKET SET 1
