5.7LX Bravo EFI (Gen +) GM 350 V-8 1996 - Serial 0F800300 Thru 0K001508 - Flywheel Housing

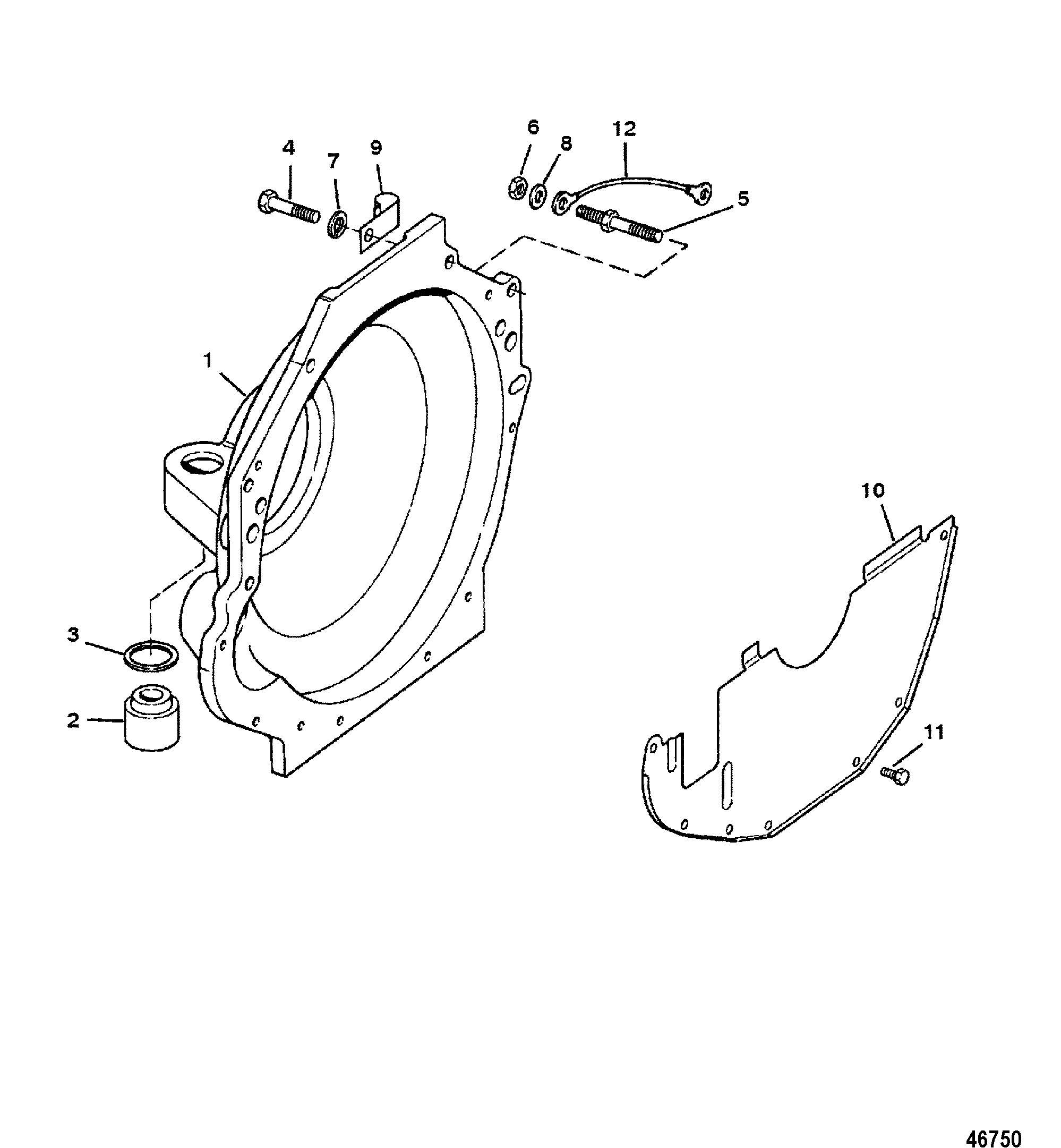

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04



HOUSING ASSEMBLY, Flywheel 1 12675A7
2 865329A02



MOUNT ASSEMBLY, Rubber 2 99297A1
3 23-99322



SPACER 2

4 10-37612



SCREW, (.375-16 x 1.250) (1-1/4") 4

4 10-358701



SCREW, (.375-16 x 2.00) (2") 2

5 16-64066



STUD, (.375-16 x 2.750) Special 2

6 11-32219



NUT, (.375-16) 2

7 13-35048



LOCKWASHER, (.375) 7

8 12-20572



WASHER, (.390 x .750 x .093) 1

9 54-78945



J CLAMP, Harness Support 1

9 54-92850



CLAMP 2

10 807260A2



COVER 1 818719A1
11 10-32773



SCREW, (.250-20 x .875) 7

12 84-62826A6



CABLE ASSEMBLY, Ground (13.00 Inches) Black 1
