5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Intake Manifold And Front Cover

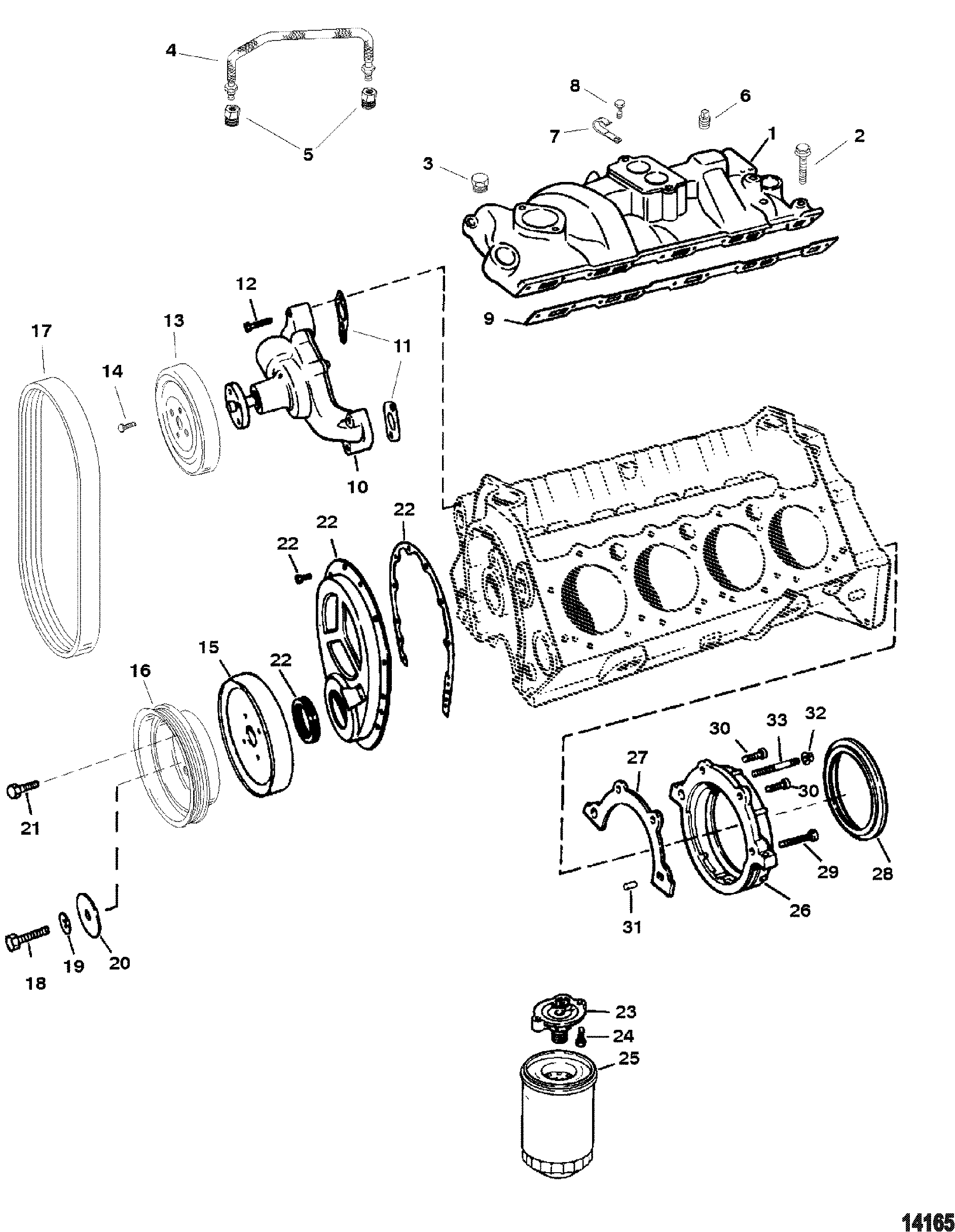

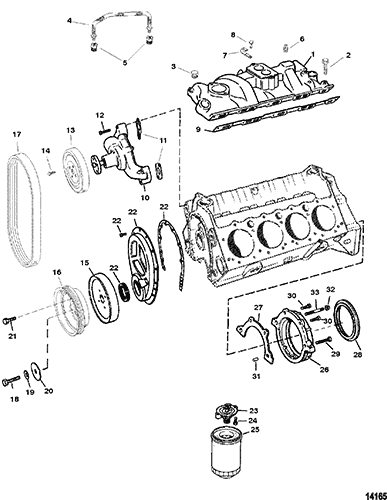

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860100A2



MANIFOLD ASSEMBLY, Intake 1

2 10-808010



SCREW, (.312-18 x 1.375) 8

3 22-860075



PLUG, Pipe (.500-14) 3

4 32-865100A01



TUBE 1 32-861213
5 22-805563



CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF To .50 Inch Inv. Flare) 2

6 22-48358T



PLUG, (.375) 1 22-48358
7 54-73668



J-CLIP 2

8 10-86750



SCREW, (.312-18 x .620) 2

9 27-807473A1
676-9-61213

GASKET SET 1
2,4
10 8503991



PUMP ASSEMBLY, Water 1
4
11 27-34897
676-9-60065 700-31380
GASKET 2
2
12 10-32132



SCREW, (.375-16 x 1.750) 1
4
12 10-47688



SCREW, (.375-16 x 2.750) 1
4
12 16-35342



STUD, (.312-24/.375-16 x 2.5625) 2
4
13 807729T



PULLEY 1

14 10-47277



SCREW, (.312-24 x .750) 4

15 852946001



BALANCER, Harmonic 1 852946 4
16 807730T



PULLEY 1

17 57-861758A1



BELT, Serpentine 1
(Standard Cooling) (Alpha) (Pully Kits. Refer To Parts Bulletin 98-1.)
17 57-861757A1



BELT, Serpentine 1
(Standard Cooling) (Bravo) (Pully Kits. Refer To Parts Bulletin 98-1.)
17 57-861049A1



BELT, Serpentine 1
(Closed Cooling) (Pully Kits. Refer To Parts Bulletin 98-1.)
17 57-861758



BELT, Serpentine 1
(Standard Cooling) (Alpha) (Belt Only. Use With Metal Power Steering Pulley.) No longer made, limited availability 1
17 57-807755Q05



BELT, Serpentine 1 57-8077555 (Standard Cooling) (Compact Steering) (Alpha) (Belt Only. Use With Metal Power Steering Pulley.) 1
17 57-861757



BELT, Serpentine 1
(Standard Cooling) (Bravo) (Belt Only. Use With Metal Power Steering Pulley.) 1
17 57-861049Q



BELT, Serpentine 1 57-861049 (Closed Cooling) (Belt Only. Use With Metal Power Steering Pulley.) 1
18 10-32515



SCREW, (.437-20 x 2.50) 1
4
19 13-39131



LOCKWASHER, (.437) 1
4
20 35332001



WASHER 1 12-35332 4
21 10-34352



SCREW, (.375-24 x .875) 3

22 835005



COVER ASSEMBLY, Timing 1
(Screws-Grommets-Oil Seal And Gasket Are Not Sold Separately.) 4
23 71920



VALVE ASSEMBLY, Filter 1 53338 (With Out Remote Oil Filter) 4
24 10-54786



SCREW, (.312-18 x 1.250) 2
(With Out Remote Oil Filter)
25 35-866340Q03



FILTER, Oil 1 35-802885Q (With Out Remote Oil Filter) 4
26 852940



HOUSING ASSEMBLY, With Studs 1
4
27 27-881715



GASKET 1
2,4
28 26-852941



SEAL, Oil (Rear) 1
2,4
29 10-8M0064241



BOLT, (.250-20 x 1.750) 1 10-14243 4
30 10-14242



BOLT, (.250-20 x .875) 2
4
31 17-14263



PIN, Dowel 1
4
32 11-8167301



NUT, (.250-20) 1 11-816730 4
33 16-14827



STUD, (.250-20 x 2.180) 1
4
- 27-861246A05



GASKET SET 1 27-861246A98
