5.7L EFI GM 350 V-8 1999-2001 - Serial 0L325977 Thru 0M299999 - Exhaust System

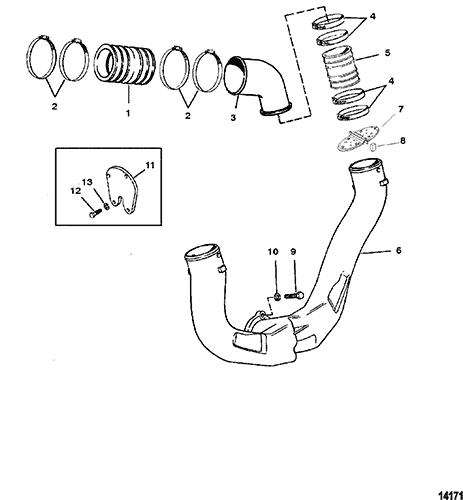

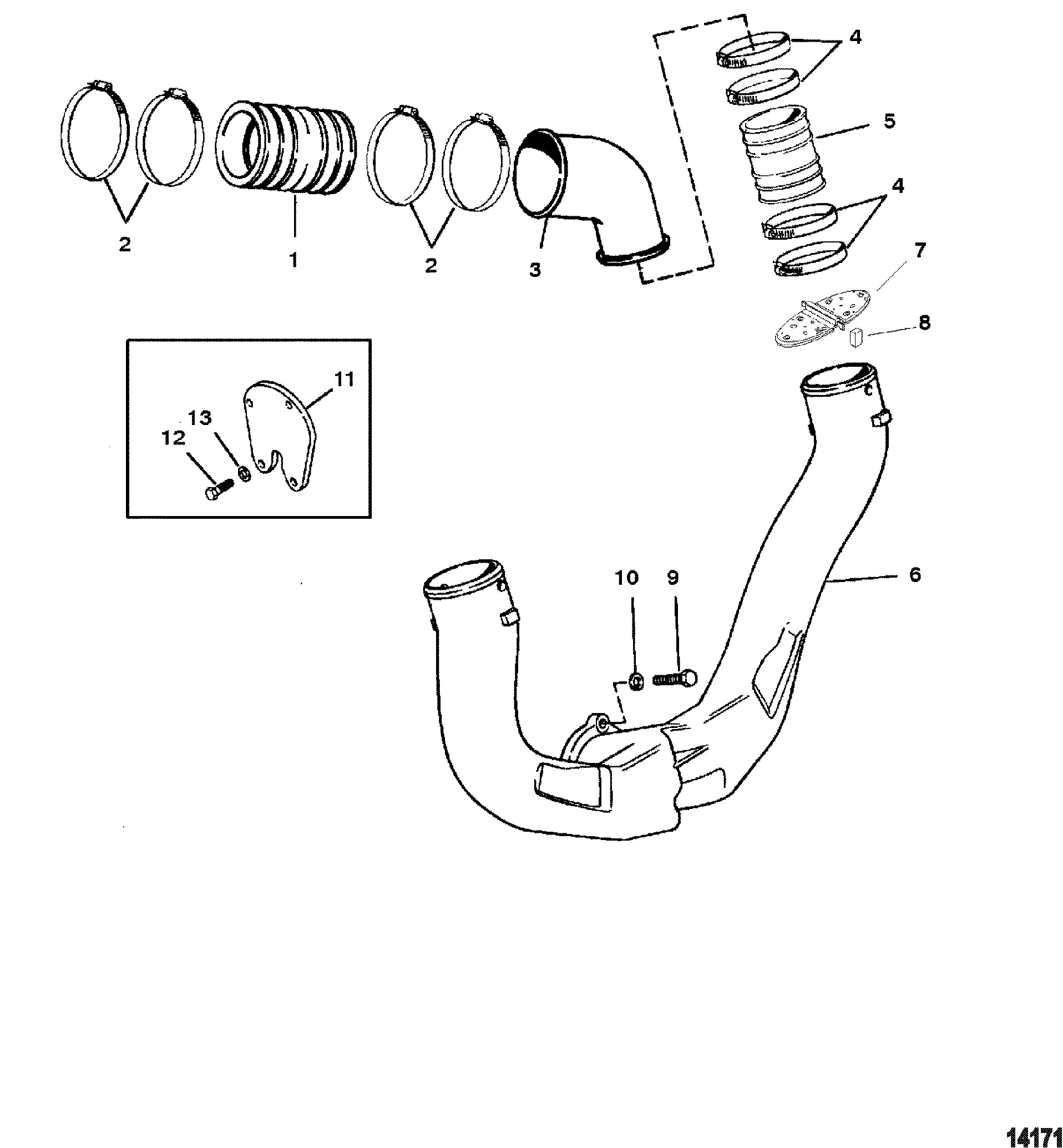

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-44348001



TUBE 2 32-44348T (Standard)
2 54-815504272



CLAMP, Worm Gear 8

3 11086T



ELBOW, Port 1
(With Out Risers)
3 14343T



ELBOW, Starrbard 1
(With Out Risers)
3 14801A1



ELBOW KIT, Use With 3.00 Inch And 6.00 Inch Risers Kits) 1

4 54-815504272



CLAMP, Worm Gear 8

5 32-14358001



TUBE 2 32-14358T
6 807130A4



PIPE 1

7 807166A1



SHUTTER ASSEMBLY, Water 2

8 25-807167



GROMMET 4

9 10-58640



SCREW, (.375-16 x 1.25) 4

10 13-41471



LOCKWASHER, (.375) 4

NS 19-8079923



COVER, Hose Clamp End AR

11 861776A2



PLATE KIT 1
(Thru Transom)
12 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4
(Thru Transom)
13 13-41471



LOCKWASHER, (.375) 4
(Thru Transom)
