350 Mag MPI Alpha-Bravo - Serial 1A300000 Thru 1A611927 - Water Drain, Air Manifold and Pump

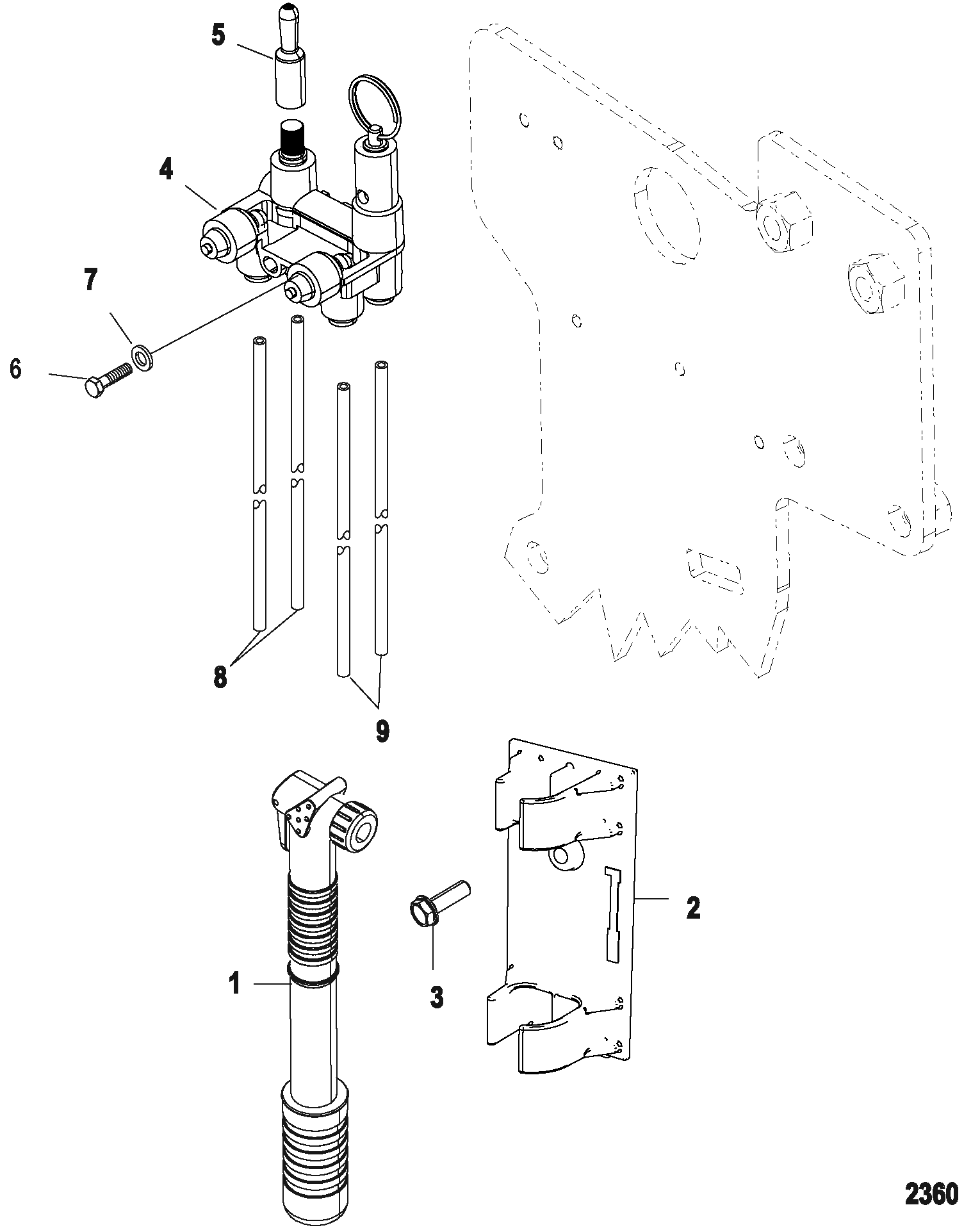

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-863057 PUMP Bracket Assembly   1
2 0000 OEM: 525-8634741 BRACKET Air Pump (Bravo Standard Cooling) 1
2 0000 OEM: 525-8634742 BRACKET Air Pump (Bravo Closed Cooling) 1
3 0010 OEM: 525-10-40011106 SCREW (M5 x 13) Stainless Steel (Bravo Standard Cooling) 1
4 0000 OEM: 525-863053T MANIFOLD ASSEMBLY Air   1
5 0019 OEM: 525-19-883503 CAP Service Point   1
6 0010 OEM: 525-10-40007112 SCREW (M5 x 40)   2
7 0012 OEM: 525-12-4002314 WASHER   2
8 0032 8630552 HOSE (40.00 Inches Bulk) Green (Cut to 32 Inch Length)   2
9 0032 8630542 HOSE (40.00 Inches Bulk) Grey (Cut to 32 Inch Lenght)   2
NS 0032 OEM: 525-32-8630561 HOSE (42.00 Inches Bulk) Black (Cut to 28 Inch Length)   2
