350 Mag MPI Alpha-Bravo - Serial 0W310000 Thru 0W649999 - Sea Water Pump Assembly

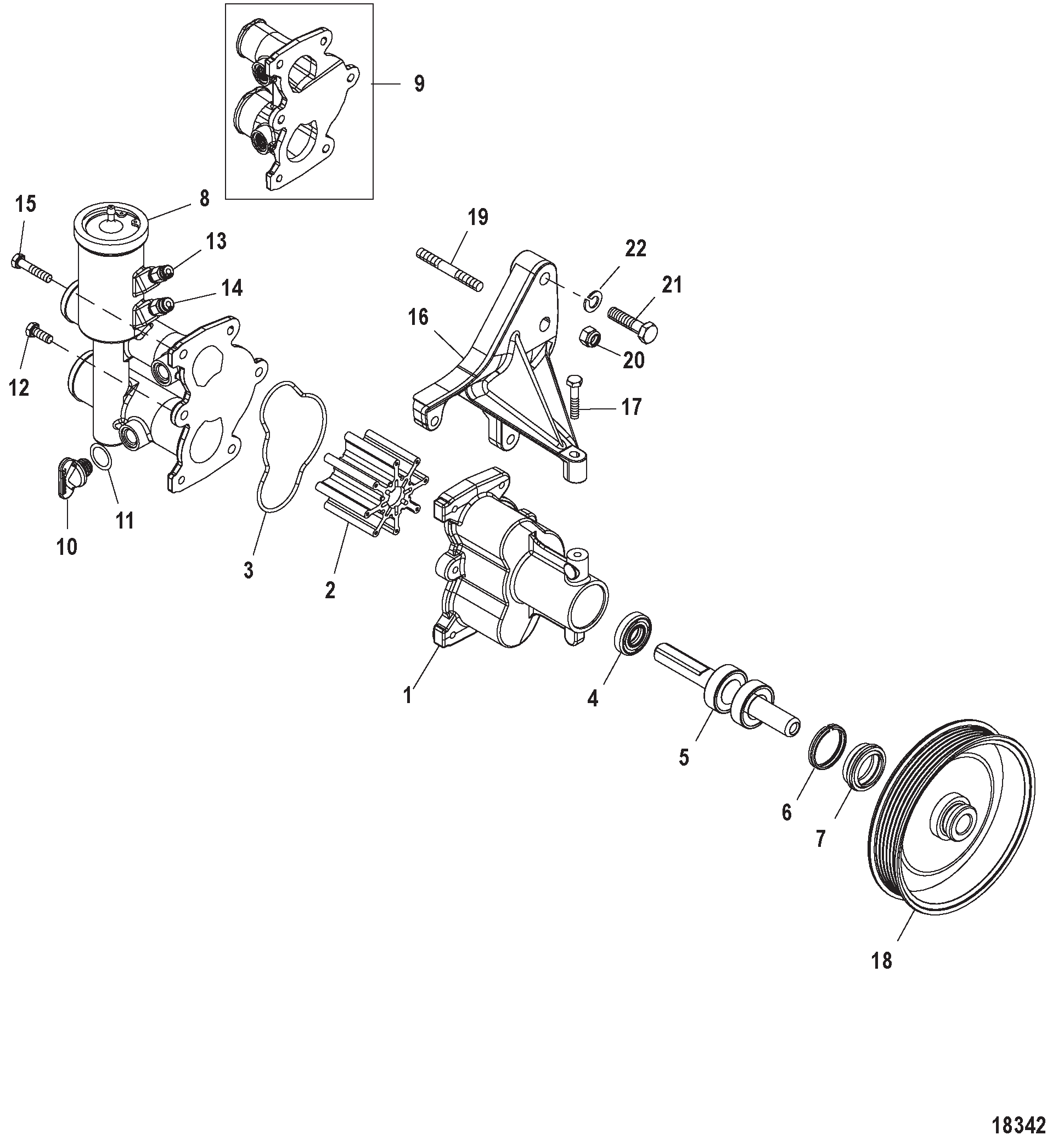

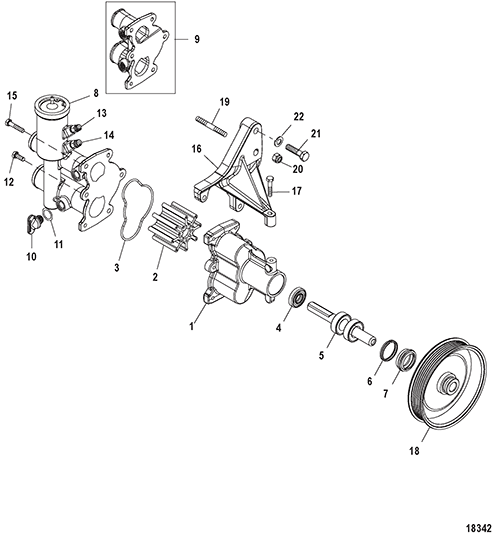

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 46-862914T10


625-4102 PUMP KIT, Sea Water 1
(Without Air Fittings)
- 46-862914T11


625-4102 PUMP KIT, Sea Water 1
(With Air Fittings)
1 46-862914A13



HOUSING ASSEMBLY, Impeller 1

2 47-862232A2
676-9-45310 700-89700
IMPELLER 1

3 25-841807



O-RING, (3.500 x .103) (Also included with Reference 8 and 9) 1

4 26-8M2001645



SEAL, Oil 1 26-862037
5 8M0050018



DRIVESHAFT ASSEMBLY 1 862235A1
6 862039



TOLERANCE RING 1

7 26-862040



SEAL, Lip 1

8 863674A05



COVER KIT, Impeller Housing 1
(With Air Fittings)
9 862776A01



COVER KIT, Impeller Housing 1
(Without Air Fittings)
10 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
11 25-32509



O-RING, (.489 x .070) 2

12 10-4000328



SCREW, (M6 x 16) 6

13 22-863718



FITTING, Gray - Straight, Male Air 1
(.1562)(Component of 46-862914T11)
14 22-863719



FITTING, Orange - Straight, Male Air 1
(.1875)(Component of 46-862914T11)
15 10-4000331



SCREW, (M6 x 30) 2

16 865143T



BRACKET, Sea Water Pump 1
17 10-4000331



SCREW, (M6 x 30) 1
18 862351T



PULLEY 1
19 16-863853



STUD 2
20 11-82671112



NUT, (.375-16) 2
21 10-32132



SCREW, (.375-16 x 1.750) 1
22 13-35048

700-21495
LOCKWASHER, (.375) 1
