454 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L058400 Thru 0M024999 - Electrical Components

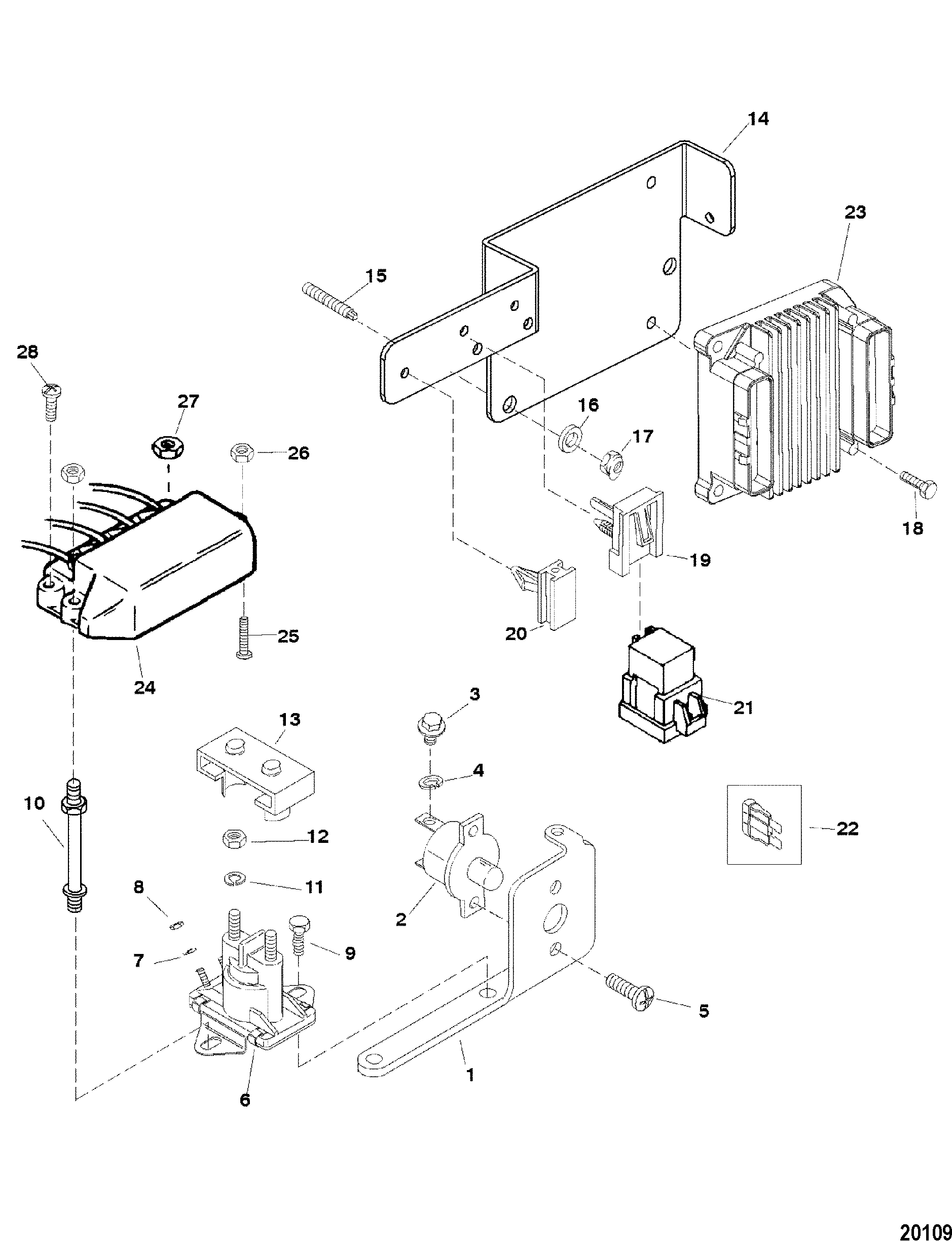

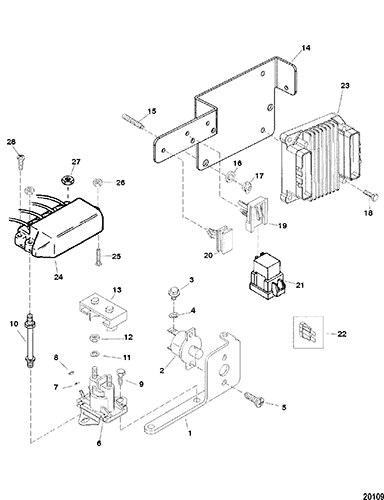

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Bracket
- Alternator(Mando)
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 899719T01 | BRACKET, Electrical | 1 | 805368T | |||||
| 2 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-806950 | |||||
| 3 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 4 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 5 | 10-57583 | SCREW, (#8-32 x .375) | 2 | ||||||
| 6 | 89-96158T | 602-SW101 | SOLENOID | 1 | |||||
| 7 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 8 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 9 | 10-805564 | SCREW, (.250-20 x .750) | 2 | ||||||
| 10 | 16-805459 | STUD, Mercathode Mounting | 1 | ||||||
| 11 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 12 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 13 | 85-97861 | INSULATOR | 1 | ||||||
| 14 | 861714T | BRACKET, ECU Mounting | 1 | ||||||
| 15 | 10-24323 | SET SCREW, (.250-20 x 1.25) | 1 | ||||||
| 16 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 17 | 11-64015 | NUT, (.250-20) | 3 | ||||||
| 18 | 10-28636 | 602-98-102-13 | SCREW, (.250-20 x .750) | 3 | |||||
| 19 | 86-865205 | CLIP | 2 | 54-804351 | 7 | ||||
| 20 | 54-804352 | CLIP | 1 | 7 | |||||
| 21 | 86-865202T | RELAY | 2 | 807057T | 7 | ||||
| 22 | 88-83296910 | FUSE, Red - 10 Ampere | 2 | 88-804638 | 7 | ||||
| 22 | 88-83296915 | FUSE, Mini - Blue - 15 Ampere | 1 | 7 | |||||
| 23 | 891896A01 | ECM, Engine Control Module | 1 | 861721T2 | (454) | ||||
| 23 | 895104A01 | ECM, Engine Control Module | 1 | 861722T2 | (502) | ||||
| 24 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 25 | 10-805565 | SCREW, (#10-32 x .750) | 1 | ||||||
| 26 | 11-46438 | NUT, (#10-32) | 2 | ||||||
| 27 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 28 | 10-62568 | SCREW, (#10-16 x .375) | 1 |
