4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - SHIFT BRACKET (USE WITH ALPHA ENGINES)

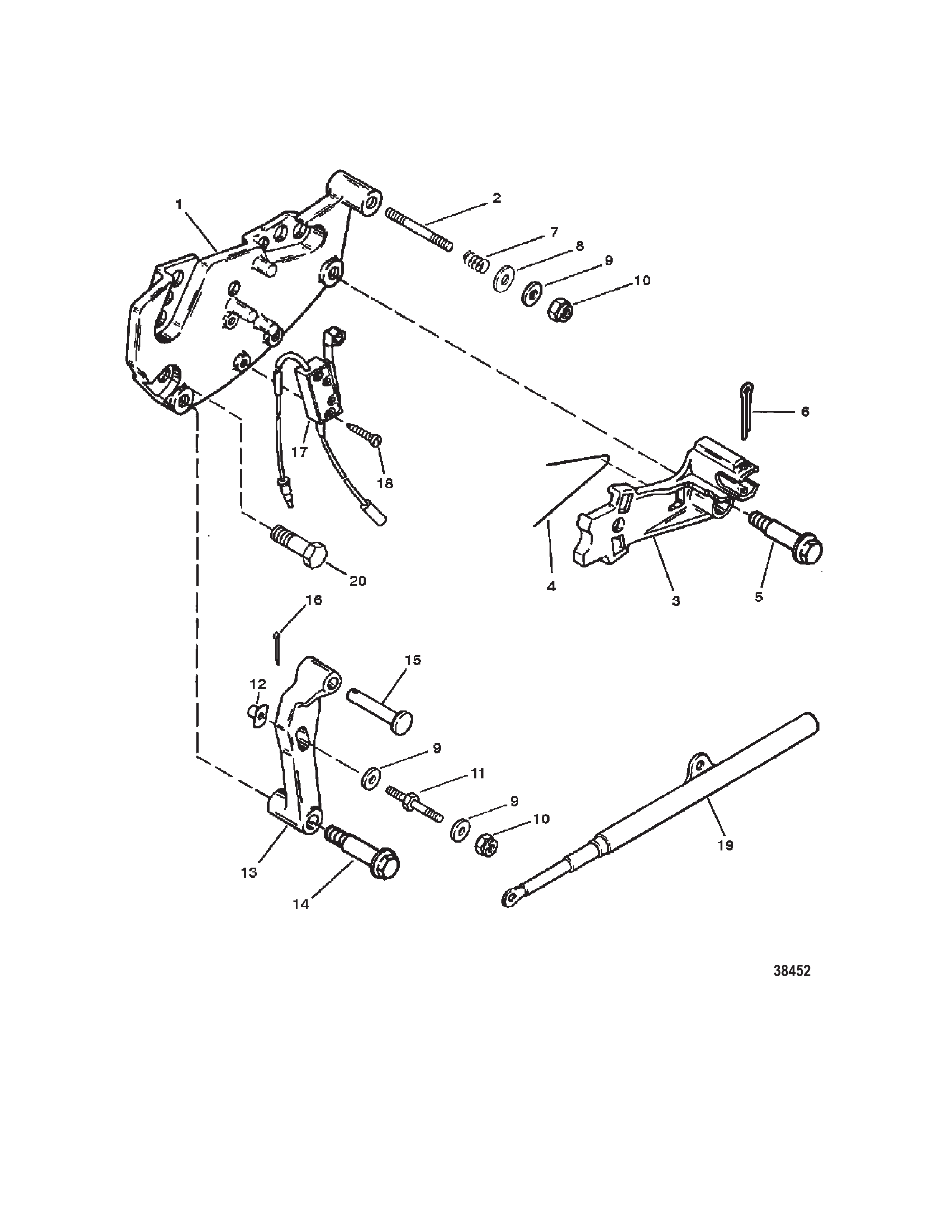

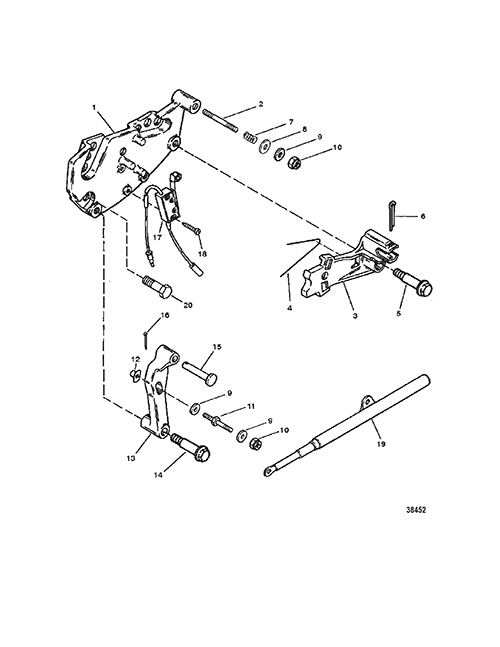

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 807962A3 BRACKET ASSEMBLY Shift   1 [1]
2 0016 8140021 STUD (.250 x 2.870)   2
3 0000 13051A4 LEVER ASSEMBLY Actuating   1
4 0024 45599 SPRING   1
5 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
6 0018 32857 COTTER PIN   1
7 0024 OEM: 525-24-98880 SPRING   1
8 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel   1
9 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   3
10 0011 13438 NUT (.250-28)   2
11 0016 96112 STUD (.250-28 x 2.00) Throttle Cable Anchor   1
12 0011 OEM: 525-11-63341 TEE NUT   1
13 0000 13898A3 LEVER ASSEMBLY Shift   1
14 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
15 0017 OEM: 525-17-814001 PIN Clevis   1
16 0018 21071 COTTER PIN   1
17 0087 19752A6 SWITCH ASSEMBLY Cut Out (SB 2002-01) 1
18 0010 30902 SCREW (#6-32 x .750)   2
19 0000 OEM: 525-813995A1 GUIDE ASSEMBLY Spring   1
20 0010 OEM: 525-10-657461 SCREW AND LOCKWASHER (.250- 20 x .625)   3

PART NOTES:

[1] - SUPERSEDES TO ANOTHER PART NUMBER
