4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - CARBURETOR (WEBER)

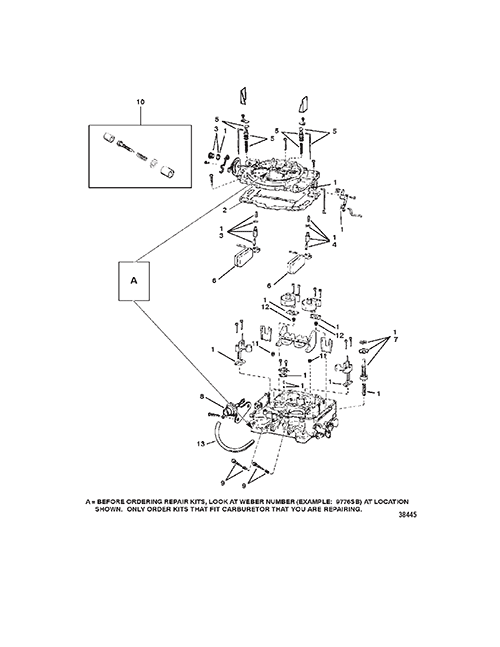

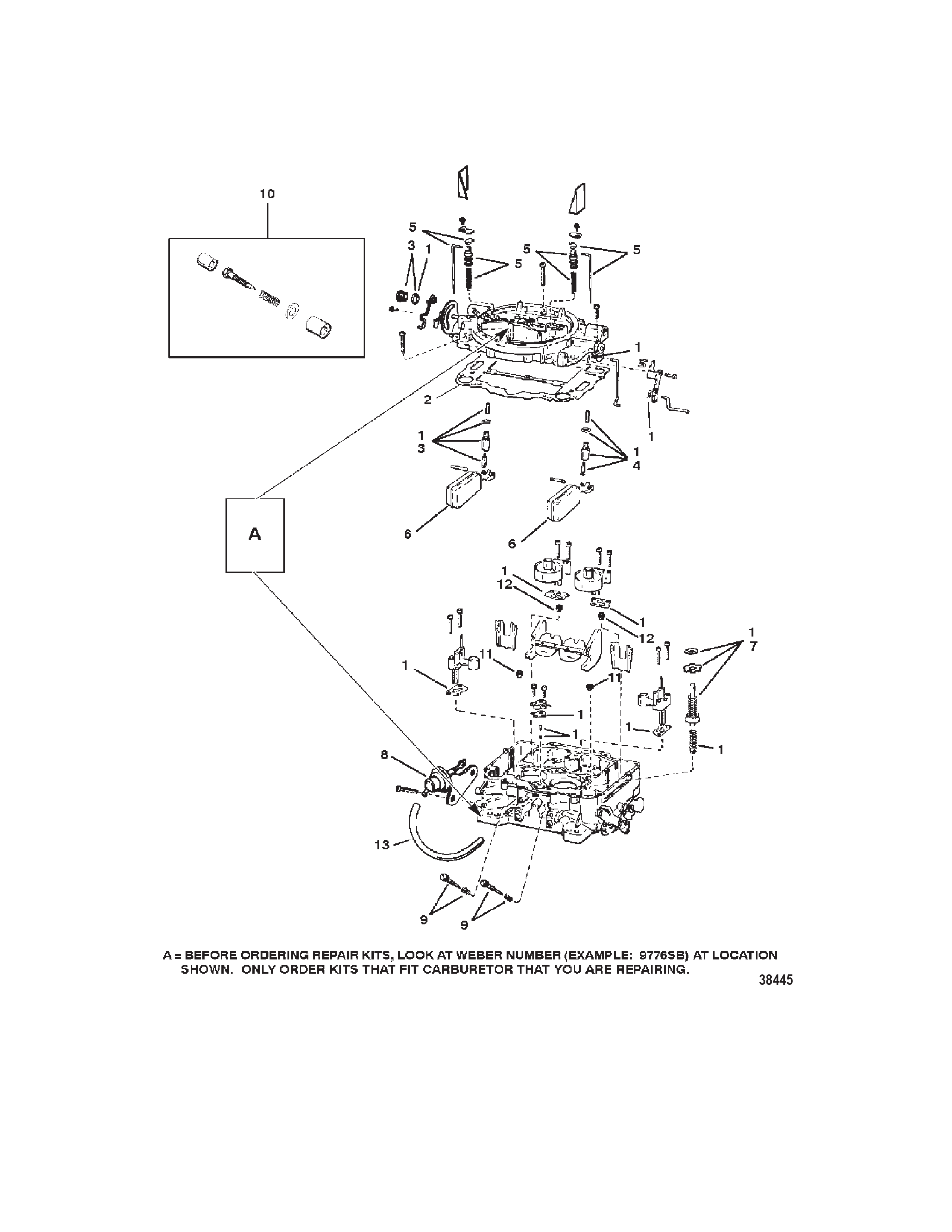

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 823728 OVERHAUL KIT (9600) 1
1 0000 809071 OVERHAUL KIT (9662)-SWISS EMISSIONS (BSO1 & SAV1) 1
2 0027 OEM: 525-27-809077 GASKET   1
3 0000 OEM: 525-811533 FITTING KIT Inlet   1
4 0000 OEM: 525-823727, GLM: 700-40780 NEEDLE/SEAT KIT Inlet   2
5 0000 811831 METERING ROD KIT (9600) 1
5 0000 809073 METERING ROD KIT (9662)-SWISS EMISSIONS (BSO1 & SAV1) 1
6 0000 811536 FLOAT KIT   2
7 0000 OEM: 525-811537 PLUNGER KIT Pump   1
8 0000 811538 CHOKE KIT (Automatic Choke)   1
9 0000 OEM: 525-811539 SCREW KIT Idle Mixture (9600) 2
10 0000 809072 SCREW KIT Idle Mixture (9662)-SWISS EMISSIONS (BSO1 & SAV1) 1
11 0000 OEM: 525-823724 JET Metering - Secondary (9600) 2
11 0000 809075 PRIMARY METERING JET (9662)-SWISS EMISSIONS (BSO1 & SAV1) 2
12 0000 OEM: 525-823724 JET Metering - Secondary (9600) 2
12 0000 823721 SECONDARY METERING JET (9662)-SWISS EMISS. (BSO1 & SAV1) 2
13 0032 OEM: 525-32-1430165 TUBING (38.00 Inches Bulk) (Automatic Choke)   1
