4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0F601127 THRU 0F802999 - EXHAUST MANIFOLD AND EXHAUST RISER

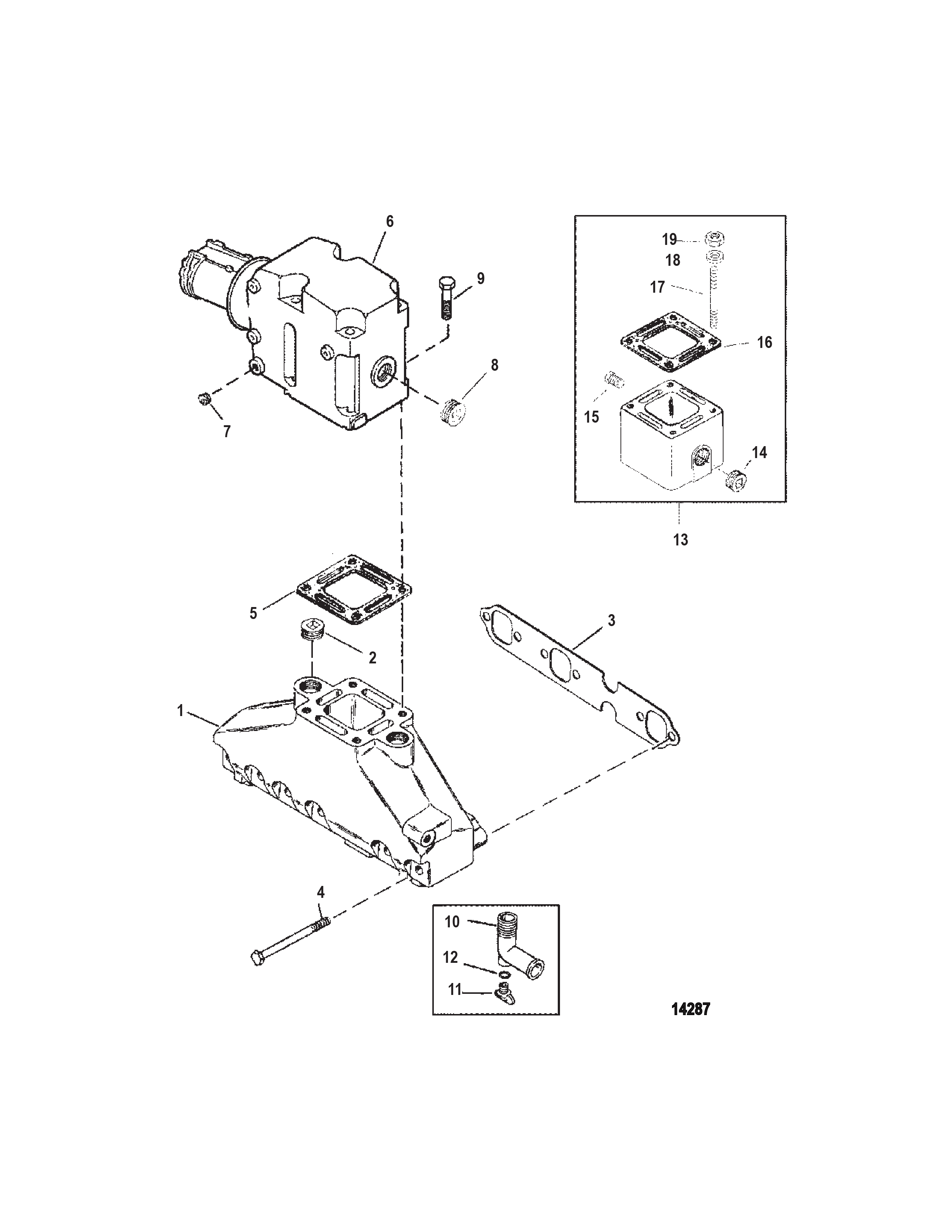

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99746A8 MANIFOLD ASSEMBLY Exhaust   2
2 0022 33198A1 PLUG (3/4-14) Pipe   AR [1]
3 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET   2 [2]
4 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   12
5 0027 41813 GASKET   2 [2]
6 0000 807914A1 ELBOW ASSEMBLY Exhaust   2 [3]
6 0000 44354A10 ELBOW ASSEMBLY Exhaust (PORT), SWISS EMISSIONS (BSO1 & SAV1) 1
6 0000 44354A9 ELBOW ASSEMBLY Exhaust (STARBOARD), SWISS EMISSIONS (BSO1 & SAV1) 1
7 0022 OEM: 525-22-36382, GLM: 700-21887 FITTING (.250-18 x .62) Brass   4
8 0022 33198A1 PLUG (3/4-14) Pipe   2
9 0010 43749 SCREW (.375-16 x 5.750)   8
10 0022 806926A1 ELBOW KIT Drain   2
11 0022 806608A1 PLUG KIT (.500-13) Royal Blue Drain   2 [4]
12 0025 806609 QUAD RING   2
13 0000 93320A3 RISER KIT Exhaust Elbow (3 In.) (3 in.)   1
13 0000 93322A6 RISER KIT Exhaust Elbow (6 In.) (6 in.)   1
14 0022 33198A1 PLUG (3/4-14)   2
15 0022 328021 PLUG Pipe (.125-27)   2
16 0027 818832 GASKET   2
17 0016 11375 STUD (.375 x 9.56) Use with 3 In. Riser 6-8
17 0016 11376 STUD (.375 x 10.56) Use with 3 In. Riser (Remote Oil) 2
17 0010 12244 SCREW (.375-16 x 1.00) Use with 6 In. Riser 8
18 0012 OEM: 525-12-46132 WASHER   8
19 0011 OEM: 525-11-46335 NUT (.375-24)   8

PART NOTES:

[1] - AS REQUIRED

[2] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET 824326A93

[3] - SUPERSEDES TO ANOTHER PART NUMBER

[4] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
