4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Sea Water Pump Assembly

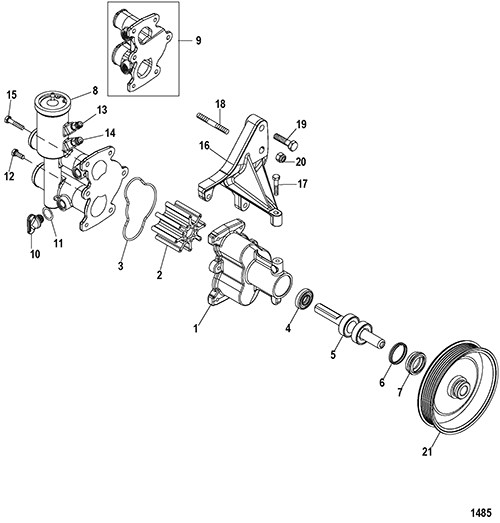

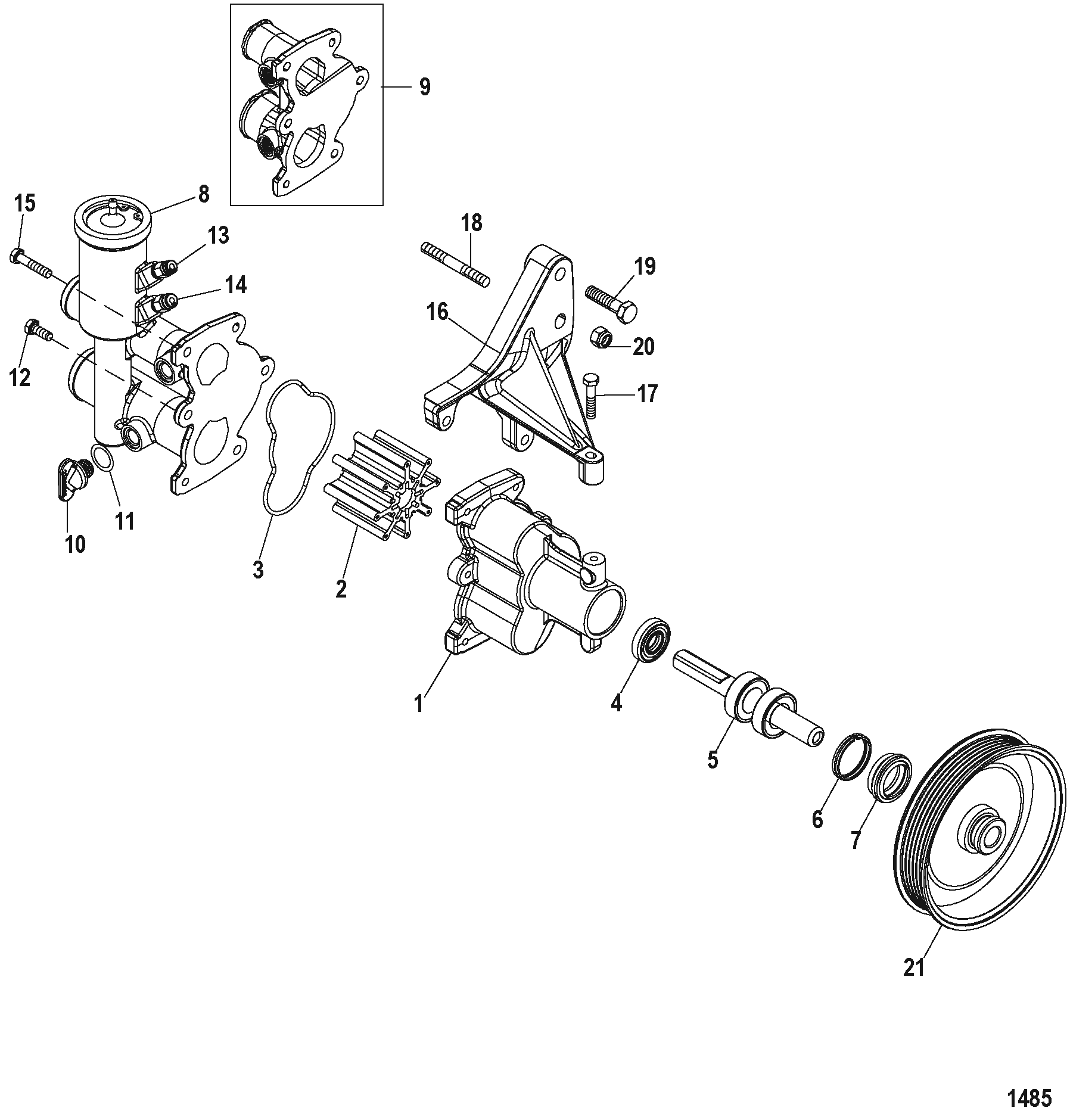

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
- 0046 862914T3 PUMP ASSEMBLY (Without Air Fittings) 1
- 0046 862914T4 PUMP ASSEMBLY (With Air Fittings) 1
1 0046 OEM: 525-46-862914A13, Sierra: 676-18-3160-1 HOUSING ASSEMBLY Impeller   1
2 0047 862232A2 IMPELLER   1
3 0025 OEM: 525-25-841807 O-RING (3.500 x .103)   1
4 0026 862037 SEAL Oil   1
5 0000 862235A1 DRIVESHAFT ASSEMBLY   1
6 0000 OEM: 525-862039 TOLERANCE RING   1
7 0026 OEM: 525-26-862040 SEAL Lip   1
8 0000 OEM: 525-863674A05 COVER KIT Impeller Housing (With Air Fittings)   1
9 0000 OEM: 525-862776A01 COVER KIT Impeller Housing (Without Air Fittings)   1
10 0022 806608A1 PLUG KIT (.500-13) Royal Blue   2 [1]
11 0025 32509 O-RING (.489 x .070)   2
12 0010 OEM: 525-10-4000328 SCREW (M6 x 16)   4
13 0022 OEM: 525-22-863718 FITTING Gray - Straight Male Air (.1562)(Component of T-4 Pump) 1
14 0022 OEM: 525-22-863719 FITTING Orange - Straight Male Air (.1875)(Component of T-4 Pump) 1
15 0010 OEM: 525-10-4000331 SCREW (M6 x 30)   2
16 0000 865143T BRACKET Sea Water Pump   1
17 0010 OEM: 525-10-4000331 SCREW (M6 x 30)   1
18 0016 OEM: 525-16-863853 STUD   2
19 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   1
20 0011 OEM: 525-11-82671112 NUT (.375-16)   2
21 0000 862351T PULLEY   1

PART NOTES:

[1] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
