4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Pistons And Connecting Rods

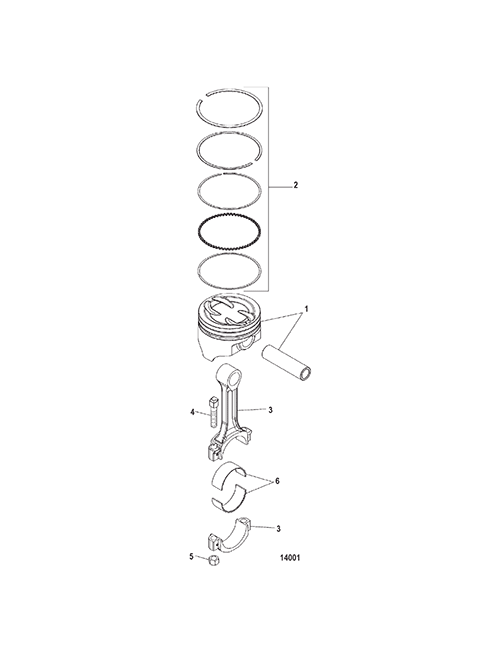

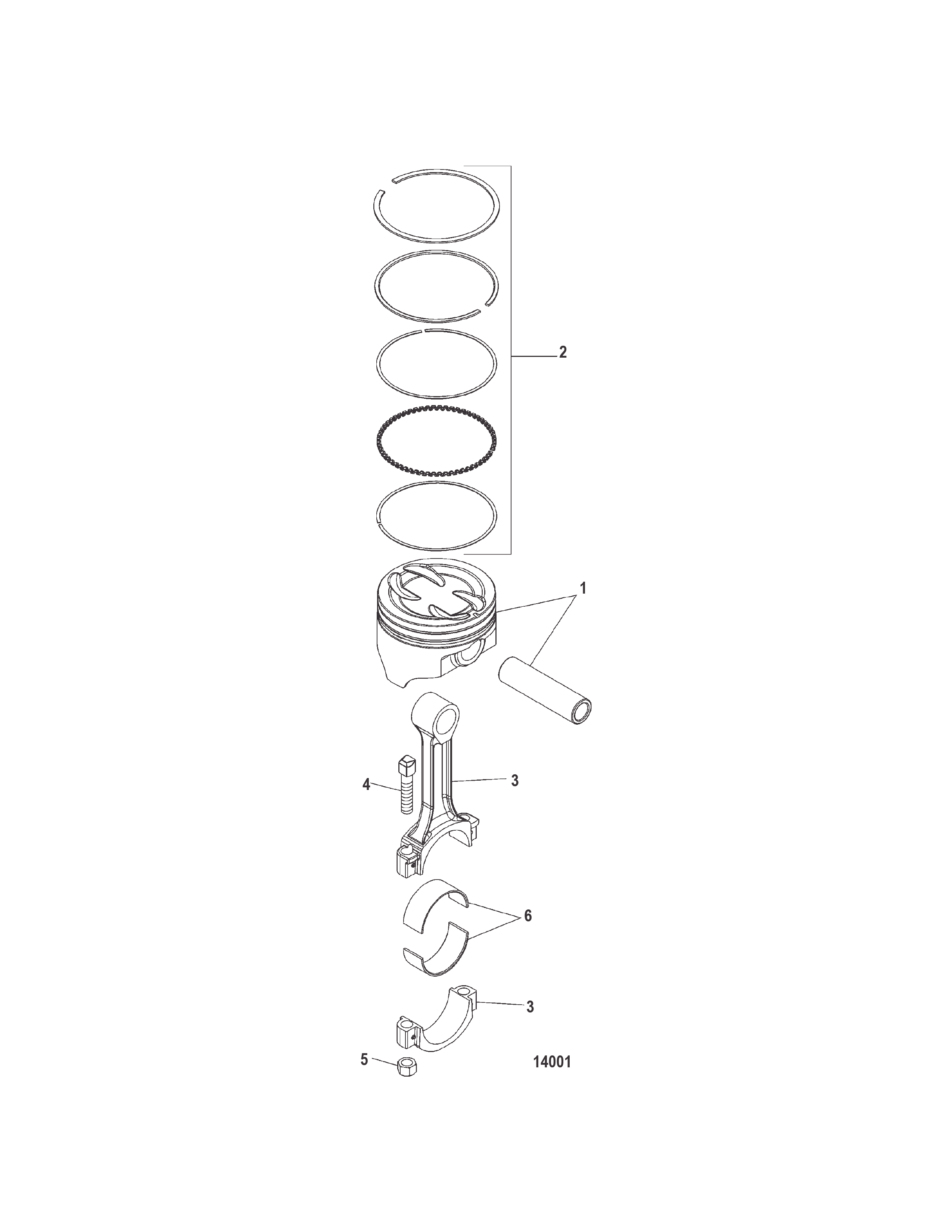

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0735 OEM: 525-735-835001T PISTON ASSEMBLY (Standard) 6 [1]
1 0735 OEM: 525-735-835002T PISTON ASSEMBLY (.5MM Oversize) AR
2 0039 801861T1 RING SET Piston (Standard) 6 [1]
2 0039 OEM: 525-39-835000 RING SET Piston (.5MM Oversize) AR
3 0614 811839T CONNECTING ROD   6 [1]
4 0010 OEM: 525-10-11969 BOLT Connecting Rod   12 [1]
5 0011 37493 NUT (.375-24)   12 [1]
6 0023 11992 BEARING (Pair-Standard) 6 [1]
6 0023 OEM: 525-23-11993 BEARING (Pair- .001 Undersize) AR
6 0023 811858 BEARING (Pair- .010 Undersize) AR
6 0023 OEM: 525-23-811859 BEARING (Pair- .020 Undersize) AR
- 0000 864256A2 LONGBLOCK ASSEMBLY (4.3L)   1 [2]

PART NOTES:

[1] - Component Of Long Block Assemlby, Long Block Part Numbers Listed On Service/Support Material Page.

[2] - Alternate part numbers:

864256A 2QS

864256R05Reman

8M0063328Reman Int'l
