4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Closed Cooling System (Easy Drain)

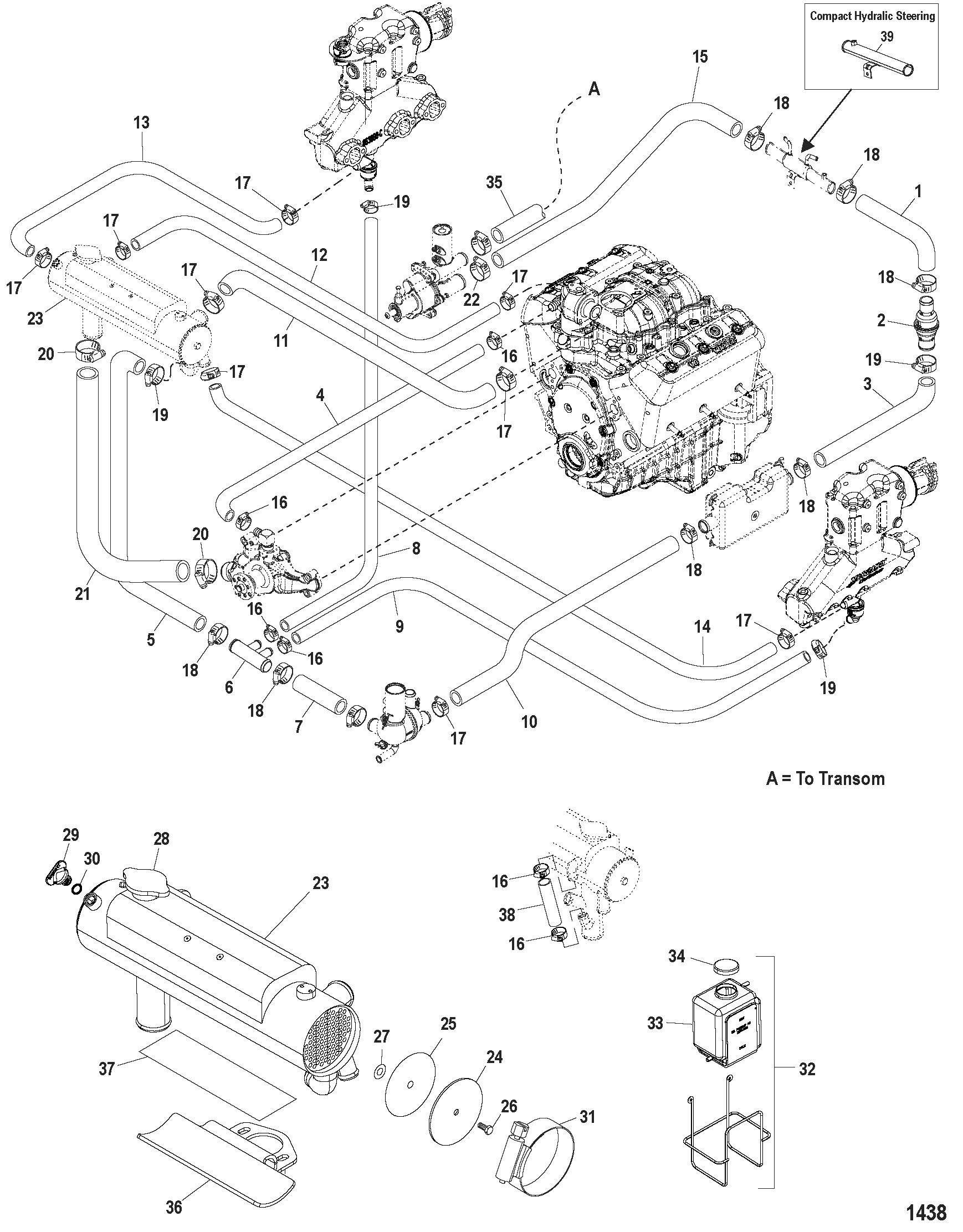

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 OEM: 525-32-863489 HOSE Power Steering Cooler To Check Valve   1 [1]
2 0021 OEM: 525-21-864206A1 CHECK VALVE ASSEMBLY   1 [1]
3 0032 OEM: 525-32-863811 HOSE Check Valve To Fuel Cooler   1 [1]
4 0032 OEM: 525-32-8638871 HOSE Intake Bypass To Circulating Pump   1 [1]
5 0032 OEM: 525-32-863793 HOSE Distribution Fitting To Heat Exchanger   1 [1]
6 0022 OEM: 525-22-863799 FITTING Distribution   1 [1]
7 0032 OEM: 525-32-863490 HOSE Distribution Fitting To Accumulator Housing   1 [1]
8 0032 4285069 HOSE (44.00 Inches Bulk) (Cut to 42.00 Inch Length) 1
9 0032 864258 HOSE Port Manifold Drain   1 [1]
10 0032 OEM: 525-32-863781 HOSE Fuel Cooler To Accumulator Housing (With Power Steering) 1 [1]
10 0032 OEM: 525-32-863937 HOSE Fuel Cooler To Accumulator Housing (With Out Power Steering) 1 [1]
11 0032 OEM: 525-32-863885 HOSE Heat Exchanger To Thermostat Housing   1 [1]
12 0032 OEM: 525-32-863886 HOSE Heat Exchanger To Thermostat Housing   1 [1]
13 0032 862150 HOSE Heat Exchange To Exhaust Manifold. (Starboard) 1 [1]
14 0032 OEM: 525-32-807141 HOSE Heat Exchanger To Manifold (Port) 1 [1]
15 0032 OEM: 525-32-863611 HOSE Sea Pump To Power Steering Cooler (Cut to Length) 1
16 0054 OEM: 525-54-815504212 CLAMP Worm Gear Hose   1
17 0054 OEM: 525-54-815504216 CLAMP Worm Gear (1.56 Diameter) Hose   1
18 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter) Hose   1
19 0054 OEM: 525-54-815504228 CLAMP Worm Gear Hose   1
20 0054 OEM: 525-54-815504232 CLAMP Worm Gear (2.50 Diameter) Hose   1
21 0032 OEM: 525-32-861059 HOSE Heat Exchanger to Circulating Pump   1
22 0054 OEM: 525-54-815504220 CLAMP Worm Gear Hose   1
23 0000 863709A1 HEAT EXCHANGER Closed Cooling   1 [1]
24 0000 814875 COVER Heat Exchanger End   2
25 0027 803644 GASKET End Cover   2
26 0010 OEM: 525-10-814877 BOLT   2
27 0025 814878 O-RING Special   2
28 0036 OEM: 525-36-8148791 CAP Pressure   1
29 0022 806608A1 PLUG KIT (.500-13) Royal Blue   1 [2]
30 0025 32509 O-RING (.489 x .070)   1
31 0054 OEM: 525-54-815504388 CLAMP Worm Gear Heat Exchanger   1
32 0000 OEM: 525-71587A10 RECOVERY KIT Coolant   1
NS 0032 OEM: 525-32-774572 HOSE (48.00 Inches Bulk)   1
33 0000 OEM: 525-71587A11 BOTTLE Plastic Coolant Recovery Kit   1
34 0000 OEM: 525-72058 CAP Coolant Recovery Bottle   1
35 0032 1743579 HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up   1
36 0000 863680A1 BRACKET Cooler   1
37 0000 OEM: 525-18431 PAD Heat Exchanger   1
38 0032 4285069 HOSE (44.00 Inches Bulk) (Cut To 6 Inch Length) 1
39 0000 OEM: 525-863841T TUBE Water (Brass) (Compact Hydralic Steering) 1

PART NOTES:

[1] - Part Is New And Listed For The First Time

[2] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
