262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Intake Manifold And Front Cover

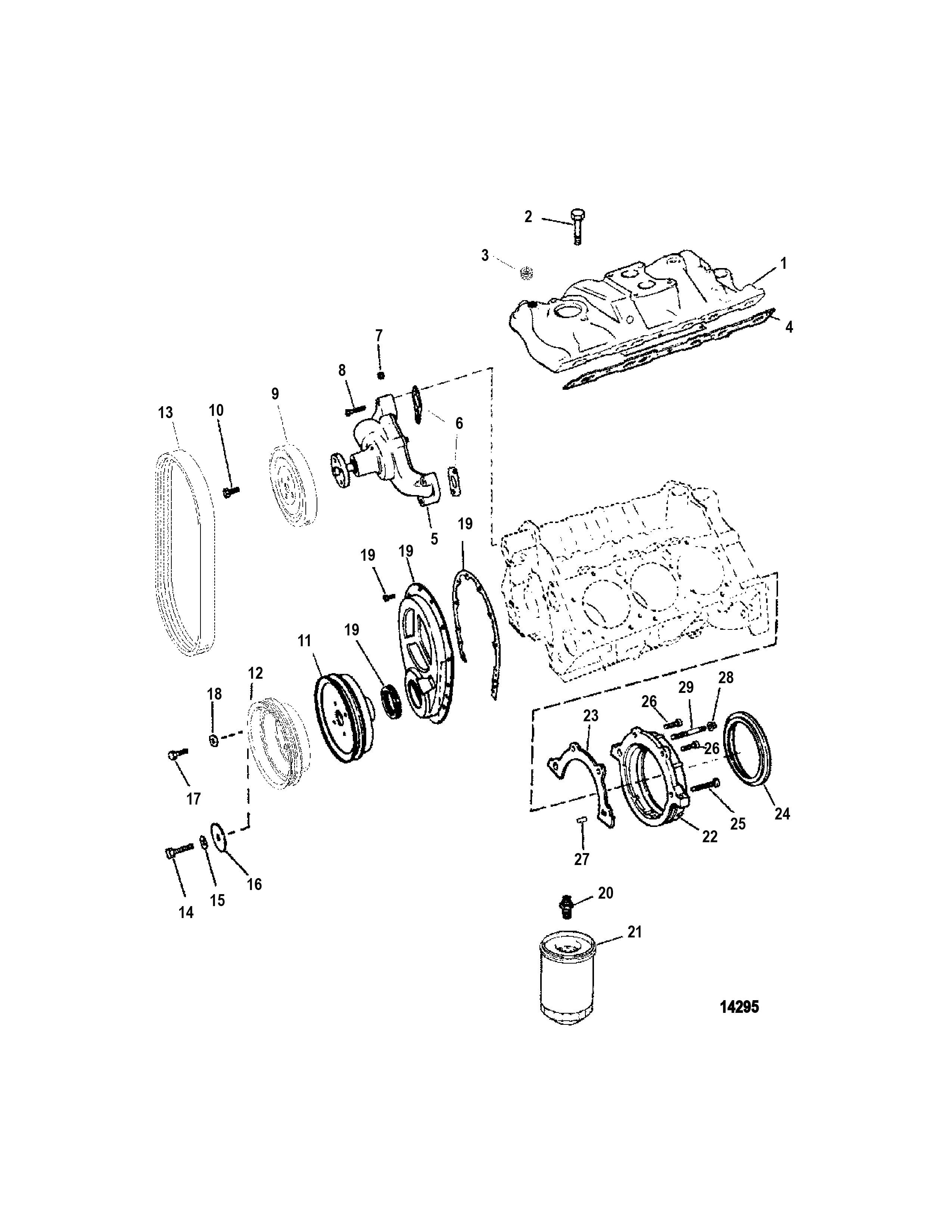

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 8243241 MANIFOLD Intake (2 BARREL) 1
1 0000 8243301 MANIFOLD Intake (4 BARREL) 1
2 0010 OEM: 525-10-835004 BOLT (.312-18 x 1.75)   8
2 0010 11975 BOLT (3/8-16 x 1.25)   4
3 0022 OEM: 525-22-75983 PLUG   1
4 0027 8243261 GASKET SET   1 [1]
5 0000 850399 PUMP ASSEMBLY Water   1
6 0027 OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 GASKET   2 [1]
7 0022 OEM: 525-22-48336 PLUG Water Pump   1
8 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   3
8 0010 OEM: 525-10-47688 SCREW (.375-16 x 2.750)   1
9 0000 807729T PULLEY   1
10 0010 OEM: 525-10-47277 SCREW (.312-24 x .750)   4
11 0000 809892 BALANCER Harmonic   1
12 0000 OEM: 530-807730T PULLEY   1
13 0057 OEM: 530-861758A1 BELT Serpentine (ALPHA) 4-3/4 IN. DIA. P/S PULLEY 1
13 0057 OEM: 525-57-861759A1 BELT Serpentine (BRAVO) 4-3/4 IN. DIA. P/S PULLEY 1
13 0057 861758 BELT Serpentine (ALPHA) 5-3/4 IN. DIA. P/S PULLEY 1
13 0057 861759 BELT Serpentine (BRAVO) 5-3/4 IN. DIA. P/S PULLEY 1
14 0010 32515 SCREW (.437-20 x 2.50)   1
15 0013 OEM: 525-13-39131 LOCKWASHER (.437)   1
16 0012 35332 WASHER   1
17 0010 OEM: 525-10-34352 SCREW (.375-24 x .875)   3
18 0012 OEM: 525-12-34714 WASHER   3
19 0000 809893 TIMING COVER ASSEMBLY (SCREWS, GROMMETS AND OIL SEAL ARE NOT SOLD SEPARATELY) 1
20 0000 11972 ADAPTER W/O REMOTE OIL FILTER 1
21 0000 41815 FILTER Oil W/O REMOTE OIL FILTER 1 [2]
22 0000 142391 RETAINER Seal   1
23 0027 14241 GASKET   1 [1]
24 0026 OEM: 525-26-14240, Sierra: 676-18-0519, GLM: 700-85790 SEAL Oil   1 [1]
25 0010 14243 BOLT (.250-20 x 1.750)   1
26 0010 OEM: 525-10-14242 BOLT (.250-20 x .875)   2
27 0017 OEM: 525-17-14263 PIN Dowel   1
28 0011 OEM: 525-11-11996 NUT   1
29 0016 148271 STUD   1
- 0027 824326A96 GASKET SET Overhaul   1

PART NOTES:

[1] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET

[2] - Alternate part numbers:

41815Service Part

883702KMPP

883702QQS
