2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Transom Brackets

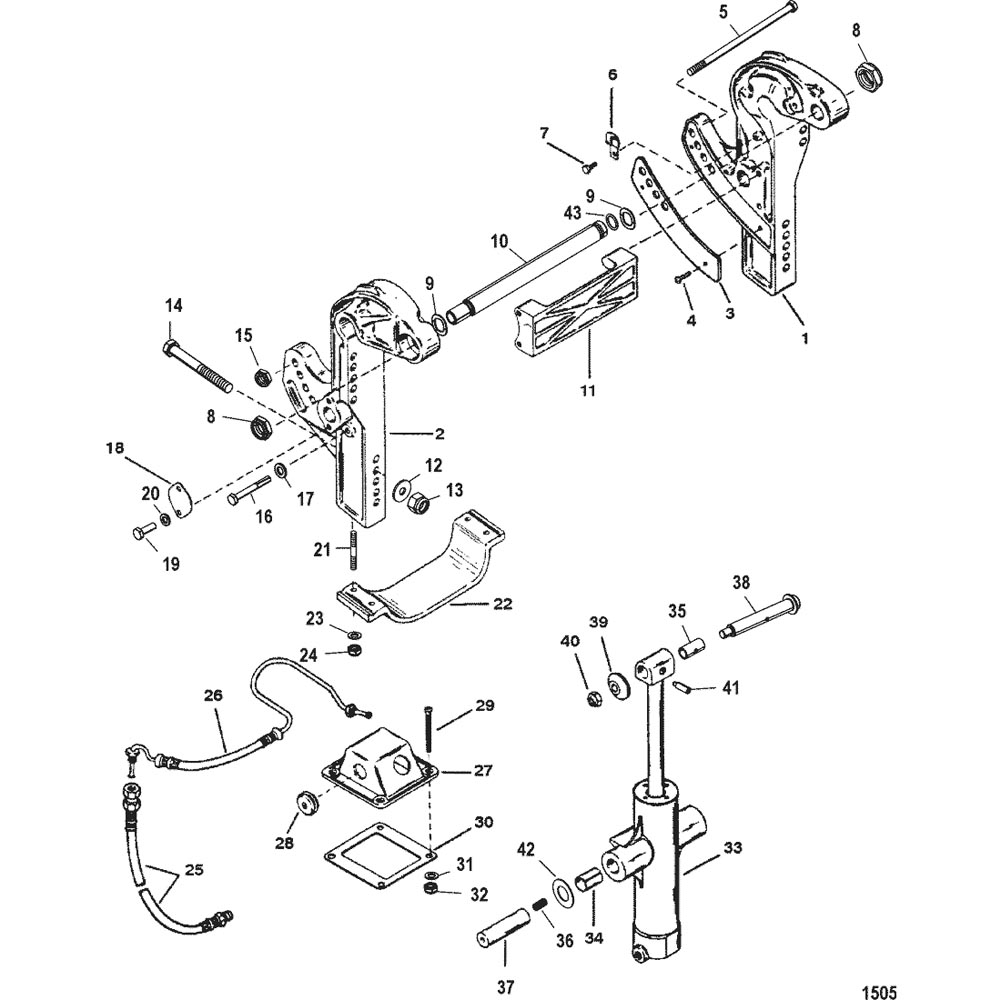

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1494-847800A1 | BRACKET ASSEMBLY, Transom | 1 | No Longer Available | |||||
| 2 | 1495-847801T01 | BRACKET ASSEMBLY, Transom | 1 | 847801A1 | No Longer Available | ||||
| 3 | 847798A02 | WEAR PAD KIT | 1 | 847798A1 | |||||
| 4 | 10-86843 | SCREW, (#10-24 x .500) | 4 | ||||||
| 5 | 10-87180 | BOLT, (.500-20 x 11.00) | 1 | ||||||
| 6 | 54-88512 | CLAMP | 4 | ||||||
| 6 | 54-75275 | CLAMP | 2 | ||||||
| 7 | 10-88829 | SCREW, (#10-24 x .500) | 6 | ||||||
| 8 | 11-858869 | NUT, (.875-14) | 1 | ||||||
| 8 | 11-859133 | NUT, (1.00-14) | 1 | No Longer Available | |||||
| 9 | 13-88750 | WASHER | 2 | ||||||
| 10 | 99170A2 | TUBE KIT, Tilt | 1 | No Longer Available | |||||
| 11 | 85035T | SPACER | 1 | ||||||
| 12 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 4 | ||||||
| 13 | 11-82671117 | NUT, (.500-20) | 4 | ||||||
| 14 | 10-677552 | SCREW, (.500-20 x 6.500) (6-1/2 IN.) | 4 | ||||||
| 15 | 11-82671317 | NUT, (.500-20) | 1 | ||||||
| 16 | 10-70732 | SCREW, (.250-20 x 2.00) | 4 | ||||||
| 17 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 18 | 85026T | PLATE | 2 | ||||||
| 19 | 10-28636 | SCREW, (.250-20 x .750) | 4 | ||||||
| 20 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 21 | 16-8M0034451 | STUD, (.312-24 x 1.380) | 4 | 54343 | |||||
| 22 | 89949A1 | PLATE ASSEMBLY | 1 | ||||||
| 23 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 4 | ||||||
| 24 | 11-82670911 | NUT, (.312-24) Stainless Steel | 4 | ||||||
| 25 | 32-89024 | HOSE, Hydraulic | 1 | ||||||
| 25 | 32-89023 | HOSE, Hydaulic | 1 | ||||||
| 26 | 32-96993 | HOSE, Hydraulic | 1 | ||||||
| 26 | 32-96994 | HOSE, Hydraulic | 1 | ||||||
| 27 | 87871T | COVER | 1 | 87871 | |||||
| 28 | 25-45507 | GROMMET | 1 | ||||||
| 29 | 10-32866 | SCREW, (#10-32 x 2.00) Stainless Steel | 4 | ||||||
| 30 | 27-87775 | GASKET | 1 | ||||||
| 31 | 12-20878 | WASHER | 4 | ||||||
| 32 | 11-826709106 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 33 | 79610T29 | TRIM CYLINDER | 1 | No Longer Available | |||||
| 33 | 79610T28 | TRIM CYLINDER | 1 | No Longer Available | |||||
| 33 | 79610T29 | TRIM CYLINDER | 1 | 79610A21 | No Longer Available | ||||
| 33 | 79610T28 | TRIM CYLINDER | 1 | 79610A17 | No Longer Available | ||||
| 34 | 23-847724 | BUSHING | 2 | ||||||
| 35 | 23-841223 | BEARING | 1 | ||||||
| 36 | 24-30316 | SPRING | 2 | ||||||
| 37 | 17-85020T | PIN, Pivot | 2 | ||||||
| 38 | 841199 | PIN, Trim | 1 | ||||||
| 38 | 8220752 | PIN, Trim | 1 | ||||||
| 39 | 822076 | RETAINER | 1 | ||||||
| 40 | 11-82671317 | NUT, (.500-20) | 1 | ||||||
| 41 | 10-8071791 | SET SCREW, (.250-20 x .820) | 1 | ||||||
| 42 | 12-85022 | WASHER | 2 | ||||||
| 43 | 25-45711 | O-RING, (.612 x .103) | 1 | ||||||
| - | 79879A1 | REPAIR KIT (FOR TRIM CYLINDERS) | 1 |
