SCX4 Upper Case

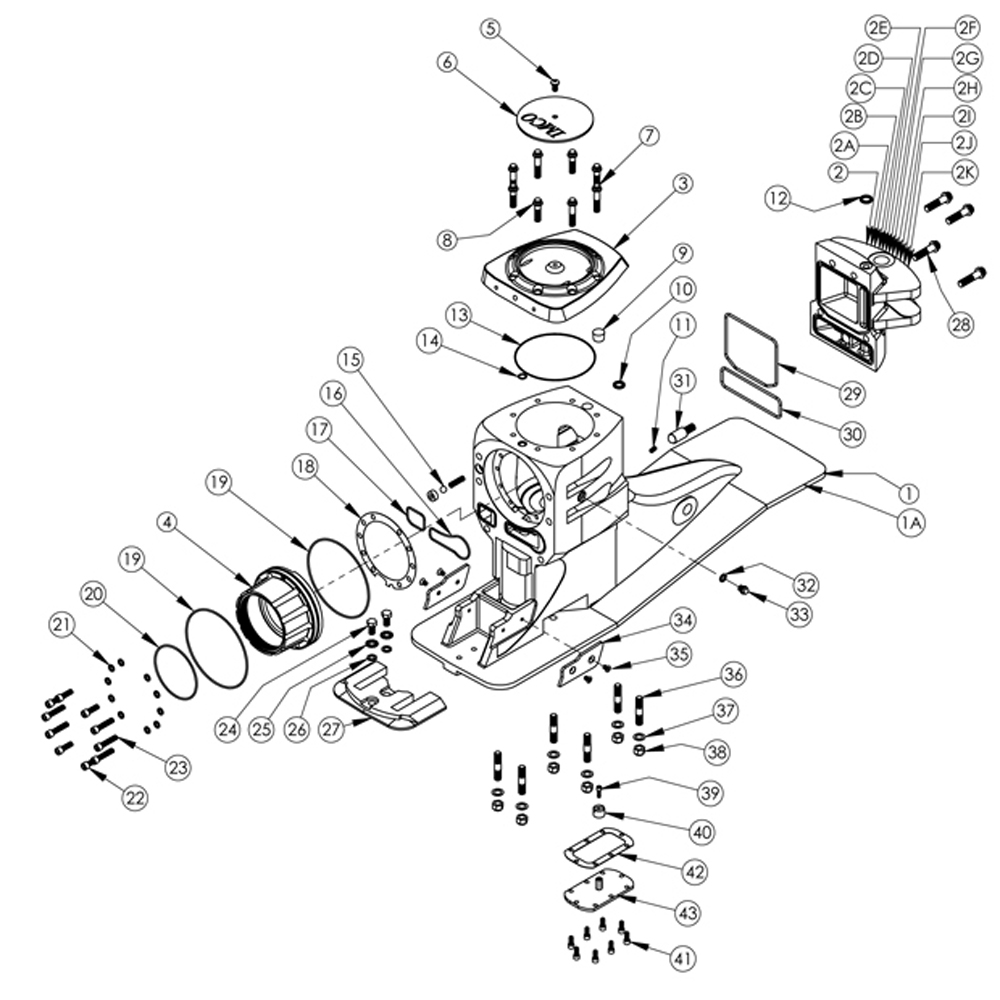

Click for Larger Image |
|||
| ITEM | DESCRIPTION | QTY | PART NUMBER |
| SCX, SCX4, SCXT Upper Seal Kit (Includes the items: 9, 10, 12, 13, 14, 15, 16, 17, 19, 20, 29, 30, 32, 42) | Kit | 421-11-8008 | |
| 1 | SCX4 Upper Case (Black) | 1 | 421-01-1579 |
| 1A | SCX4 Upper Case (Silver) | 1 | 421-01-1580 |
| 2 | Steering Cap California Black | 1 | 421-01-1551 |
| 2A | Steering Cap NV Black | 1 | 421-01-1552 |
| 2B | Steering Cap Generic Black | 1 | 421-01-1553 |
| 2C | Steering Cap ITS Black | 1 | 421-01-1554 |
| 2D | Steering Cap Tie Bar Starboard Black | 1 | 421-01-1555 |
| 2E | Steering Cap Tie Bar Port Black | 1 | 421-01-1556 |
| 2F | Steering Cap California Silver | 1 | 421-01-1558 |
| 2G | Steering Cap NV Silver | 1 | 421-01-1559 |
| 2H | Steering Cap Generic Silver | 1 | 421-01-1560 |
| 2I | Steering Cap ITS Silver | 1 | 421-01-1561 |
| 2J | Steering Cap Tie Bar Starboard Silver | 1 | 421-01-1562 |
| 2K | Steering Cap Tie Bar Port Silver | 1 | 421-01-1563 |
| 3 | Upper Cap | 1 | 421-01-2555 |
| 4 | Pinion Hub | 1 | 421-01-2560 |
| 5 | Screw (5/16-18 x 1/2" Button Head) | 1 | 421-08-040705041 |
| 6 | Top Cap Lid | 1 | 421-01-2071 |
| 7 | Screw (3/8-16 x 1 3/4" S/S 12 Point) | 4 | 421-08-070806111 |
| 8 | Screw (3/8-16 x 1 1/2" S/S 12 Point | 4 | 421-08-070806101 |
| 9 | Shift Shaft Plug | 1 | 421-11-1024 |
| 10 | Quad Ring (Cooling Water, Bottom) | 1 | 421-11-4024 |
| 11 | Screw (5/16-18 x 1/2" Allen Set) (For Tower) | 1 | 421-08-050705041 |
| 12 | Quad Ring (Cooling Water, Top) | 1 | 421-11-4025 |
| 13 | "O" Ring (Top Cap) | 1 | 421-11-2049 |
| 14 | "O" Ring (Top Cap Oil Passage) | 1 | 421-11-2013 |
| 15 | Spring Kit | Kit | 421-01-2045 |
| 16 | "O" Ring (Water Passage-Upper to Gimbal) | 1 | 421-11-2148 |
| 17 | "O" Ring (Shift Linkage) | 1 | 421-11-2129 |
| 18 | Pinion Hub Shims | Kit | 421-01-2548 |
| 19 | "O" Ring (Pinion Hub) | 2 | 421-11-2161 |
| 20 | "O" Ring (Pinion Retainer Nut | 1 | 421-11-2154 |
| 21 | Pinion Hub (5/16" Copper Sealing Washers) | 10 | 421-08-120700004 |
| 22 | Screw (5/16-18 x 1" Socket Cap) | 4 | 421-08-060705082 |
| 23 | Screw (5/16-18 x 1 1/2" Socket Cap) | 6 | 421-08-060705102 |
| 24 | Screw (3/8-16 x 3/4" Hex Head S/S) | 2 | 421-08-010806061 |
| 25 | Washer (3/8" Star) | 2 | 421-08-110800001 |
| 26 | Washer (3/8" AN) | 2 | 421-08-100800001 |
| 27 | Anode | 1 | 421-01-2067 |
| 28 | Screw (7/16-14 x 1 3/4" S/S 12 Point) | 4 | 421-08-070907111 |
| 29 | "O" Ring (Steering Cap, Oil) | 1 | 421-11-2250 |
| 30 | "O" Ring (Steering Cap, Shift Cavity) | 1 | 421-11-2242 |
| 31 | Detent Kit | Kit | 421-01-2044 |
| 32 | Drain Screw Sealing Washer | 1 | 421-11-1017 |
| 33 | Drain Screw | 1 | 421-01-2504 |
| 34 | Guide Pads (Port & Starboard) | 2 | 421-01-2471 |
| 35 | Screw (1/4-20 x 1/2” Flat Head Undercut) | 4 | 421-08-020604041 |
| 36 | Stud (7/16 x 2 1/8”) | 4 | 421-08-130904141 |
| 37 | Washer (7/16" AN S/S) | 4 | 421-08-100900001 |
| 38 | Nut (7/16-20 Nylock S/S) | 4 | 421-08-080904001 |
| 39 | Screw (10-24 x 5/8” Socket Cap) | 1 | 421-08-060403052 |
| 40 | Magnet | 1 | 421-01-9587 |
| 41 | Screw (1/4 x 5/8” Socket Cap) | 8 | 421-08-060604051 |
| 42 | Oil Tank Gasket | 1 | 421-11-1030 |
| 43 | Oil Tank Cover | 1 | 421-01-2574 |
