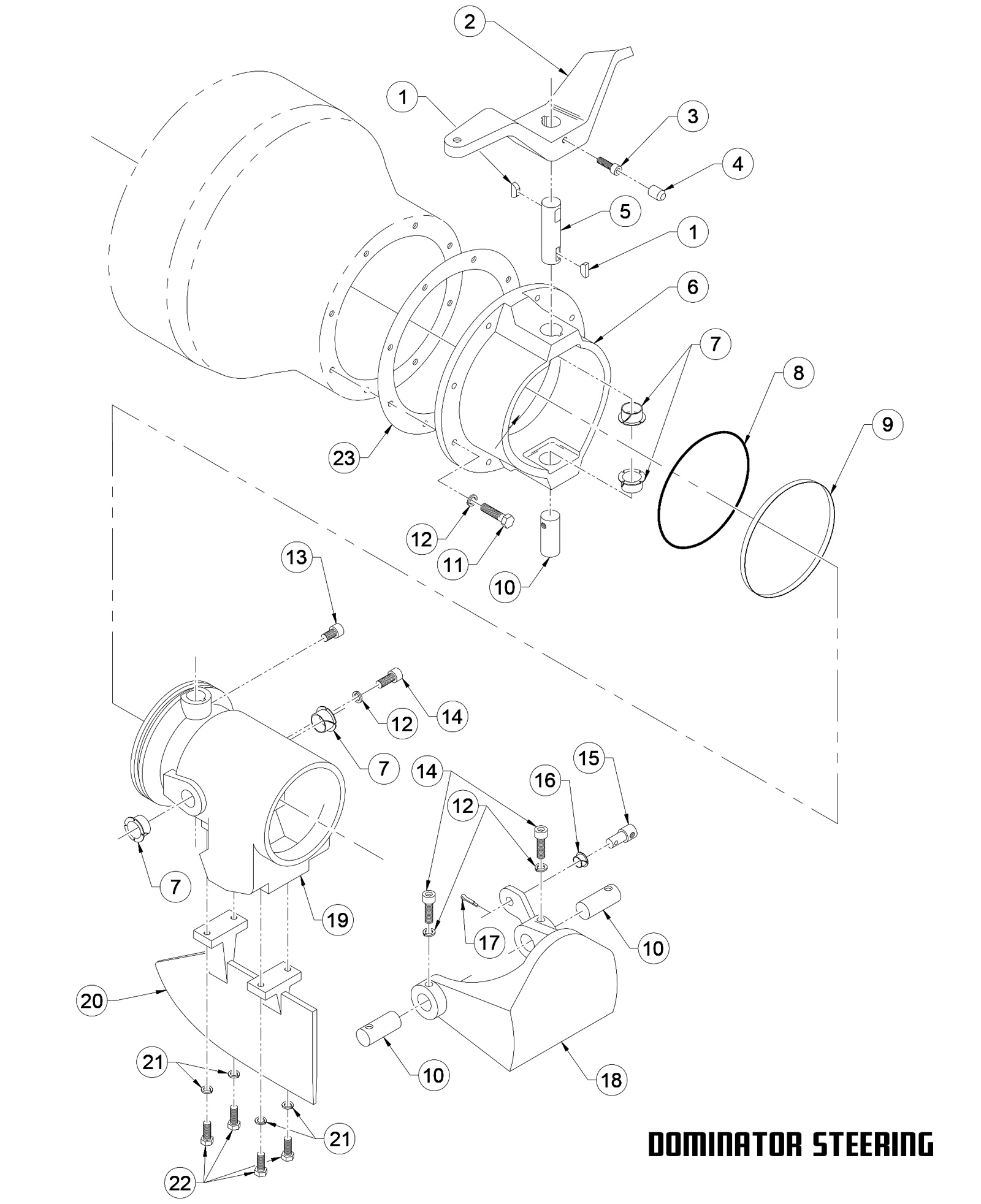

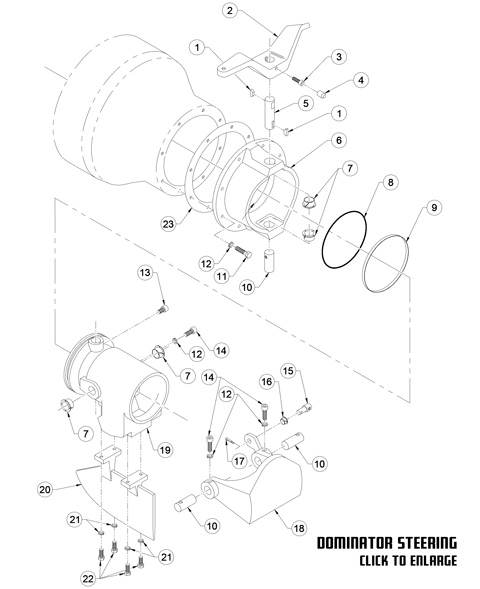

American Turbine Model Dominator Steering

Dominator Steering

PART #RA1703

SYM.
DESCRIPTION
QTY.
PART NO.
1
WOODRUFF KEY #9
2
152-R5507
2
TILLER ARM
1
152-R3003
3
SHCS, 5/16-18 X 3/4
1
152-F05 18 06 SH
4
VINYL CAP
1
152-M5001
5
UPPER TILLER PIN
1
152-BN2410
6
NOZZLE HOUSING
1
152-R1007
7
NYLINER BEARING 3/4 X 3/4
4
152-B2007
8
O-RING
1
152-O1505
9
RUBBER BAND (OPTIONAL)
1
**
10
LOWER NOZZLE PIN
3
152-BN2510
11
HHCS, 5/16-18 X 1-1/4
8
152-F05 18 10 HH
12
LOCKWASHER, 5/16
11
152-F05 LW
13
SHCS, 5/16-18 X 1/2
1
152-F05 18 04 SH
14
SHCS, 5/16-18 X 1
3
152-F05 18 08 SH
15
PIVOT, REVERSE CABLE
1
152-R5005
16
NYLINER, 3/8
1
152-B2105
17
COTTER PIN, 1/8 X 3/4
1
152-F02 06 CP
18
REVERSE BUCKET
1
152-R2103
19
NOZZLE
1
152-R1703
20
RUDDER
1
152-R2505
21
LOCK WASHER, 1/4
4
152-F04 LW
22
HHCS, 1/4-20 X 3/4
4
152-F04 20 06 HH
23
NOZZLE HOUSING GASKET
1
152-G2507
