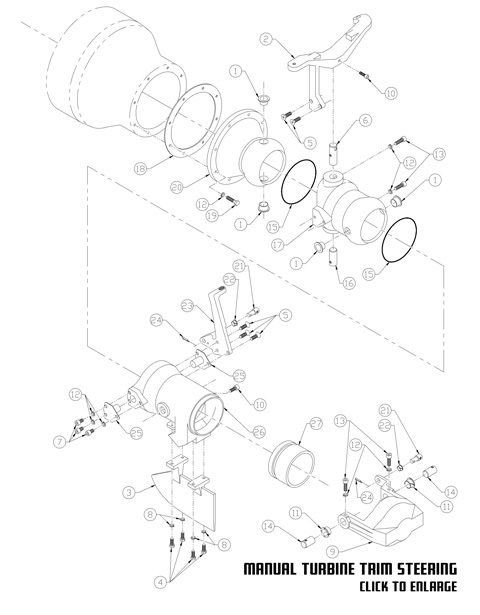

American Turbine Model Manual Turbine Trim Steering

Manual Turbine Trim Steering

PART #RA8107

SYM.
DESCRIPTION
QTY.
PART NO.
1
BRASS BUSHING
4
152-B2201
2
TILLER ARM
1
152-R3101
3
RUDDER
1
152-R2505
4
CLEVIS PIN, 1/4
4
152-F04 20 06 HH
5
FHMS, 5/16-18 X 1
5
152-F05 18 08 FH
6
UPPER TILLER PIN
1
152-R3601
7
SHCS, 5/16-18 X 1/2
3
152-F05 18 04 SH
8
LOCKWASHER, 1/4
4
152-F04 LW
9
REVERSE BUCKET
1
152-R2101
10
SHCS, 5/16-18 X 3/4
2
152-F05 18 06 SH
11
NYLINER BUSHING 1/2
2
152-B2101
12
LOCK WASHER, 5/16
15
152-F05 LW
13
SHCS, 5/16-18 X 1
4
152-F05 18 08 SH
14
REVERSE BUCKET PIN
2
152-R4601
15
NOZZLE O-RING
2
152-O1401
16
LOWER PIN
1
152-R3701
17
STEERING NOZZLE
1
152-R1401
18
NOZZLE HOUSING GASKET
1
152-G2507
19
HHCS, 5/16-18 X 1-1/4
8
152-F05 18 10 HH
20
SHORT SNOOT
1
152-R6101
21
REVERSE PIVOT PIN
1
152-R5005
22
3/8 NYLINER
2
152-B2105
23
UP /DOWN LEVER
1
152-R3901
24
COTTER PIN
2
152-F02 06 CP
25
PIN, UP/ DOWN
2
152-RA4701
26
NOZZLE
1
152-R1901
27
NOZZLE INSERT
1
152-R700**
