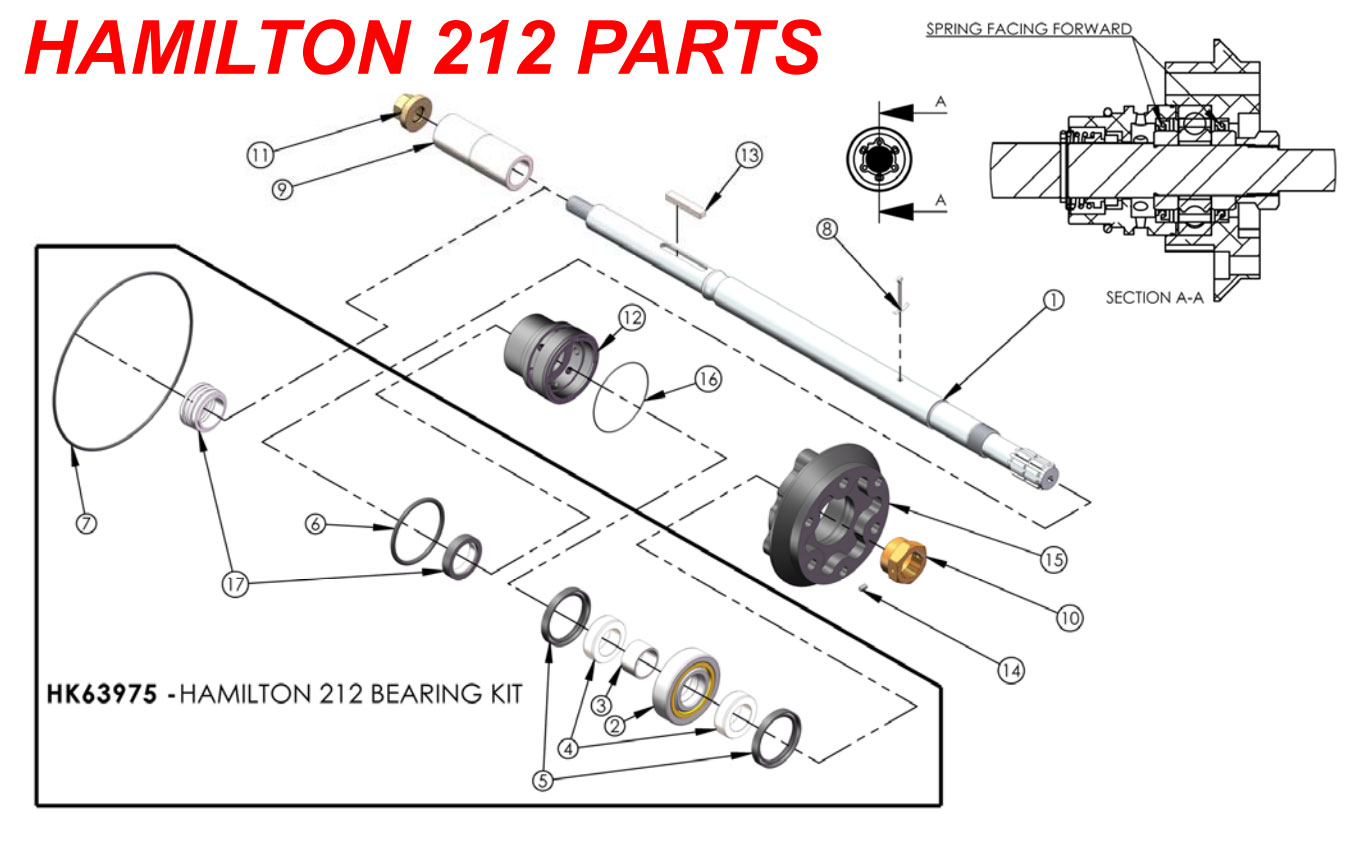

152-HA107528 HAMILTON 212 SHAFT ASSEMBLY
Kit Includes:
| Item Number |
Description |
Qty |
| H107528 |
HAMILTON, MAINSHAFT (PUMPSHAFT) |
1 |
| H63975 |
THRUST BEARING (HAMILTON 212) |
1 |
| H107529 |
BEARING CARRIER |
1 |
| H107612 |
SEAL SLEEVE |
2 |
| H61458 |
SEAL, HAMILTON 212, 213, 241 BEARING |
2 |
| H61464 |
O-RING, HAMILTON 212, SEAL FACE HOUSING |
1 |
| H200999 |
O-RING, HAMILTON 212, STATOR |
1 |
| F0316CP |
5/32 X 2 COTTER PIN |
1 |
| H107567 |
WATER BEARING SLEEVE |
1 |
| H107532 |
HAMILTON, BEARING RETAINING NUT |
1 |
| H203395 |
IMPELLER-COUPLING NUT fits 212,213,241 |
1 |
| H111718 |
HAM 212 SEAL FACE HOLDER |
1 |
| H110343 |
IMPELLER / COUPLING KEY |
1 |
| H201244 |
SOCKET SET SCREW SS, BEARING RETAINER |
1 |
| SL4008 |
SEAL, MECHANICAL (SD, YJ & 212 HAMILTON) |
1 |
|
|
152-H107528 HAMILTON, MAINSHAFT (PUMPSHAFT)
|
|
152-H63975 THRUST BEARING (HAMILTON 212)
|
|
|
|
|
|
|
|
152-H61458 SEAL, HAMILTON 212, BEARING
|
|
152-H61464 O-RING, HAMILTON 212, SEAL FACE HOUSING
|
|
152-H200999 O-RING, HAMILTON 212, STATOR
|
|
|
|
|
152-H107532 HAMILTON, BEARING RETAINING NUT
|
|
|
|
|
|
|
|
|
|
|
152-H201244 BEARING RETAINER NUT SOCKET SET SCREW SS
|
|
152-H110202 HAMILTON 212, BEARING HOUSING BILLET
|
|
152-SL4008 Mechanical Seal Assembly (SD, YJ & Hamilton 212)
|
|
152-H106011 CUTLASS BEARING, MARINE BEARING
|
|
152-H200985 O-RING, HAMILTON 212, HAND HOLE COVER
|
|
152-H064726 O-RING, HAMILTON 212, WATER OFFTAKE
|
|
152-HA103170 PIN, COTTER (RS3501 [ MUST USE AT NUT] )
|
|
462-70-111593 Hammilton Jet Drive Zinc
Cone Size: 2-1/4" Length x 13/16" Width x 13/16" Height
|
|
