200XS SST - Serial 1E050629 and Up - Fuel Pump

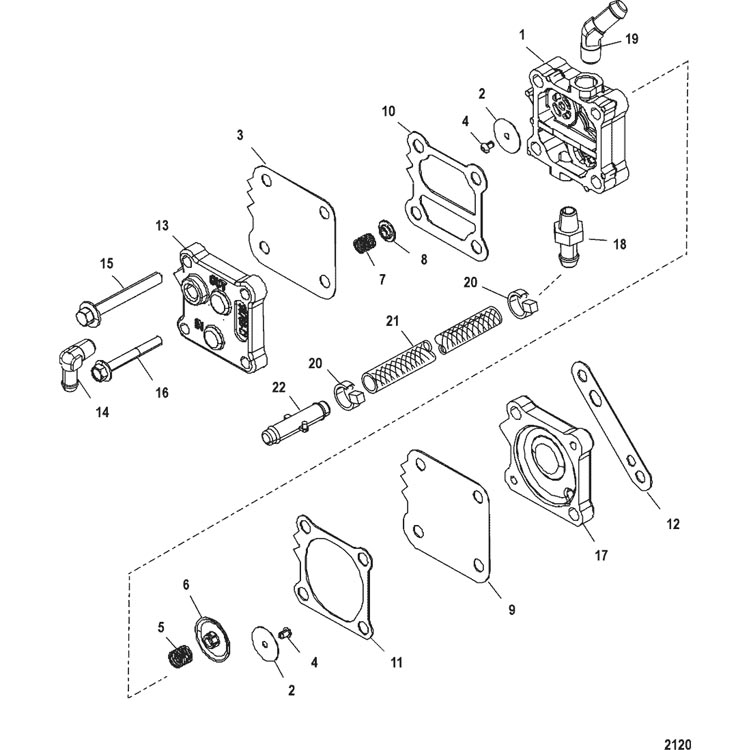

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Driveshaft)(IV SSM R/L)
- Gear Housing(Prop Shaft)(IV SSM R/L)
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Throttle Lever
- Top Cowl
- Transom Bracket Assembly
- Trim Cylinder Assembly
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14360T75 | PUMP ASSEMBLY, Fuel | 1 | ||||||
| 1 | NSS | BODY, Fuel Pump | 1 | Not Sold Separate | |||||
| 2 | 21-857005A1 | DIAPHRAGM KIT | 1 | ||||||
| 3 | NSS | DIAPHRAGM | 2 | Not Sold Separate | |||||
| 4 | NSS | RETAINER | 2 | Not Sold Separate | |||||
| 5 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 6 | NSS | CAP | 1 | Not Sold Separate | |||||
| 7 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 8 | NSS | CAP | 1 | Not Sold Separate | |||||
| 9 | NSS | DIAPHRAGM | 1 | Not Sold Separate | |||||
| 10 | NSS | GASKET, Boost | 1 | Not Sold Separate | |||||
| 11 | NSS | GASKET, Pulse | 1 | Not Sold Separate | |||||
| 12 | 27-987691 | GASKET, GASKET, Pulse | 1 | ||||||
| 13 | 987752 | PLATE | 1 | ||||||
| 14 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 15 | 10-82104540 | SCREW, (M5 x 40) | 2 | ||||||
| 16 | 10-82130050 | SCREW, (M6 x 50) | 2 | ||||||
| 17 | 144303 | BASE | 1 | ||||||
| 18 | 22-291112 | FITTING | 1 | ||||||
| 19 | 22-782792 | FITTING, Elbow 45 Degree (1.25) | 1 | ||||||
| 20 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 21 | 32-8M0043979 | HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) | 1 | 856822A2 | |||||
| 22 | 22-822769 | CONNECTOR | 1 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
