MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Thermostat And Housing

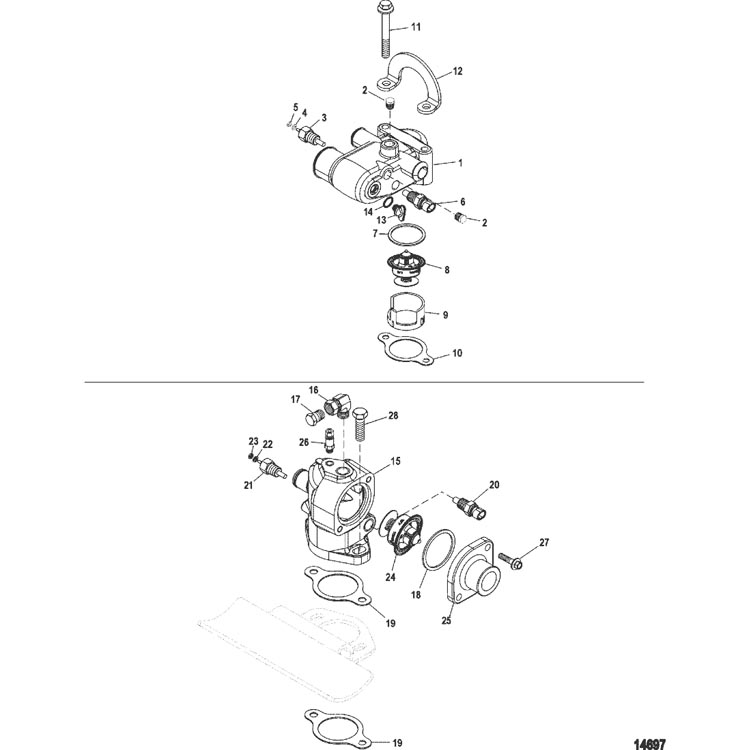

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 863457A2         HOUSING ASSEMBLY, Thermostat 1
2 22-32803         PLUG, Pipe (.375-18) Brass 2
3 806490T         SENDER, Water Temperature 1
3 49734         SENDER, Water Temperature, Dual Station OPT
4 13-26996         LOCKWASHER, (#10) Stainless Steel 1
5 11-68219         NUT, (#10-32) Stainless Steel 1
6 805218T         SENSOR ASSEMBLY, Temperature 1
7 27-806871         GASKET, Thermostat Housing 1
8 8M0091470         THERMOSTAT, 71DegreeC (160 Degree F) 1 807252T2
9 23-806922         SLEEVE, Thermostat 1
10 27-530451         GASKET, Lower Thermostat Housing 1
11 10-4010775         SCREW, (M8 x 75) 2
12 12552         LIFTING EYE 1
13 22-806608A02         PLUG KIT, (.500-13) Royal Blue 1 806608A1
14 25-32509         O-RING, (.489 x .070) 1
15 863708A2         HOUSING ASSEMBLY, Thermostat 1
16 22-35580         FITTING, Elbow 1
17 22-32803         PLUG, Pipe (.375-18) Brass 2
18 25-8071341         SEAL, Thermostat 1
19 27-530451         GASKET, Thermostat Housing 2
20 805218T         SENSOR, Temperature 1 805218
21 806490T         SENDER, Temperature 1
21 49734         SENDER, Water Temperature, Dual Station OPT
22 13-26996         LOCKWASHER, (#10) Stainless Steel 1
23 11-68219         NUT, (#10-32) Stainless Steel 1
24 991551         THERMOSTAT 1
25 807075A1         COVER, Thermostat Housing 1 807075
26 22-818390         DRAIN COCK 1
27 10-29198         SCREW AND LOCKWASHER, (.312-18 x .875) 2
28 10-40011151         SCREW, (M8 x 35) Stainless Steel 2
29 23-863874         SLEEVE, Water 1
- 27-861246A05         GASKET SET, Engine Overhaul 1 861246A98
