8.2L Mag (Base or HO) - Serial 1A351597 and Up - Cylinder Head

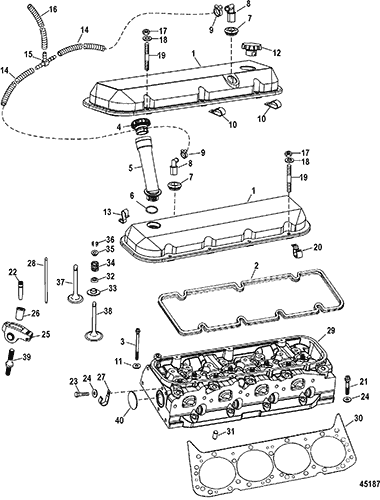

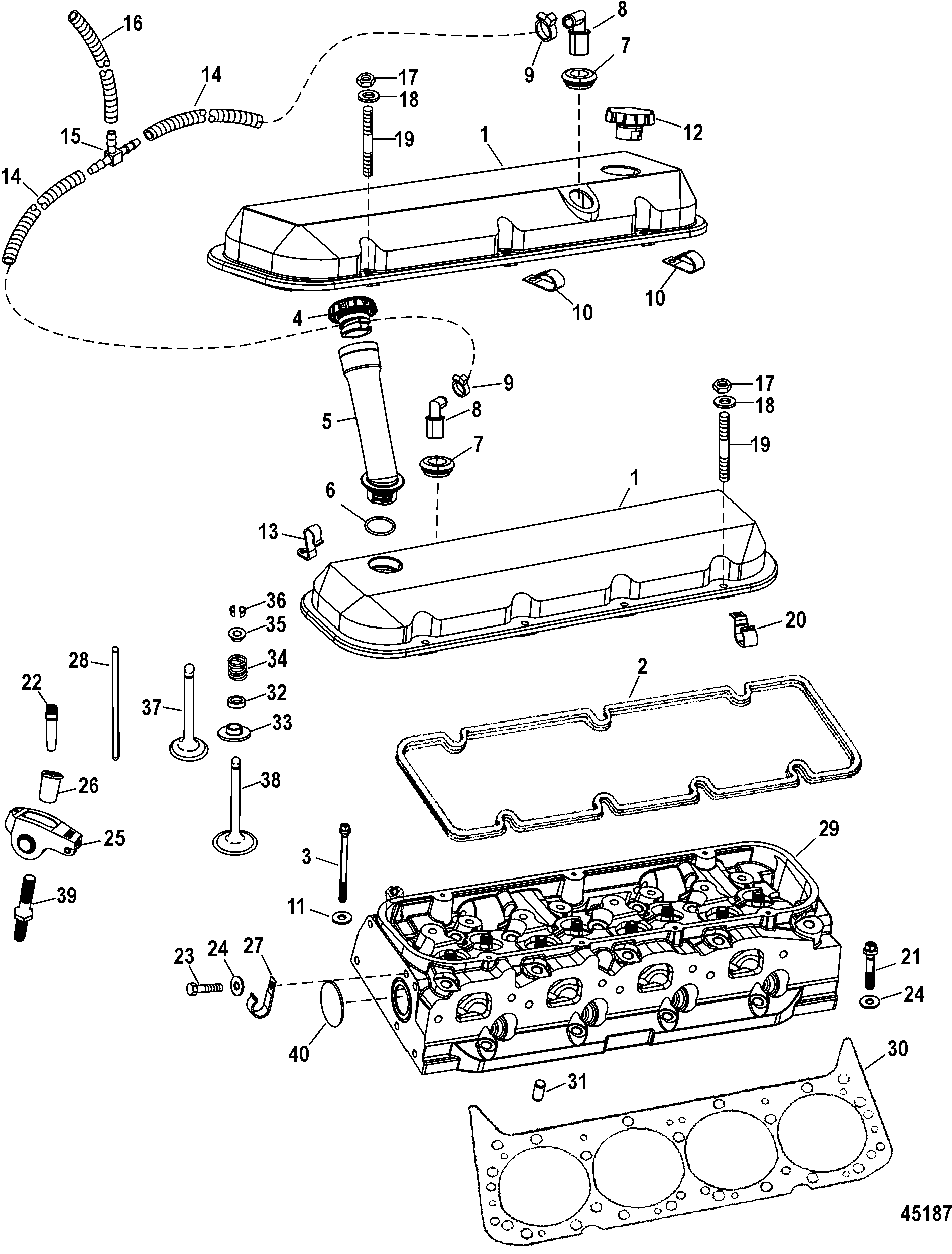

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0045254 | COVER ASSEMBLY, Rocker | 2 | ||||||
| 2 | 27-811588 | GASKET, Rocker Cover | 2 | 2 | |||||
| 3 | 10-8M0000467 | SCREW, (.438-14 x 5.060) Black Oxide | 10 | 5 | |||||
| 3 | 10-8M0000482 | SCREW, (.438-14 x 4.060) Black Oxide | 14 | 5 | |||||
| 4 | 378M0065093 | CAP, Oil Fill | 1 | 36-8M0045794 | |||||
| 5 | 8M0045749 | TUBE, Oil FIll | 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 7 | 25-811553 | GROMMET | 2 | 2,5 | |||||
| 8 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | |||||
| 9 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | 2 | |||||
| 10 | 54-858951 | J CLIP | 2 | 5 | |||||
| 11 | 12-841990 | WASHER, Special - Black | 32 | 5 | |||||
| 12 | 845753T1 | CAP, Oil Fill | 2 | 5 | |||||
| 13 | 54-42553 | J CLIP | 1 | 5 | |||||
| 14 | 32-1589431 | TUBING, (20.00 Inches Bulk), Cut 2 Pieces - 8.5 Inches | AR | ||||||
| 15 | 22-849999 | FITTING, Tee | 1 | ||||||
| 16 | 32-1589431 | TUBING, (20.00 Inches Bulk), Cut As Required | AR | ||||||
| 17 | 11-8267089 | NUT, (.250-28) | 14 | 5 | |||||
| 18 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 19 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 14 | 5 | |||||
| 20 | 54-15095 | J CLIP | 1 | ||||||
| 21 | 10-8M0000463 | SCREW, (.438-14 x 2.060) Black Oxide | 8 | 5 | |||||
| 22 | 840942 | GUIDE, Pushrod | 8 | 5 | |||||
| 23 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 1 | ||||||
| 24 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 1 | ||||||
| 25 | 8M0045762 | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 26 | 8M0043537 | NUT, Rocker | 16 | 5 | |||||
| 27 | 54-843142 | J CLIP | 1 | ||||||
| 28 | 848262 | PUSH ROD, (7.550) | 8 | Intake 5 | |||||
| 28 | 848264 | PUSH ROD, (8.550) | 8 | Exhaust 5 | |||||
| 29 | 8M0046344 | CYLINDER HEAD ASSEMBLY | 2 | 5 | |||||
| 30 | 27-811546A04 | GASKET KIT, Cylinder Head | 2 | 2,5 | |||||
| 31 | 17-843931 | PIN, Dowel, Cylinder Head Gasket Locator | 4 | 2,5 | |||||
| 32 | 26-842755 | SEAL, Valve, Intake And Exhaust | 16 | 2,5 | |||||
| 33 | 840678 | SEAT, Spring | 16 | 5 | |||||
| 34 | 24-8M0042978 | SPRING, Valve | 8 | 5 | |||||
| 35 | 8M0043175 | RETAINER, Valve Spring | 8 | 5 | |||||
| 36 | 8M0042576 | KEY, Valve Stem | 32 | 5 | |||||
| 37 | 8M0046324 | VALVE, Intake | 8 | 5 | |||||
| 38 | 8M0046325 | VALVE, Exhaust | 8 | 5 | |||||
| 39 | 95820 | STUD, Rocker Arm Valve | 8 | Intake 5 | |||||
| 39 | 16-843129 | STUD, Rocker Arm Valve | 8 | Exhaust 5 | |||||
| 40 | 19-47463 | EXPANSION PLUG | 2 | 5 |
