8.2L Mag (Base or HO) - Serial 1A351597 and Up - Cooling System, Raw Water Components, Starboard

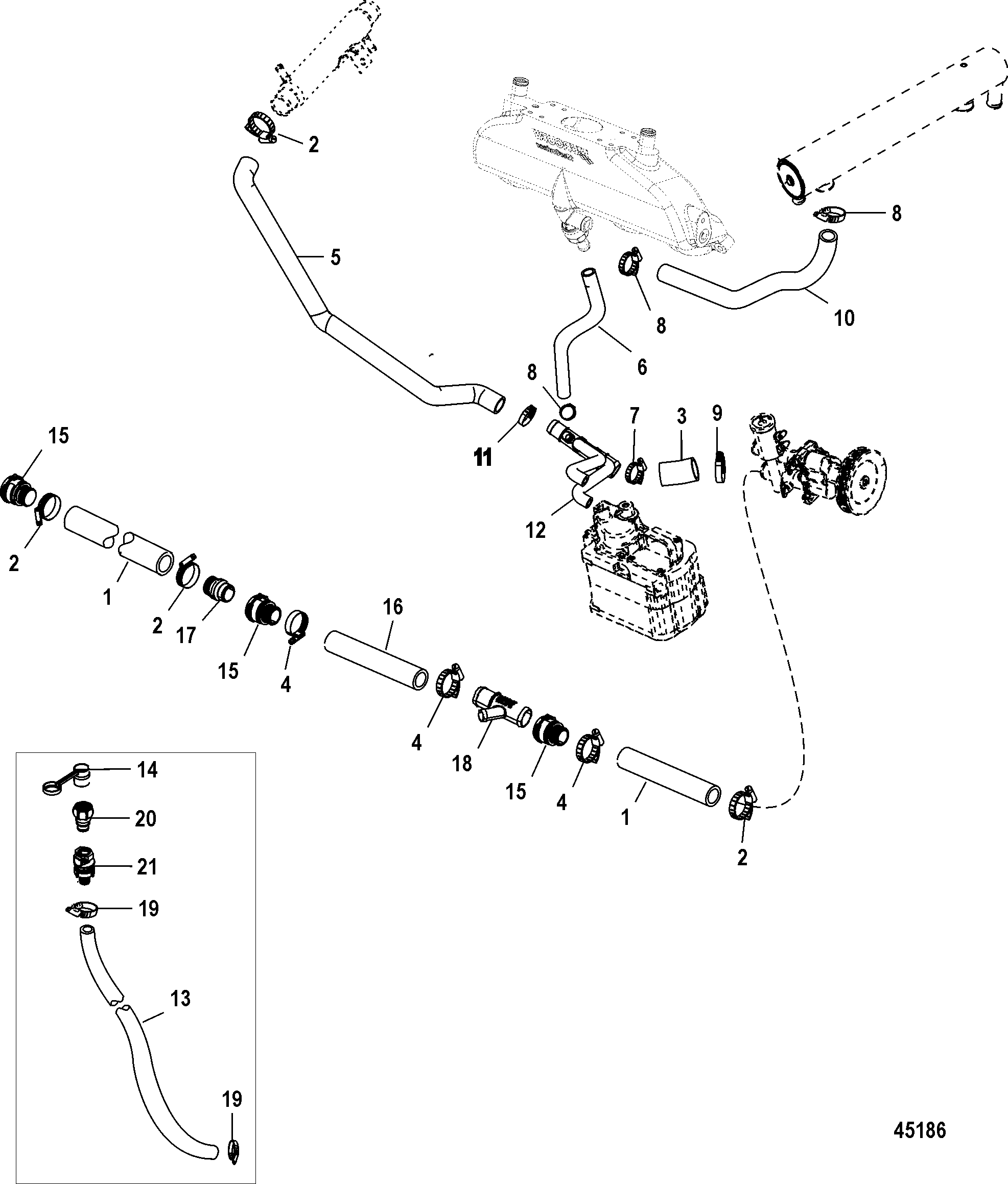

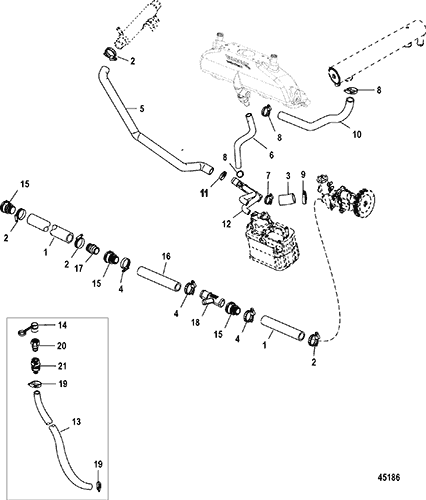

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | (Cut to Fit) | |||||
| 2 | 54-815504228 | CLAMP, Worm Gear | AR | ||||||
| 3 | 32-8M2017358 | HOSE, Sea Water Pump to Fitting | 1 | ||||||
| 4 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 2 | ||||||
| 5 | 32-8M2018801 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 6 | 32-4285069 | HOSE, (44.00 Inches Bulk), Drain Fitting to Orifice Meter | 1 | (Cut to 11 Inches) | |||||
| 7 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 1 | ||||||
| 8 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | ||||||
| 9 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 1 | ||||||
| 10 | 8M2020245 | HOSE, Heat Exchanger to Drain Fitting | 1 | ||||||
| 11 | 54-815504228 | CLAMP, Worm Gear | 1 | ||||||
| 12 | 8M0045363 | HOSE ASSEMBLY, 3 Bib Orifice Meter | 1 | ||||||
| 13 | 32-8M0062635 | HOSE, (42 Inches), Water | 1 | 32-8M2019902 | |||||
| 14 | 861427 | CAP | 1 | ||||||
| 15 | 22-865324 | QUICK CONNECT | 2 | ||||||
| 15 | 22-865324 | QUICK CONNECT | 1 | SeaCore Flush | |||||
| 16 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | (Cut to 14.50) | |||||
| 17 | 22-865362 | QUICK CONNECT | 1 | ||||||
| 18 | 22-8M4501756 | FITTING | 1 | SeaCore | |||||
| 19 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 20 | 22-857175 | FITTING | 1 | 22-861405 | |||||
| 21 | 22-861406 | SOCKET | 1 |
