7.4L Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F800700 Thru 0K999999 - Intake Manifold And Front Cover

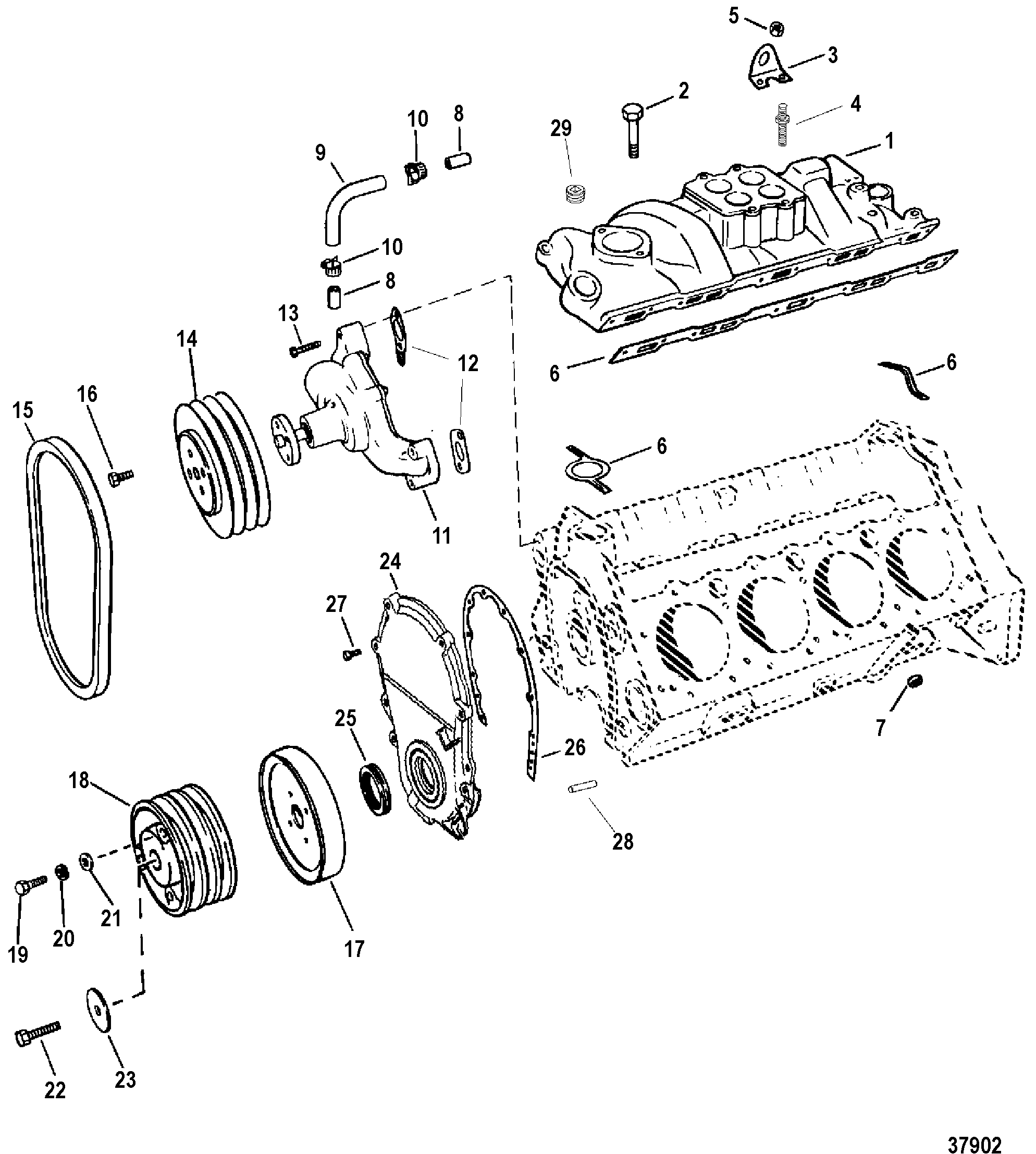

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Weber)
- Carburetor And Flame Arrestor
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (454 Magnum)
- Exhaust Manifold And Exhaust Elbow (7.4L Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing (Standard Cooling)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 811575T | MANIFOLD, Intake | 1 | 811575 | 7.4L BRAVO | |||
| 2 | 10-802655 | BOLT, (3/8-16 x 1.25) (3/8-16 x 1-1/4 in.) | 14 | 10-11975 | 7.4L BRAVO | |||
| 2 | 10-811577 | BOLT (3/8-16 x 1-3/8 in.) | 2 | 7.4L BRAVO | ||||
| 1 | 72608T | MANIFOLD, Intake | 1 | 72608 | This Part is NLA from Mercruiser. (454 MAGNUM) | |||
| 2 | 10-37510 | BOLT, (1.5 In.) | 14 | 454 MAGNUM No longer made, limited availability | ||||
| 2 | 10-805611 | SCREW, (.375-16 x 1.750) | 2 | 10-811574 | 454 MAGNUM | |||
| 3 | 54-64628 | LIFTING EYE | 2 | |||||
| 4 | 16-806250 | STUD | 2 | |||||
| 5 | 11-32219 | NUT, (.375-16) | 2 | |||||
| 6 | 8M0050225 | GASKET SET | 1 | 27-850476 | (7.4L BRAVO) 1 | |||
| 6 | 27-805722A1 | 676-9-61217 | GASKET SET | 1 | (454 MAGNUM) 2 | |||
| 7 | VALVE, Relief, Oil By-Pass | 1 | (30 PSI) | |||||
| 8 | 22-806242 | CONNECTOR | 2 | |||||
| 9 | 32-805987 | HOSE | 1 | |||||
| 10 | 54-815504412 | CLAMP, Worm Gear | 2 | |||||
| 11 | 8504541 | PUMP ASSEMBLY, Water | 1 | 850454 | ||||
| 12 | 27-49110 | 676-9-60066 | 700-31770 | GASKET, Circulating Water Pump Mount | 2 | 1,2 | ||
| 13 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | ||||
| 14 | 19692T01 | PULLEY, (7 In. Diameter) | 1 | 19692T | ||||
| 15 | 57-48122Q | BELT, (48 Inches) | 1 | 57-48122 | ||||
| 16 | 10-47277 | SCREW, (.312-24 x .750) | 4 | |||||
| 17 | 850461001 | BALANCER, Harmonic | 1 | 850461 | (7.4L BRAVO) | |||
| 17 | 845625T2 | BALANCER, Harmonic | 1 | 850460 | (454 MAGNUM) | |||
| 18 | 90081T | PULLEY | 1 | |||||
| 19 | 10-75334 | SCREW, (.375-24 x 3.00) | 3 | This Part is NLA from Mercruiser. (7.4L BRAVO) | ||||
| 19 | 10-358701 | SCREW, (.375-16 x 2.00) | 3 | (454 MAGNUM) | ||||
| 20 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 3 | ||||
| 21 | WASHER | 3 | ||||||
| 22 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | |||||
| 23 | 12-49103 | WASHER | 1 | |||||
| 24 | 845610T | COVER ASSEMBLY, Timing Chain | 1 | 850459 | ||||
| 25 | 26-8219471 | 676-9-61612 | SEAL, Oil | 1 | 1,2 | |||
| 26 | 27-850456 | GASKET, Front Cover Mount, Timing Cover | 1 | 1,2 | ||||
| 27 | 10-850455 | SCREW, (1/4-20 x 0.5) (1/4-20 x 1/2 in.) | 6 | |||||
| 28 | 17-843378 | PIN, Dowel (1/4 In. Diameter) | 1 | 17-35312 | ||||
| 29 | 22-48358T | PLUG, (.375), Intake | 1 | 22-48358 | ||||
| - | 27-850470A96 | GASKET SET, Overhaul | 1 | (7.4L BRAVO) | ||||
| - | 27-850465A96 | GASKET SET, Overhaul | 1 | (454 MAGNUM) |
