465 GM 502 1990-1992 - Serial 0C849992 Thru 0F213244 - Carburetor And Linkage

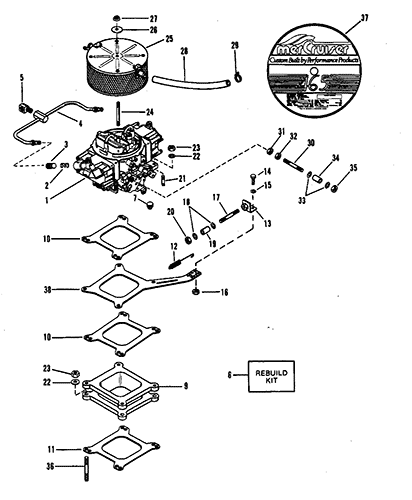

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC - 155603) (D763732,F213244)
- Alternator (Mando AR-150) (C849992 - D763731)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock
- Driveshaft Extension Components (Bravo)
- Electrical Components (C849992-D763731)
- Electrical Components (D763732-F213244)
- Exhaust Manifold - Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug - In Models)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Filter (C849992-D456154)
- Fuel Pump And Fuel Filter (D456155-F213244)
- Intake Manifold And Front Cover
- Miscellaneous Parts - Accessories
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump (C849992-D725646)
- Oil Pan And Oil Pump (D725647-F213244)
- Power Steering Components
- Sea Water Pump (C849992-D725646)
- Sea Water Pump (D725647-F213244)
- Shift Bracket
- Shift Linkage
- Starter And Alternator
- Starter Assembly
- Starter Assembly (Transmission And Driveline Models)
- Thermostat Housing
- Transmission (Driveline)
- Transmission And Tailstock
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 13549A6 | CARBURETOR (BLACK) | 1 | This Part is No Longer Available | |||||
| 1 | 13549A9 | CARBURETOR (BLUE) | 1 | This Part is No Longer Available | |||||
| 2 | 24-48143 | SPRING-Filter | 2 | ||||||
| 3 | 35-93568 | FILTER | 2 | ||||||
| 4 | 32-94068A1 | TUBE-Fuel Inlet | 1 | 32-94068 | |||||
| 5 | 22-93385 | ELBOW-Fuel Inlet Tube | 1 | ||||||
| 6 | 13220 | REBUILD KIT-Carburetor Overhaul | 1 | ||||||
| - | 816827 | PUMP KIT-Accelerator | 1 | This Part is No Longer Available | |||||
| - | 1399-650896 | JET-Main (.118) | 1 | ||||||
| - | 1399-650874 | JET-Main (.081) | 2 | ||||||
| - | 822519 | POWER VALVE | 1 | This Part is No Longer Available | |||||
| 7 | 22-36373 | PLUG (3/8-16)-Intake Manifold Vacuum Hole | 1 | ||||||
| 9 | 815916 | SPACER-Carburetor | 1 | This Part is No Longer Available | |||||
| 10 | 27-41610 | GASKET-Spacer | 2 | 4,5 | |||||
| 11 | 27-814210 | GASKET-Spacer | 1 | 4,5 | |||||
| 12 | 24-897454 | SPRING-Throttle Return | 1 | 24-32817 | |||||
| 13 | 15017 | BRACKET-Throttle | 1 | ||||||
| 14 | 10-78291 | SCREW (3/16-24 x 1/2")-Throttle Bracket | 2 | ||||||
| 15 | 13-26996 | LOCKWASHER (#10)-Throttle Bracket Screw | 2 | ||||||
| 16 | 11-79989 | NUT (10-24)-Throttle Bracket Screw | 2 | ||||||
| 17 | 16-98851 | STUD-Cable | 1 | No longer made, limited availability | |||||
| 18 | 12-69056 | WASHER-Cable Stud | 2 | 12-21631 | |||||
| 19 | 23-31866 | SPACER-Cable Stud | 1 | ||||||
| 20 | 11-826709109 | NUT (1/4-28)-Cable Stud | 1 | 11-35045 | |||||
| 21 | 16-46857 | STUD | 4 | ||||||
| 22 | 12-848136 | WASHER-Carburetor Stud | 8 | 12-39167 | |||||
| 23 | 11-82670911 | NUT (5/16-24)-Carburetor Stud | 8 | 11-35814 | |||||
| 24 | 16-69501 | STUD-Flame Arrestor | 1 | ||||||
| 25 | 8160701 | ARRESTOR-Flame | 1 | 816070 | This Part is No Longer Available | ||||
| 26 | 12-86400 | WASHER-Flame Arrestor Stud | 1 | ||||||
| 27 | 11-35888 | 676-9-72001 | 700-21180 | NUT (1/4-28)-Flame Arrestor Stud | 1 | ||||
| 28 | 32-8M0062669 | HOSE-Vent (Cut as Req'd) | 2 | 32-9331512 | |||||
| 29 | 69355 | STA STRAP-Vent Hose | 4 | ||||||
| 30 | 16-63335 | STUD-Throttle Cable to Carburetor | 1 | This Part is No Longer Available | |||||
| 31 | 11-826709109 | NUT (1/4-28)-Throttle Cable Stud | 1 | 11-35045 | |||||
| 32 | 11-21825 | NUT (1/4-28)-Throttle Cable Stud | 1 | ||||||
| 33 | 12-29245 | 700-21490 | WASHER-Throttle Cable Stud | 3 | |||||
| 34 | 23-818894 | BUSHING-Throttle Cable Stud | 1 | ||||||
| 35 | 11-8267089 | NUT (1/4-28)-Throttle Cable Stud | 1 | 11-20361 | |||||
| 36 | 16-33111 | STUD | 4 | This Part is No Longer Available | |||||
| 37 | 37-1372361 | DECAL | 1 | This Part is No Longer Available | |||||
| 38 | 940701 | BRACKET-Throttle | 1 | ||||||
| 39 | 27-815669A90 | COMPONENTS OF GASKET SET | - | This Part is No Longer Available | |||||
| 40 | 27-811546A98 | COMPONENTS OF GASKET SET | - | 27-811546A93 | This Part is No Longer Available |
