662 SCi - Serial 0M956580 Thru 0M962885 - Electrical Components (Mounting Box)

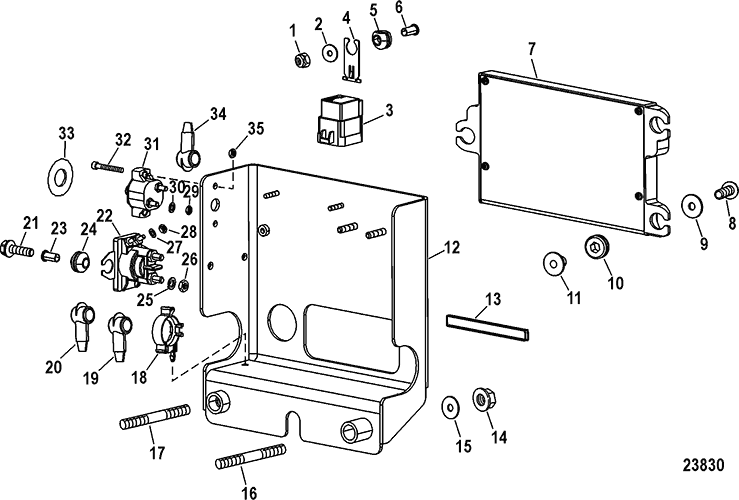

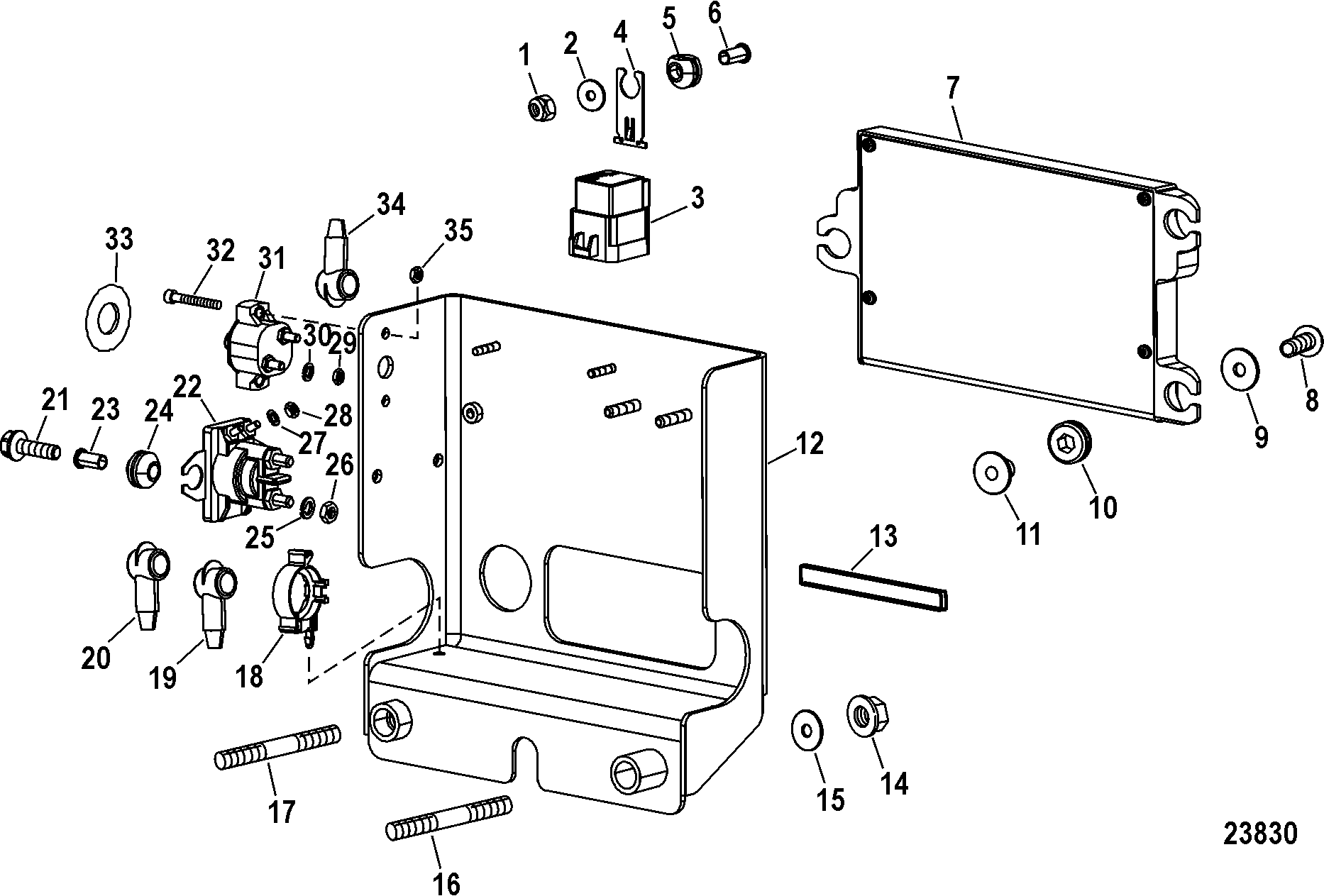

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mercathode)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Driveline)(NXT1)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul(27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Plate Components(NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-8267098 | NUT, (.250-20) Stainless Steel | 3 | ||||||
| 2 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 3 | ||||||
| 3 | 882751A1 | 700-73040 | RELAY ASSEMBLY | 3 | |||||
| 4 | 828102 | BRACKET | 3 | ||||||
| 5 | 25-818967 | GROMMET | 3 | 2 | |||||
| 6 | 23-818968 | BUSHING | 3 | ||||||
| 7 | 840947T16 | PCM, Propulsion Control Module | 1 | 899898T21 | SN# 0M956580 THRU 0M960284 | ||||
| 7 | 840947T16 | PCM, Propulsion Control Module | 1 | 879270T90 | SN# 0M960285 & Up | ||||
| 8 | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 3 | ||||||
| 9 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 10 | 25-834985 | GROMMET | 3 | ||||||
| 11 | 23-856954 | BUSHING | 3 | ||||||
| 12 | 842477002 | BRACKET, Electrical Mounting | 1 | ||||||
| 13 | 8M0062940 | SEAL, 6 Inches | 1 | ||||||
| 14 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | |||||
| 15 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 16 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 1 | ||||||
| 17 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 1 | ||||||
| 18 | 54-853947 | CLIP, Harness Support | 2 | ||||||
| 19 | 85-880786 | BOOT, Insulator - Red | 1 | ||||||
| 20 | 85-880787 | BOOT, Insulator - Yellow | 2 | ||||||
| 21 | 10-828478 | SCREW, (.250-20 x 1.00) Stainless Steel | 2 | ||||||
| 22 | 89-850187T1 | SOLENOID ASSEMBLY | 1 | ||||||
| 23 | 23-818968 | BUSHING | 2 | ||||||
| 24 | 25-818967 | GROMMET | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 26 | 11-94330 | NUT, (.250-20) Brass | 2 | ||||||
| 27 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 28 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 29 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 30 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 31 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 32 | 10-96113 | SCREW, (#10-32 x .880) Stainless Steel | 2 | ||||||
| 33 | 37-72554 | DECAL, Circuit Breaker | 1 | ||||||
| 34 | 85-880786 | BOOT, Insulator - Red | 2 | ||||||
| 35 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
