525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Fuel Pump and Carburetor and Linkage

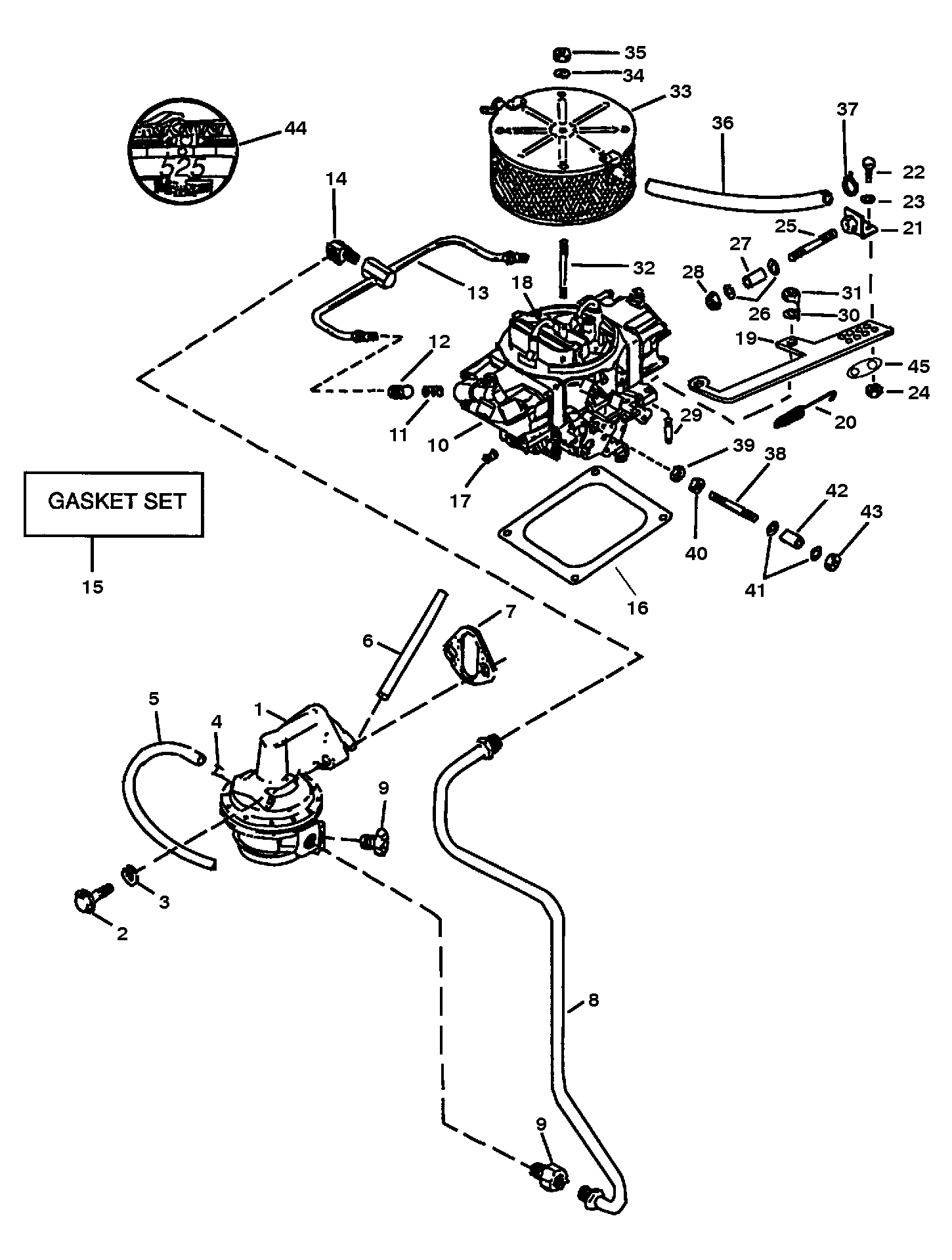

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 92864 | PUMP ASSEMBLY-Fuel | 1 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 2 | 10-37612 | SCREW (.375-16 x 1.250) | 2 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER (.375) | 2 | (S/N: 0D456000 - 0D725808) 5 | ||||
| 4 | 22-85822 | CONNECTOR-Fuel Pump | 1 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 5 | 32-9337070 | SIGHT TUBE | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 6 | 35377 | ROD-Fuel Pump | 1 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 7 | 27-34213 | 676-9-61041 | 700-31360M | GASKET-Fuel Pump | 1 | (S/N: 0D456000 - 0D725808) 14,5 | |||
| 8 | 32-817130 | FUEL LINE-Pump to Carb | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 9 | 22-33821 | FITTING | 2 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 10 | 846000T3 | CARBURETOR ASSEMBLY (BLACK) | 1 | 12377A5 | This Part is No Longer Available | ||||
| 10 | 846000T3 | CARBURETOR ASSEMBLY (BLUE) | 1 | 12377A6 | This Part is No Longer Available | ||||
| 11 | 24-48143 | SPRING-Filter | 2 | ||||||
| 12 | 35-93568 | 676-9-37825 | FILTER | 2 | |||||
| 13 | 32-12837A1 | LINE-Fuel Inlet | 1 | 32-12837 | This Part is No Longer Available | ||||
| 14 | 22-93385 | FITTING-Fuel Inlet Tube | 1 | ||||||
| 15 | 27-42270A1 | GASKET SET | 1 | ||||||
| 16 | 27-42270A1 | GASKET-Flange | 1 | 27-12732 | 14 | ||||
| 17 | 1399-650898 | JET-Main (.125) (Primary-Port) | 1 | ||||||
| 17 | 1399-650898 | JET-Main (.125) (Primary-Starboard) | 1 | ||||||
| 17 | 1399-650898 | JET-Main (.125) (Secondary-Port) | 1 | ||||||
| 17 | 1399-650898 | JET-Main (.125) (Secondary-Starboard) | 1 | ||||||
| 18 | 32-42265 | TUBE-Vent | 2 | ||||||
| - | 1396-9859 | GASKET-Fuel Intake | 1 | ||||||
| - | 1396-9860 | POWER VALVE | 1 | ||||||
| - | 1396-9861 | NEEDLE/SEAT KIT | 1 | This Part is No Longer Available | |||||
| - | 848749 | FLOAT-Center Inlet | 1 | 1396-9862 | |||||
| 19 | 128493 | BRACKET-Throttle | 1 | 128492 | This Part is No Longer Available | ||||
| 20 | 24-897454 | SPRING-Throttle Return | 1 | 24-32817 | |||||
| 21 | 15017 | BRACKET-Throttle | 1 | ||||||
| 22 | 10-78291 | SCREW (.375-24 x .500) | 2 | ||||||
| 23 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 24 | 11-79989 | NUT (#10-24) | 2 | ||||||
| 25 | 16-98851 | STUD-Cable | 1 | No longer made, limited availability | |||||
| 26 | 12-69056 | WASHER-Cable Stud | 2 | 12-21631 | |||||
| 27 | 23-31866 | SPACER-Cable Stud | 1 | ||||||
| 28 | 11-826709109 | 525-11-826709109 | NUT (.250-28) | 1 | 11-35045 | ||||
| 29 | 16-96108 | STUD-Carburetor | 4 | This Part is No Longer Available | |||||
| 30 | 12-20084 | 00-21664 | WASHER (.562)-Carburetor Stud | 2 | |||||
| 30 | 12-848136 | WASHER (.687)-Carburetor Stud | 2 | 12-39167 | |||||
| 31 | 11-82670911 | NUT (.312-24)-Carburetor Stud | 4 | 11-35814 | |||||
| 32 | 16-30668 | STUD-Flame Arrestor | 1 | ||||||
| 33 | 123752 | ARRESTOR-Flame | 1 | 123751 | This Part is No Longer Available | ||||
| 34 | 12-22753 | WASHER-Flame Arrestor Stud | 1 | ||||||
| 35 | 11-82670911 | NUT (.312-24)-Flame Arrestor Stud | 1 | 11-35814 | |||||
| 36 | 32-8M0062669 | HOSE-Vent (20.500 In. Bulk) (Cut 11.00 In.) | 2 | 32-9331512 | 5 | ||||
| 36 | 32-82128433 | HOSE-Vent (14.00 In.) | 2 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 37 | 69355 | STA STRAP-Vent Hose | 4 | 5 | |||||
| 37 | 54-84763012 | CLAMP-Hose | 4 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 38 | 16-728091 | STUD-Throttle Cable to Carburetor | 1 | 16-72809 | |||||
| 39 | 11-826709109 | 525-11-826709109 | NUT (.250-28)-Throttle Cable Stud | 1 | 11-35045 | ||||
| 40 | 11-21825 | NUT (.250-28)-Throttle Cable Stud | 1 | ||||||
| 41 | 12-29245 | 700-21490 | WASHER-Throttle Cable Stud | 2 | |||||
| 42 | 23-53811 | SPACER-Throttle Cable Stud | 1 | ||||||
| 43 | 11-8267098 | NUT (.250-20)-Throttle Cable Stud | 1 | 11-56374 | |||||
| 44 | 37-1372363 | DECAL-Carburetor Cover | 1 | ||||||
| 45 | 53-782012 | CLIP | 1 | This Part is No Longer Available | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
