SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assy (Driveshaft and Propshaft) (III)

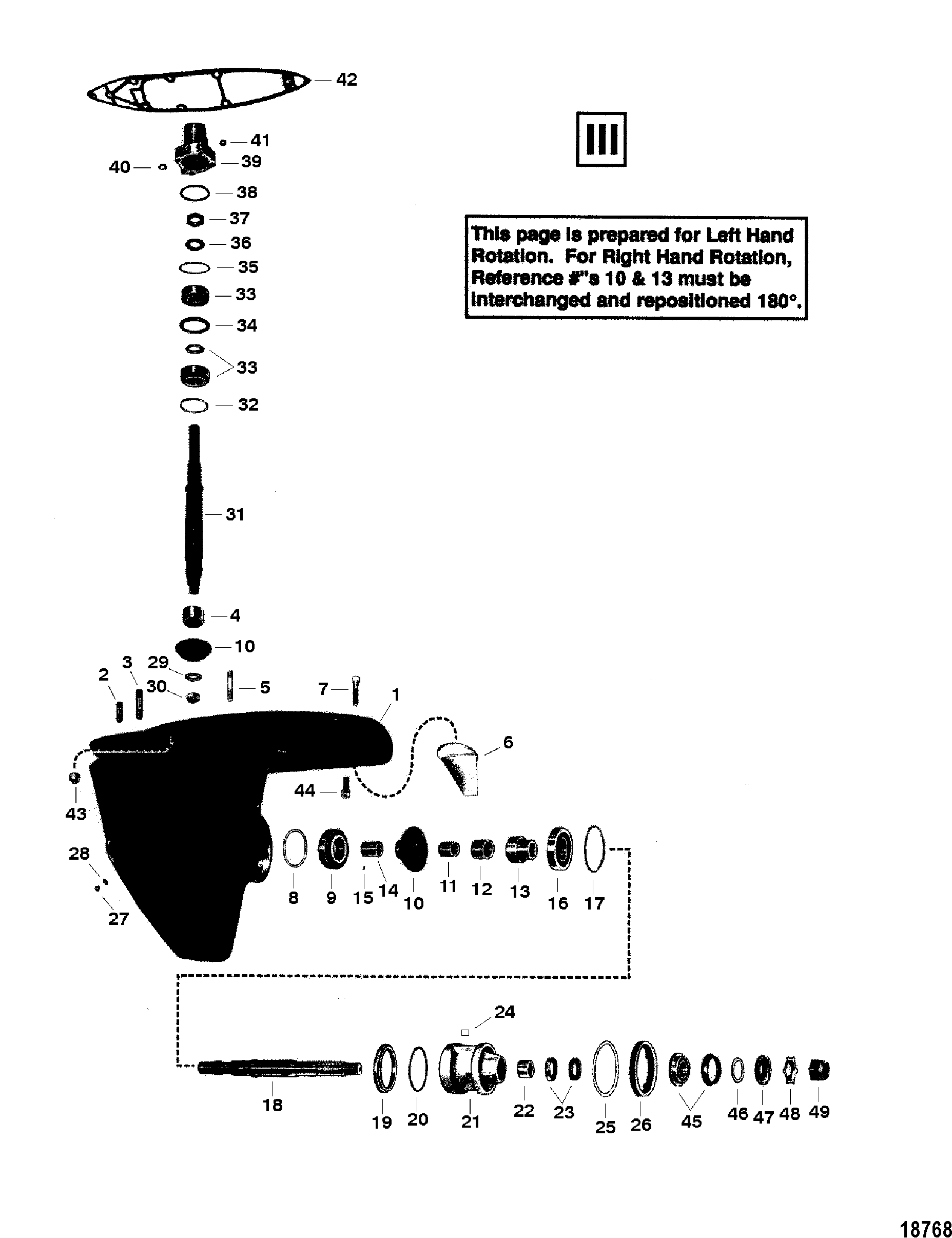

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1636-4354A3 | GEAR HOUSING ASSEMBLY (BASIC) | 1 | This Part is No Longer Available | |||||
| 2 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 1 | ||||||
| 3 | 16-57985 | STUD (2.810) | 1 | 16-57986 | |||||
| 4 | 31-35246 | BEARING, Roller | 1 | ||||||
| 5 | 16-57981 | STUD (.375-16 x 3.00) | 4 | This Part is No Longer Available | |||||
| 6 | 31640Q4 | TRIM TAB ASSEMBLY | 1 | 31640A1 | |||||
| 7 | 10-41350 | SCREW, (.437-14 x 2.50) Stainless Steel | 1 | ||||||
| 8 | 15-47295A1 | SHIM ASSEMBLY | AR | This Part is No Longer Available | |||||
| 9 | 31-47484A1 | BEARING ASSEMBLY, Tapered Roller | 1 | This Part is No Longer Available | |||||
| 10 | 43-53572A2 | GEAR ASSEMBLY (Pinion and Drive) | 1 | This Part is No Longer Available | |||||
| 11 | 23-48016 | SPACER | 1 | This Part is No Longer Available | |||||
| 12 | 23-48015 | SPACER | 1 | This Part is No Longer Available | |||||
| 13 | 53516 | ADAPTOR | 1 | This Part is No Longer Available | |||||
| 14 | 23-48011 | SLEEVE | 1 | This Part is No Longer Available | |||||
| 15 | 17-53308 | PIN, Dowel | 1 | ||||||
| 16 | 31-47484A1 | BEARING ASSEMBLY, Tapered Roller | 1 | This Part is No Longer Available | |||||
| 17 | 15-47297A1 | SHIM ASSEMBLY | AR | This Part is No Longer Available | |||||
| 18 | 44-53185A1 | PROPELLER SHAFT ASSEMBLY (1.250-12) | 1 | This Part is No Longer Available | |||||
| 19 | 47307 | RING, Thrust | 1 | This Part is No Longer Available | |||||
| 20 | 25-47298 | O-RING | 1 | This Part is No Longer Available | |||||
| 21 | 52623A2 | CARRIER ASSEMBLY, Bearing, Bearing | 1 | This Part is No Longer Available | |||||
| 22 | 31-47946 | BEARING, Roller | 1 | No longer made, limited availability | |||||
| 23 | 26-19473 | SEAL, Oil | 2 | ||||||
| 24 | 28-30281 | KEY | 1 | ||||||
| 25 | 14-52553 | TAB WASHER | 1 | This Part is No Longer Available | |||||
| 26 | 52622 | COVER | 1 | This Part is No Longer Available | |||||
| 27 | 10-79953Q04 | SCREW, (.375-16 x .250) | 1 | 10-79953 | |||||
| 28 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 29 | 12-32073 | WASHER | 1 | This Part is No Longer Available | |||||
| 30 | 11-858869 | NUT, (.875-14) | 1 | 11-56041 | |||||
| 31 | 45-47323 | DRIVESHAFT | 1 | This Part is No Longer Available | |||||
| 32 | 15-39808A1 | SHIM ASSEMBLY | AR | No longer made, limited availability | |||||
| 33 | 31-47669A2 | BEARING ASSEMBLY, Tapered Roller | 1 | This Part is No Longer Available | |||||
| 34 | 23-47603 | ELBOW | 1 | This Part is No Longer Available | |||||
| 35 | 15-39808A1 | SHIM ASSEMBLY | AR | No longer made, limited availability | |||||
| 36 | 12-56042 | WASHER | 1 | ||||||
| 37 | 11-34826 | NUT (1.250-16) | 1 | This Part is No Longer Available | |||||
| 38 | 25-20081 | O-RING (Large) | 1 | ||||||
| 39 | 47315 | RETAINER | 1 | This Part is No Longer Available | |||||
| 40 | 25-45711 | O-RING, (.612 x .103) (Small) | 1 | ||||||
| 41 | 11-82671013 | NUT, (.375-24) | 4 | 11-34932 | |||||
| 42 | 27-47317 | GASKET | 1 | ||||||
| 43 | 11-47302 | NUT, (.562-18) Stainless Steel | 6 | ||||||
| 44 | 10-47557 | SCREW, (.500-13 x 1.500) | 1 | This Part is No Longer Available. | |||||
| 45 | 48018A1 | THRUST HUB AND WASHER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 46 | 12-37763 | WASHER, Thrust | 1 | This Part is No Longer Available | |||||
| 47 | 12-48014 | WASHER | 1 | This Part is No Longer Available | |||||
| 48 | 14-48012 | TAB WASHER | 1 | This Part is No Longer Available | |||||
| 49 | 11-17844 | NUT (1.250-12) | 1 | This Part is No Longer Available |
