SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (III SSM)

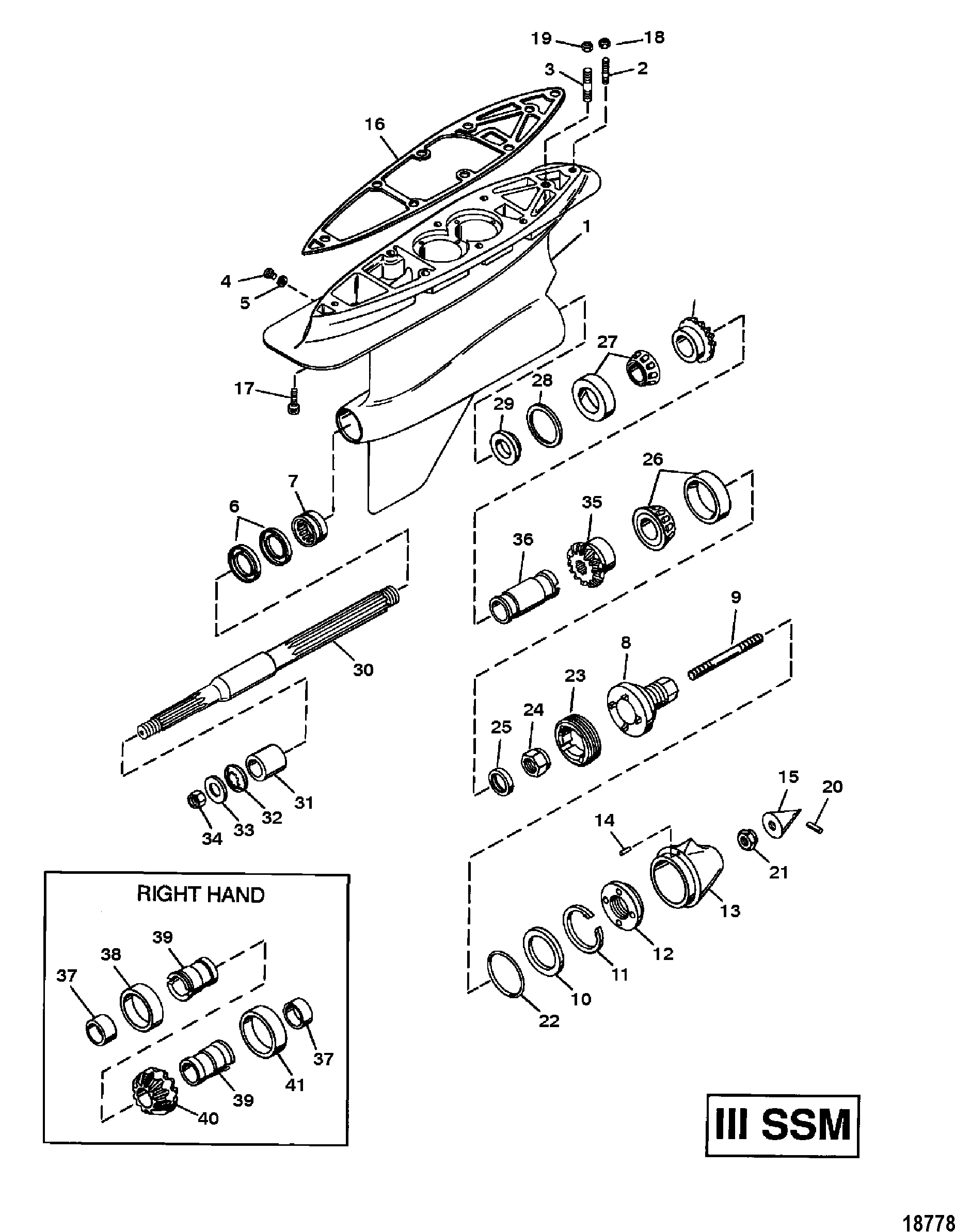

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1664-8509A1 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available (Basic) | |||||
| 2 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 1 | ||||||
| 3 | 16-57985 | STUD (2.810) | 1 | 16-57986 | |||||
| 4 | 10-79953Q04 | SCREW, (.375-16 x .250) | 1 | 10-79953 | |||||
| 5 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 6 | 26-19473 | SEAL, Oil | 3 | 1 | |||||
| 7 | 31-39832T | BEARING, Roller | 1 | 31-39832 | 1 | ||||
| 8 | 53061 | ANCHOR, Stud | 1 | This Part is No Longer Available | |||||
| 9 | 16-53064 | STUD, Nose Cone | 1 | ||||||
| 10 | 12-39821 | WASHER | 1 | This Part is No Longer Available | |||||
| 11 | 53-35128 | RING, Retaining | 1 | ||||||
| 12 | 39803 | COVER | 1 | This Part is No Longer Available | |||||
| 13 | 98023 | NOSE CONE | 1 | This Part is No Longer Available | |||||
| 14 | 17-30282 | PIN | 1 | ||||||
| 15 | 98036 | CAP, Nose Cone | 1 | ||||||
| 16 | 27-47317 | GASKET | 1 | 1 | |||||
| 17 | 10-47557 | SCREW, (.500-13 x 1.500) | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 18 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 1 | 1 | ||||
| 19 | 11-47302 | NUT, (.562-18) Stainless Steel | 1 | 1 | |||||
| 20 | 65700 | PLUG | 1 | 1 | |||||
| 21 | 11-47379 | NUT, (.625-18) Stainless Steel | 1 | 1 | |||||
| 22 | 25-39828 | O-RING | 1 | 1 | |||||
| 23 | 11-53060 | NUT | 1 | 1 | |||||
| 24 | 11-39825 | NUT (1.250-12) | 1 | 1 | |||||
| 25 | 23-846409 | WASHER | 1 | 12-42262 | 1 | ||||
| 26 | 31-39772T1 | BEARING, Roller | 1 | 31-39772A1 | |||||
| 27 | 31-39770T1 | BEARING, Roller | 1 | 31-39770A1 | |||||
| 28 | 15-39809A1 | SHIM SET | AR | ||||||
| 29 | 12-39818 | WASHER | 1 | This Part is No Longer Available | |||||
| 30 | 44-85187T | PROPELLER SHAFT | 1 | 44-85187 | This Part is No Longer Available | ||||
| 31 | 23-87753T | SPACER | AR | 23-87753 | This Part is No Longer Available (LONG PROPELLER HUB ONLY) | ||||
| 32 | 12-39820 | WASHER | 1 | 1 | |||||
| 33 | 12-39817 | WASHER, Special - Stainless Steel | 1 | 1 | |||||
| 34 | 11-82671127 | NUT (1.00-14) | 1 | 11-39907 | 1 | ||||
| 35 | 43-16768A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (LH - 1.00:1) | |||||
| 35 | 43-78095A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (LH - 1.125:1) | |||||
| 36 | 23-53070 | SPACER | 1 | (LH GEAR SET) | |||||
| 37 | 23-53067 | SPACER | 2 | This Part is No Longer Available (RH GEAR SET) | |||||
| 38 | 23-53068 | SPACER | 1 | This Part is No Longer Available (RH GEAR SET) | |||||
| 39 | 91846 | SPACER | 2 | (RH GEAR SET) | |||||
| 40 | 43-16769A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (RH - 1.00:1) | |||||
| 40 | 43-78096A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (RH - 1.125:1) | |||||
| 41 | 23-53066 | SPACER | 1 | This Part is No Longer Available (RH GEAR SET) | |||||
| - | 1664-8509A13 | REBUILD KIT | 1 | 1664-8509A10 | This Part is No Longer Available |
