M8 Drive - Serial 0M964870 and Up - Gear Housing Assembly, Propshaft

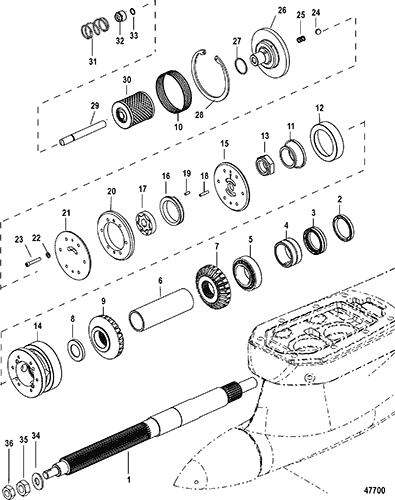

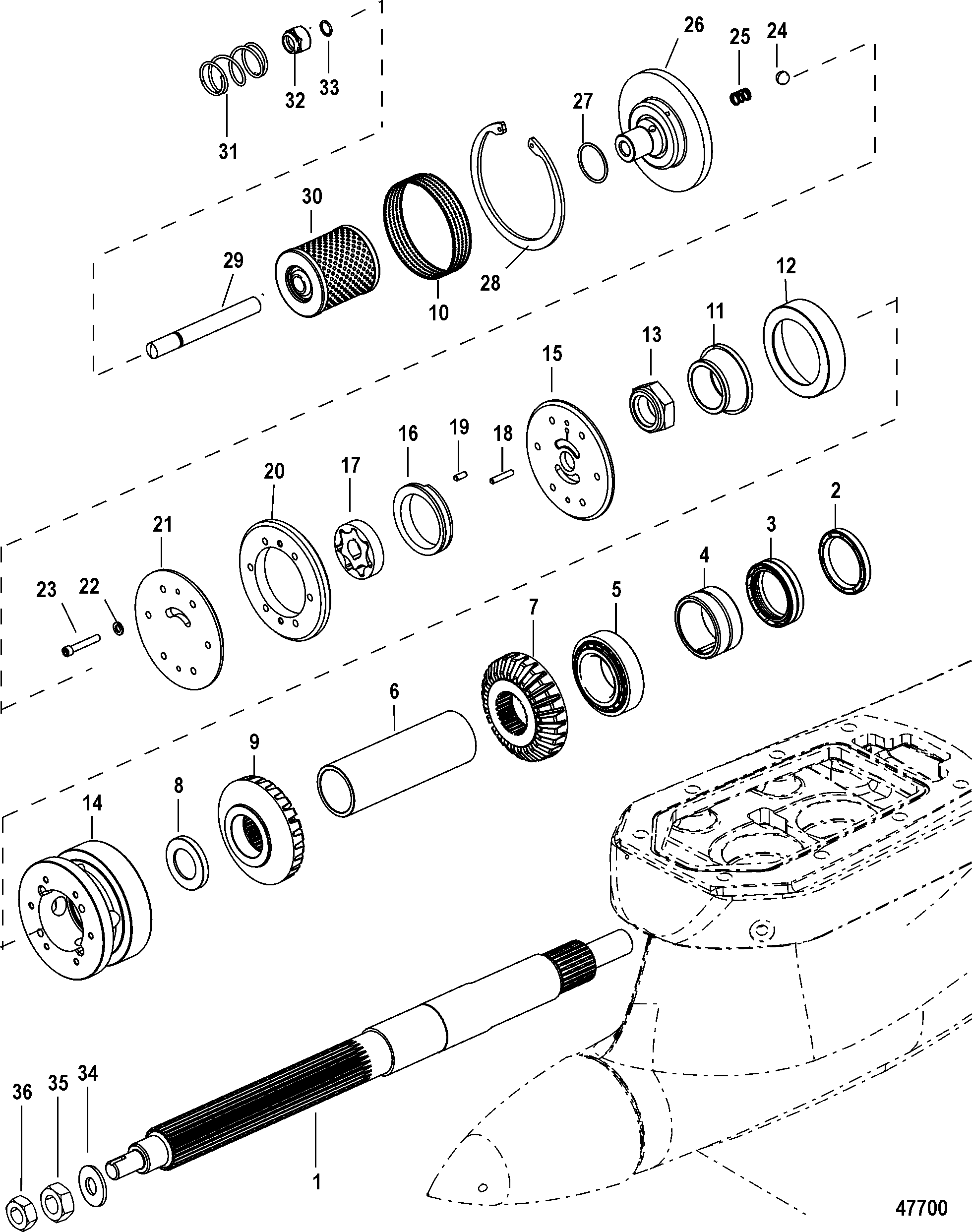

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1600-8M8026002 | GEAR HOUSING ASSEMBLY, Left Hand, Complete | 1 | ||||||
| - | 1600-8M8026003 | GEAR HOUSING ASSEMBLY, Right Hand, Complete | 1 | ||||||
| 1 | 44-8M0063383 | PROPSHAFT, M8 Drive | 1 | ||||||
| 2 | 26-8M0043933 | SEAL, Outer | 1 | ||||||
| 3 | 26-8M0043243 | SEAL, Inner | 1 | ||||||
| 4 | 31-8M0043244 | BEARING, Needle | 1 | ||||||
| 5 | 31-30894A1 | BEARING SET, Cup And Cone | 1 | ||||||
| - | 8M0060045 | BEARING KIT | 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, GEAR, 25 Teeth | 2 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | |||||
| 9 | NSS | NOT SOLD SEPARATE, GEAR, 25 Teeth | 2 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, SCREEN | 1 | This Part is not sold separately | |||||
| 11 | NSS | NOT SOLD SEPARATE, BEARING, Cone | 1 | This Part is not sold separately | |||||
| 12 | NSS | NOT SOLD SEPARATE, BEARING, Cup | 1 | This Part is not sold separately | |||||
| 13 | 11-841894 | NUT, (1.250-12) | 1 | ||||||
| 14 | NSS | NOT SOLD SEPARATE, RETAINER | 1 | This Part is not sold separately | |||||
| 15 | NSS | NOT SOLD SEPARATE, PLATE | 1 | This Part is not sold separately | |||||
| 16 | 849958 | RING | 1 | ||||||
| 17 | 8M0051197 | GEROTOR ASSEMBLY | 1 | ||||||
| 18 | 17-72148 | PIN, Dowel | 2 | ||||||
| 19 | 17-85500 | PIN, Dowel (.187 x .530) | 3 | ||||||
| 20 | NSS | NOT SOLD SEPARATE, PLATE | 1 | This Part is not sold separately | |||||
| 21 | NSS | NOT SOLD SEPARATE, GEAR, 25 Teeth | 1 | This Part is not sold separately | |||||
| 22 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 6 | ||||||
| 23 | NSS | NOT SOLD SEPARATE, SCREW | 6 | This Part is not sold separately | |||||
| 24 | 30-45964 | BALL, (.500) Steel | 1 | ||||||
| 25 | 24-71641 | SPRING | 1 | ||||||
| 26 | NSS | NOT SOLD SEPARATE, ANCHOR | 1 | This Part is not sold separately | |||||
| 27 | 25-457101 | O-RING, (1.424 x .103) | 1 | 25-45710 | |||||
| 28 | NSS | NOT SOLD SEPARATE, SNAP RING | 1 | This Part is not sold separately | |||||
| 29 | 16-840149 | STUD, (.625-11/.625-18 x 5.560) | 1 | ||||||
| 30 | 8M0051191 | FILTER, Oil | 1 | ||||||
| 31 | 24-62727 | SPRING | 1 | ||||||
| 32 | 11-47379 | NUT, (.625-18) Stainless Steel | 1 | ||||||
| 33 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| 34 | 12-39817 | WASHER, Special - Stainless Steel | 1 | ||||||
| 35 | 11-8M0035647 | NUT, (1.00-14) Brass | 1 | ||||||
| 36 | 11-826135 | NUT, (1.00-14) Nylon Insert | 1 |
