TR-TRS - Serial 4794900 and Up - Trim Cylinder Repair Kits (Internal Lines)

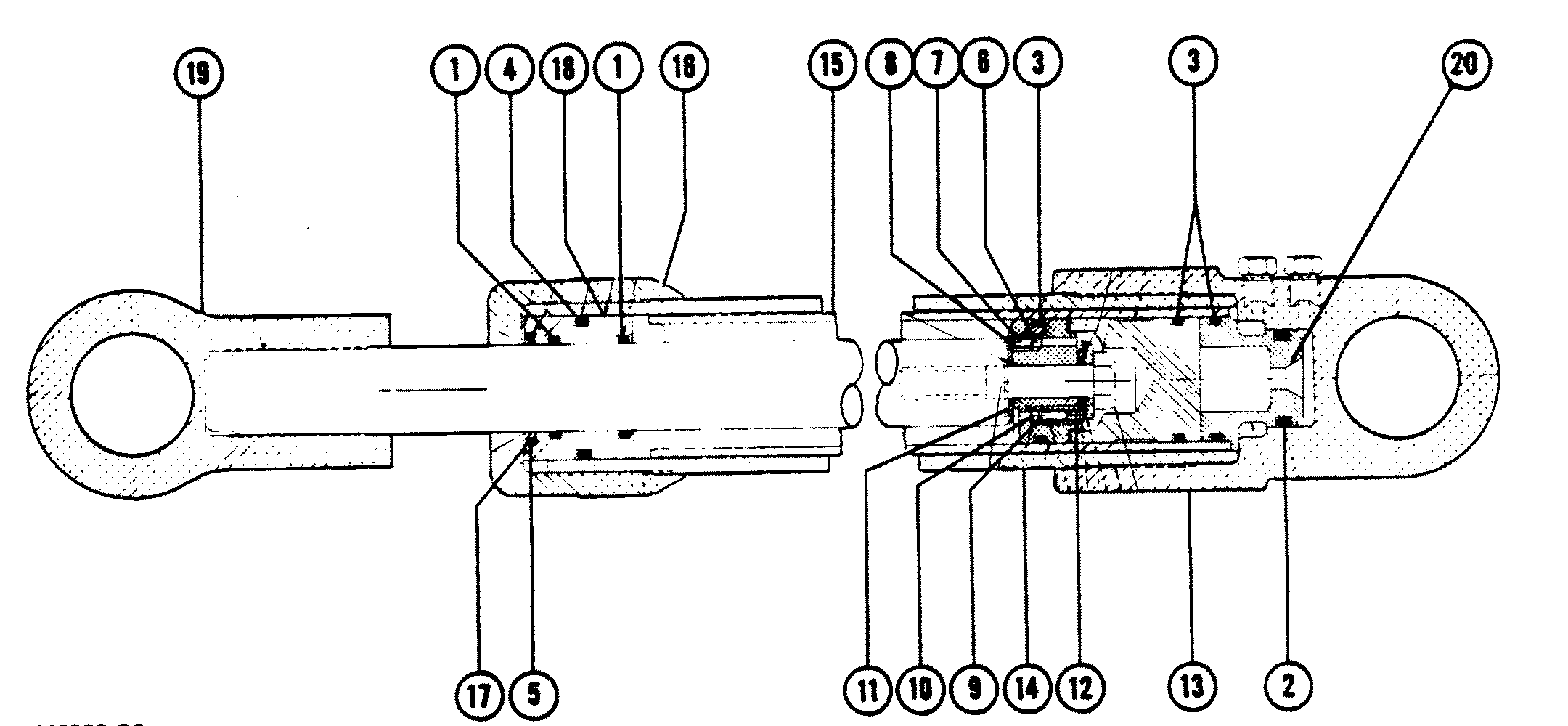

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Note: DO NOT SUBSTITUTE "O" RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 25-47389A2 | O-RING KIT | 1 | 25-47389A1 | |||||
| 1 | N.S.S. | NOT SOLD SEPARATE O-RING (1" X 1-3/16" X 3/32") | 2 | This part sold separately 14 | |||||
| 2 | N.S.S. | NOT SOLD SEPARATE O-RING (7/8" X 1-1/8" X 1/8") | 1 | This part sold separately14 | |||||
| 3 | N.S.S. | NOT SOLD SEPARATE O-RING (1-1/4" X 1-7/16" X 3/32") | 3 | This part sold separately14 | |||||
| 4 | N.S.S. | NOT SOLD SEPARATE O-RING (1-3/8" X 1-5/8" X 1/8") | 1 | This part sold separately14 | |||||
| 5 | N.S.S. | NOT SOLD SEPARATE ROD SCRAPER | 1 | This part sold separately14 | |||||
| -- | 47348A1 | SHOCK PISTON ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 6 | N.S.S. | NOT SOLD SEPARATE BALL, STEEL | 8 | This part sold separately14 | |||||
| 7 | N.S.S. | NOT SOLD SEPARATE RIVET, TUBULAR | 1 | This part sold separately14 | |||||
| 8 | N.S.S. | NOT SOLD SEPARATE SPRING, COMPRESSION | 1 | This part sold separately14 | |||||
| 9 | N.S.S. | NOT SOLD SEPARATE RIVET, TUBULAR | 7 | This part sold separately14 | |||||
| 10 | N.S.S. | NOT SOLD SEPARATE PISTON, SHOCK | 1 | This part sold separately14 | |||||
| 11 | N.S.S. | NOT SOLD SEPARATE WASHER, SEALING | 1 | This part sold separately14 | |||||
| 12 | N.S.S. | NOT SOLD SEPARATE SPRING, COMPRESSION | 7 | This part sold separately14 | |||||
| -- | 47342A22 | OUTER CYLINDER ASSEMBLY, 13-3/4" IN LENGTH | 1 | 47342A9 | |||||
| 13 | N.S.S. | NOT SOLD SEPARATE END CAP, CYLINDER | 1 | This part sold separately14 | |||||
| 14 | N.S.S. | NOT SOLD SEPARATE TUBE, OUTER - 13-3/4" IN LENGTH | 1 | This part sold separately14 | |||||
| -- | 47342A25 | OUTER CYLINDER ASSEMBLY, 11-3/8" IN LENGTH | 1 | 47342A10 | This Part is No Longer Available | ||||
| 13 | N.S.S. | NOT SOLD SEPARATE END CAP, CYLINDER | 1 | This part sold separately14 | |||||
| 14 | N.S.S. | NOT SOLD SEPARATE TUBE, OUTER - 11-3/8" IN LENGTH | 1 | This part sold separately14 | |||||
| 15 | 32-47387 | INNER CYLINDER TUBE ASS'Y (12-1/2" IN LENGTH) | 1 | 32-47387A1 | |||||
| 15 | 32-49275A1 | INNER CYLINDER TUBE ASS'Y (10-1/8" IN LENGTH) | 1 | This Part is No Longer Available | |||||
| -- | 55825A1 | END CAP ASSEMBLY | 1 | ||||||
| 16 | N.S.S. | NOT SOLD SEPARATE END CAP | 1 | This part sold separately14 | |||||
| 17 | N.S.S. | NOT SOLD SEPARATE WASHER, END CAP | 1 | This part sold separately14 | |||||
| -- | 23-57093A1 | BUSHING KIT | 1 | This Part is No Longer Available | |||||
| 18 | 55824 | BEARING, PISTON ROD | 1 | ||||||
| 19 | 47343T | PIVOT END | 1 | 47343 | No longer made, limited availability | ||||
| 20 | 47344 | GUIDE, INNER TUBE | 1 | ||||||
