TR-TRS - Serial 4794900 and Up - Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)

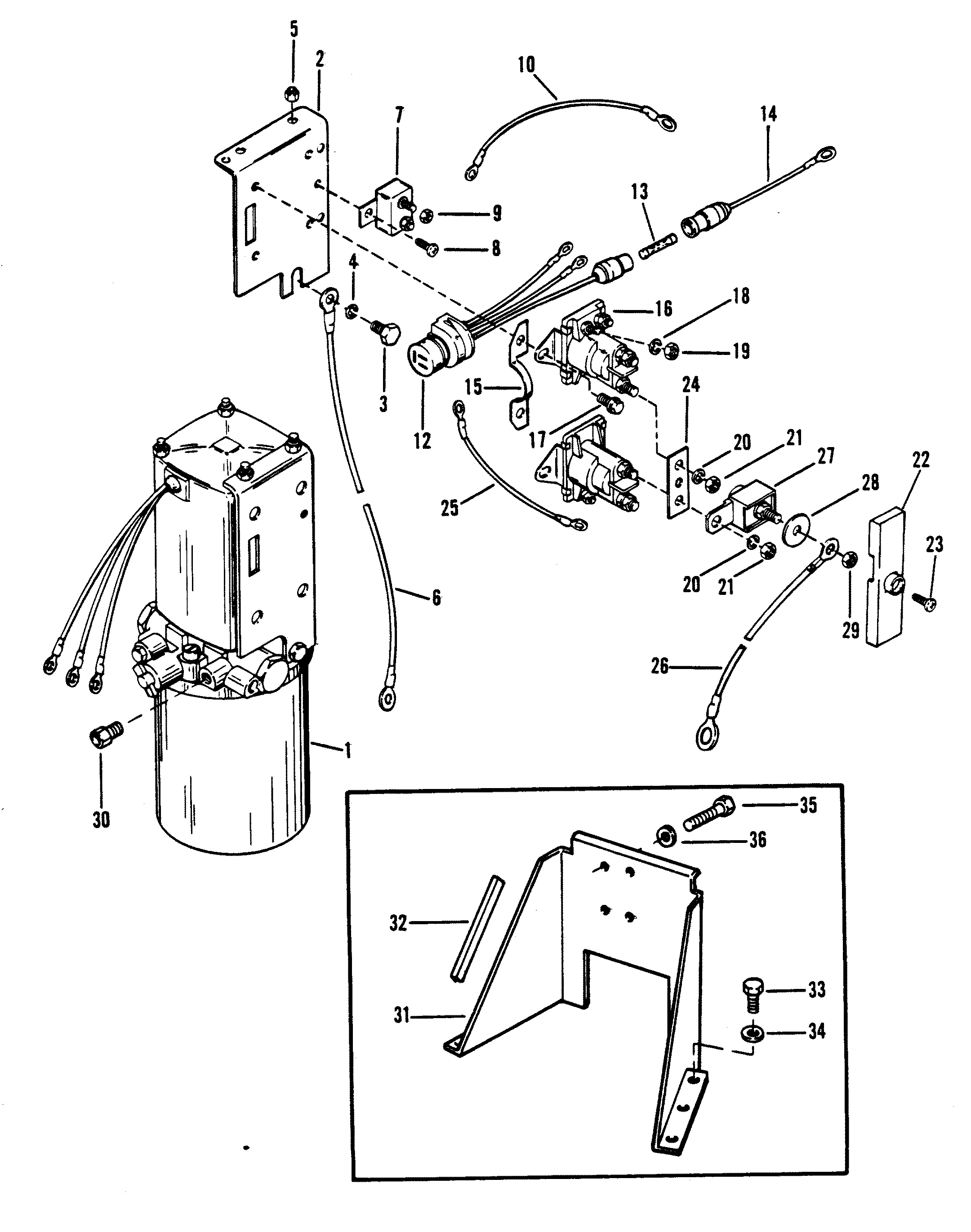

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Control Panel (Prestolite Pump Use With ERL)
- Drive Shaft Housing And Gear Assembly
- Gear Housing (TR)
- Gear Housing (TRS)
- Gimbal Housing
- Gimbal Ring And Steering Lever
- Hydraulic Pump (Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Metal Reservoir)
- Hydraulic Pump (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump (Plastic Reservoir)
- Hydraulic Pump (Prestolite Pump)
- Hydraulic Pump And Bracket (Oildyne Pump Metal Reservoir)
- Hydraulic Pump And Bracket (Oildyne Pump Plastic Reservoir)
- Hydraulic Pump And Bracket (Prestolite Pump Use With Erl)
- Hydraulic Pump And Bracket (Prestolite Pump)
- Miscellaneous Parts-Accessories
- Power Steering Components
- Transom Plate
- Trim Cylinder And Hoses (Internal Lines)
- Trim Cylinder Repair Kits (External Lines)
- Trim Cylinder Repair Kits (Internal Lines)
- Trim Cylinders And Hoses (External Lines)
| Note: COMPLETE HYDRAULIC PUMP [88183A12] (INCLUDES ALL PARTS ON THIS PAGE) | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865380A13 | HYDRAULIC PUMP ASSEMBLY | 1 | 88183A5 | |||||
| 2 | 90426F1 | BRACKET, MOUNTING - STARTER SOLENOID | 1 | 90426T | |||||
| 3 | 10-90285 | SCREW, MOUNTING BRACKET (5/8") | 1 | ||||||
| 4 | 12-56720 | WASHER, MOUNTING BRACEKT SCREW | 1 | ||||||
| 5 | 11-29488 | 700-21163 | NUT, MOUNTING BRACKET TO HYDRAULIC PUMP | 2 | No longer made, limited availability | ||||
| 6 | 84-79138A9 | BATTEY CABLE, BLACK (NEGATIVE) | 1 | ||||||
| 7 | 88-79149 | CIRCUIT BREAKER (20 AMP.) | 1 | ||||||
| 8 | 10-807754 | SCREW, CIRCUIT BREAKER | 1 | 10-69014 | |||||
| 9 | 11-45076 | NUT, CIRCUIT BREAKER TERMINAL | 2 | ||||||
| 10 | 84-87379A5 | WIRE, SOLENOID TO SOLENOID (RED) | 1 | no longer made, limited availability | |||||
| 12 | 84-79147A3 | HARNESS ASSEMBLY, HYDRAULIC PUMP | 1 | ||||||
| 13 | 88-79091 | FUSE (20 AMP.) | 1 | ||||||
| 14 | 84-95084A2 | WIRE, FUSE | 1 | ||||||
| 15 | 88075 | RETAINER, HARNESS TO MOUNTING BRACKET | 1 | ||||||
| 16 | 89-96158T | SOLENOID, TRIM PUMP | 2 | 89-96158 | |||||
| 17 | 10-41508 | SCERW, STARTER SOLENOID TO BRACKET (3/8") | 4 | ||||||
| 18 | 13-26995 | LOCKWASHER, STARTER SOLENOID TERMINAL (#8) | 4 | ||||||
| 19 | 11-26419 | NUT, STARTER SOLENOID TERMINAL (#8-32) | 4 | ||||||
| 20 | 13-26992 | LOCKWASHER, STARTER SOLENOID TERMINAL (1/4") | 4 | ||||||
| 21 | 11-94330 | NUT, STARTER SOLENOID TERMINAL (1/4-20) | 4 | ||||||
| 22 | 85-861680 | BOOT, RUBBER - STARTER SOLENOID TERMINAL | 1 | 85-96535 | |||||
| 23 | 10-48409 | SCREW, SOLENOID INSULATOR | 1 | 10-32024 | |||||
| 24 | 94275 | CONNECTOR, SOLENOID TO SOLENOID | 1 | ||||||
| 25 | 84-86322A15 | WIRE, SOLENOID TO SOLENOID (BLACK) | 1 | ||||||
| 26 | 84-79139A12 | BATTERY CABLE, RED (POSITIVE) | 1 | ||||||
| 27 | 79023T10 | FUSE (110 AMP.) | 1 | 88-79023A10 | |||||
| 28 | 12-96457 | WASHER, FUSE TERMINAL | 1 | ||||||
| 29 | 11-21825 | NUT, FUSE TERMINAL | 1 | ||||||
| 30 | 22-89029 | ADAPTOR, HYDRAULIC PUMP | 1 | ||||||
| 31 | 862548A1 | BRACKET ASS'Y, MOUNTING - HYD. PUMP (FLOOR MOUNTED) | 1 | 88893A4 | |||||
| 32 | 58491 | BUMPER, RUBBER - PUMP MOUNTING BRACKET | 2 | ||||||
| 33 | 10-59784 | SCREW, PUMP MOUNTING BRACKET ATTACHING (1") | 6 | ||||||
| 34 | 12-29245 | WASHER, PUMP MOUNTING BRACKET SCREW | 6 | ||||||
| 35 | 10-90271 | SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET | 2 | ||||||
| 36 | 13-58643 | LOCKWASHER, HYDRAULIC PUMP SCREW | 2 | ||||||
| 37 | 865380A25 | COMPLETE HYDRAULIC PUMP (INCLUDES ALL PARTS ON THIS PAGE) | 88183A12 | ||||||
