Bravo Three - Serial 0W250000 and Up - Transom Plate and Shift Cable

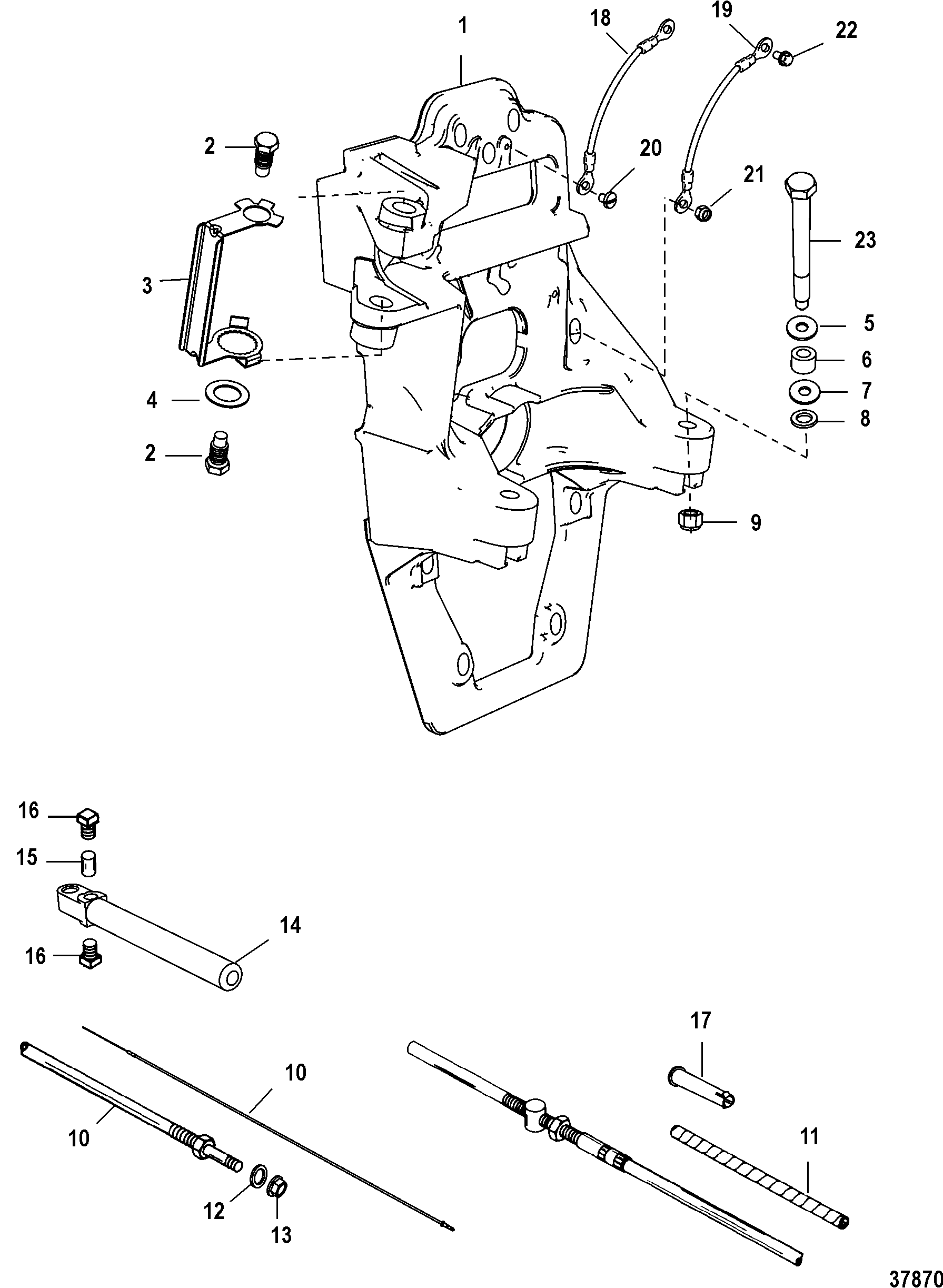

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, BRAVO I-II-III (Standard)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44117A8 | PLATE ASSEMBLY, Transom | 1 | ||||||
| 2 | 10-42253 | BOLT, Pivot | 2 | ||||||
| 3 | 14-879150A34 | WASHER ASSEMBLY, Pivot | 1 | ||||||
| 4 | 12-8M2010068 | WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom) | 1 | ||||||
| 5 | 12-35777 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | ||||||
| 6 | 23-99299 | SPACER, (.520 x .870 x .630) | 2 | ||||||
| 7 | 12-32834 | WASHER, (.9375 x 1.750 x .172) | 2 | ||||||
| 8 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel | AR | ||||||
| 9 | 11-863332 | NUT, (.500-20) Aluminium | 2 | ||||||
| 10 | 865437A02 | CABLE KIT, Shift | 1 | 815471A6 | |||||
| 11 | 90412 | WRAPPING, (1.16 Feet Bulk) | 1 | (Cut As Required) | |||||
| 12 | 12-815472 | WASHER, Sealing | 1 | ||||||
| 13 | 11-49910 | NUT, (.375-24) | 1 | ||||||
| - | 43433A01 | GUIDE KIT | 1 | ||||||
| 14 | 43433 | GUIDE | 1 | ||||||
| 15 | 43436 | ANCHOR | 1 | ||||||
| 16 | 10-20518 | SET SCREW, (#8-32) | 2 | ||||||
| 17 | 861632T | INSERT | 1 | 861632 | |||||
| 18 | NSS | NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding | 1 | This Part is not sold separately 23 | |||||
| 19 | NSS | NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding | 1 | This Part is not sold separately 23 | |||||
| 20 | 10-24231 | SCREW, (#10-32 x .250) | 1 | ||||||
| 21 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 1 | 11-82671015 | ||||
| 22 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| 23 | 10-97934 | SCREW, (.500-20 x 5.370) Special | 2 |
