Bravo Three - Serial 0F730000 Thru 0M100000 - Universal Joint - Shifter Components

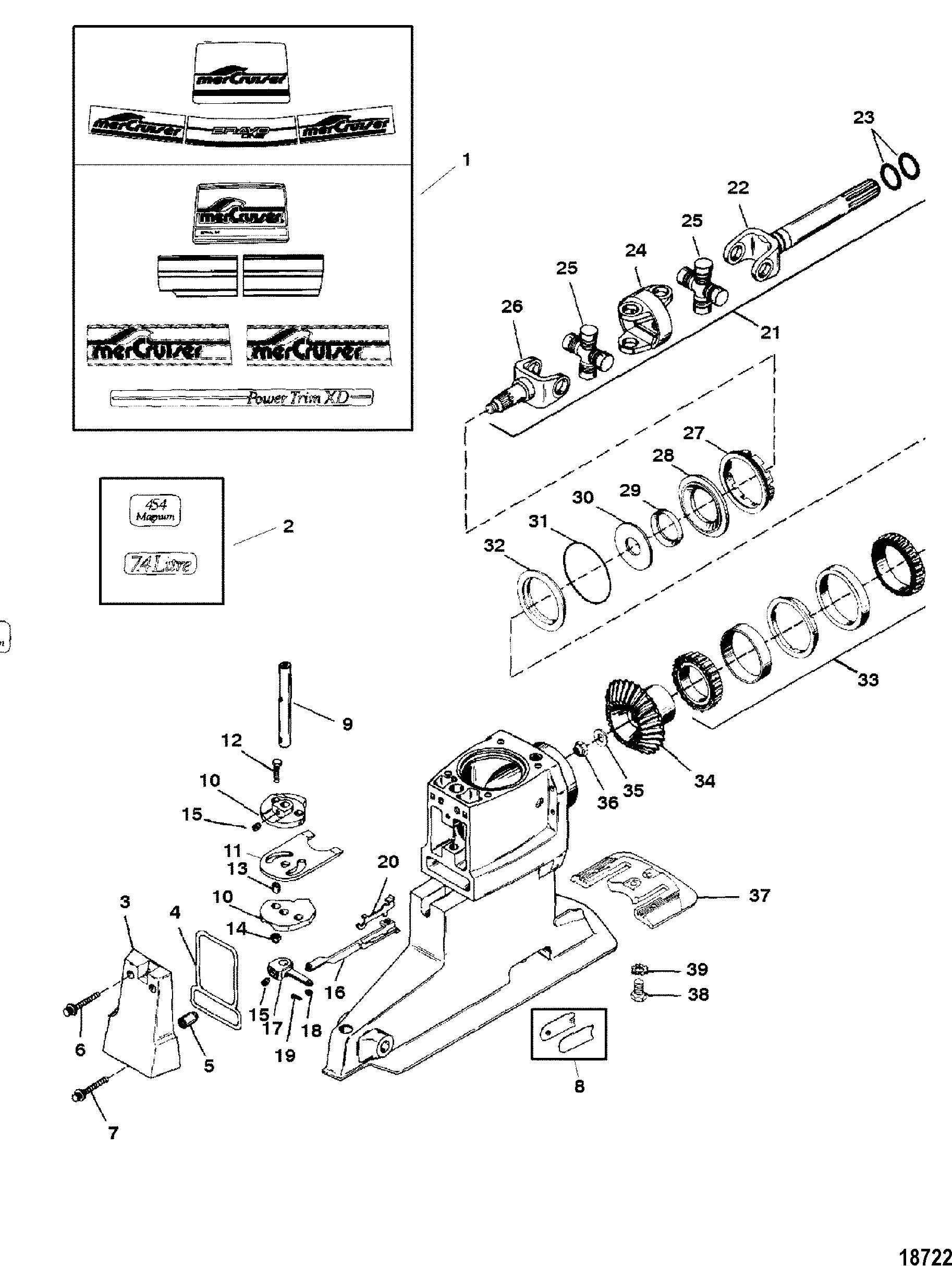

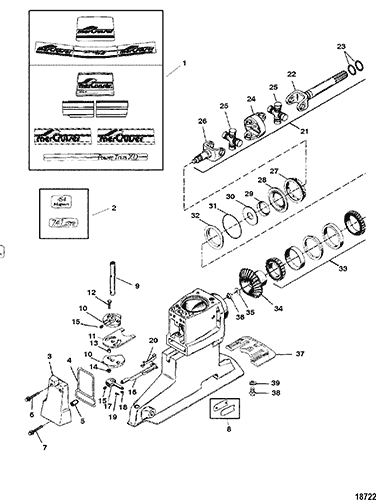

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Note 1: SEE "DECAL SET CHART" FOR DECAL SET PART NUMBERS Note 2: THIS GEAR IS FOR GASOLINE ENGINE APPLICATIONS ONLY. FOR DIESEL APPLICATIONS, ORDER COMPLETE GEAR SET, SEE "DRIVESHAFT HOUSING AND DRIVE GEARS (DIESEL)" REF# 20 FOR P/N. |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | SEE NOTE | 1 | SEE "DECAL SET CHART" FOR DECAL SET PART NUMBERS | ||||||
| 2 | SEE NOTE | 1 | SEE "DECAL SET CHART" FOR DECAL SET PART NUMBERS | ||||||
| 3 | 12717A1 | 525-12717A1 |
COVER ASSEMBLY | 1 | |||||
| 4 | 12708 | 676-9-78001 |
525-12708 |
SEAL | 1 | 3 | |||
| 5 | 865711A02 | 525-865711A02 | DETENT ASSEMBLY | 1 | 14497A2 | ||||
| 6 | 10-98794 | 676-9-78129 |
700-28300 |
525-10-98794 |
SCREW, (.375-16 x 1.00) | 2 | |||
| 7 | 10-87158 | 525-10-87158 |
SCREW, (.375-16 x 1.875) | 1 | |||||
| 8 | 805261A1 | 525-805261A1 |
WEAR PAD KIT | 1 | |||||
| 9 | 12711 | 525-12711 |
SHAFT | 1 | |||||
| 10 | 52-807375A1 | 700-21418 |
CLUTCH AND CAM KIT | 1 | This Part is No Longer Available SN# 0K090999 & Below | ||||
| 10 | 806552A1 | 525-806552A1 |
YOKE AND CAM ASSEMBLY | 1 | SN# 0K091000 & Up | ||||
| 11 | N.S.S. | Not Sold Separate, Yoke-Shifter | 1 | SN# 0K090999 & Below | |||||
| 11 | 806552 | 525-806552 |
YOKE, Shifter | 1 | SN# 0K091000 & Up | ||||
| 12 | 10-805733 | SCREW, (.250-28 x 1.00) | 2 | ||||||
| 13 | 23-12706 | 525-23-12706 |
SPACER, (.194 x .375) | 2 | |||||
| 14 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) | 2 | 11-35045 | ||||
| 15 | 10-38615 | 525-10-38615 |
SCREW, (.250-28 x .750) | 1 | (Shift Lever) | ||||
| 15 | 10-805543 | SCREW, (1.25 inch) | 1 | (Shift Cam) | |||||
| 16 | 861175A2 | 525-861175A2 |
SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever | 1 | |||||
| 17 | 861175A2 | 525-861175A2 |
LEVER | 1 | 12712 | ||||
| 18 | 12-20583 | 525-12-20583 |
WASHER | 1 | |||||
| 19 | 18-26953 | 525-18-26953 |
COTTER PIN | 1 | |||||
| 20 | 86776 | 525-86776 |
LATCH | 1 | |||||
| 21 | 864244A2 | UNIVERSAL JOINT ASSEMBLY | 1 | 12784A10 | (STANDARD) | ||||
| 21 | 12784A19 | UNIVERSAL JOINT ASSEMBLY | 1 | This Part is No Longer Available (USE WITH BLACK TRAC) | |||||
| 22 | 59830A7 | YOKE ASSEMBLY (COUPLER END) | 1 | (STANDARD) | |||||
| 22 | 59830A8 | YOKE ASSEMBLY (COUPLER END) | 1 | This Part is No Longer Available (USE WITH BLACK TRAC) | |||||
| 23 | 25-29845 | O-RING, (.924 x .103) | 2 | 3 | |||||
| 23 | 25-35027 | 700-81180 |
525-25-35027 |
O-RING, (1.046) | 1 | 3 | |||
| 24 | 393831 | SOCKET, Center | 1 | 39383T | |||||
| 25 | 75832T1 | 676-9-72405 |
700-28030 | CROSS AND BEARING | 2 | 758321 | |||
| 26 | 12784 | 676-9-72402 |
700-28340 |
YOKE, Gear End | 1 | ||||
| 27 | 11-92004 | RING NUT | 1 | ||||||
| 28 | 86779A1 | 700-28372 |
CARRIER ASSEMBLY | 1 | |||||
| 29 | 26-807006 | 700-86730 |
525-26-807006 |
SEAL, Oil | 1 | 3 | |||
| 30 | 12-41613 | WASHER | 1 | ||||||
| 31 | 25-861844 | 525-25-861844 |
O-RING, (3.609 x .139) | 1 | 25-97386 | 3 | |||
| 32 | 86780 | RING | 1 | ||||||
| 33 | 31-86763A2 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 34 | 43-826642T | 700-21525 |
GEAR, Pinion (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III) | 1 | This Part is No Longer Available | ||||
| 34 | 43-815661T | GEAR, Pinion (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III) | 1 | This Part is No Longer Available | |||||
| 34 | 43-818664 | GEAR, Pinion (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III) | 1 | This Part is No Longer Available (SEE NOTE 2) (23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR) | |||||
| 35 | 12-44539 | WASHER | 1 | ||||||
| 36 | 11-22339 | 700-28360 |
525-11-22339 |
NUT, (.625-18) | 1 | 11-97522 | |||
| 37 | 821630Q1 | 700-12712 |
525-821630Q1 |
ANODE ASSEMBLY | 1 | 821630A1 | |||
| 38 | 10-65210 | 525-10-65210 |
SCREW, (.375-16 x 1.00) | 2 | |||||
| 39 | 13-35479 | 525-13-35479 |
LOCKWASHER, (.375) | 2 | |||||
| - | 26-16709A2 | 700-87480 |
525-26-16709A2 |
SEAL KIT | 1 | ||||
