Bravo Three - Serial 0F730000 Thru 0M100000 - Trim Cylinder Components

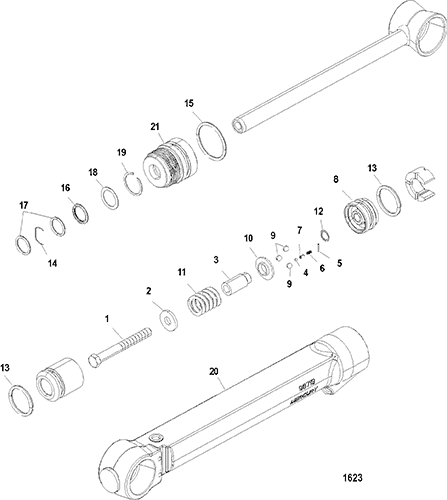

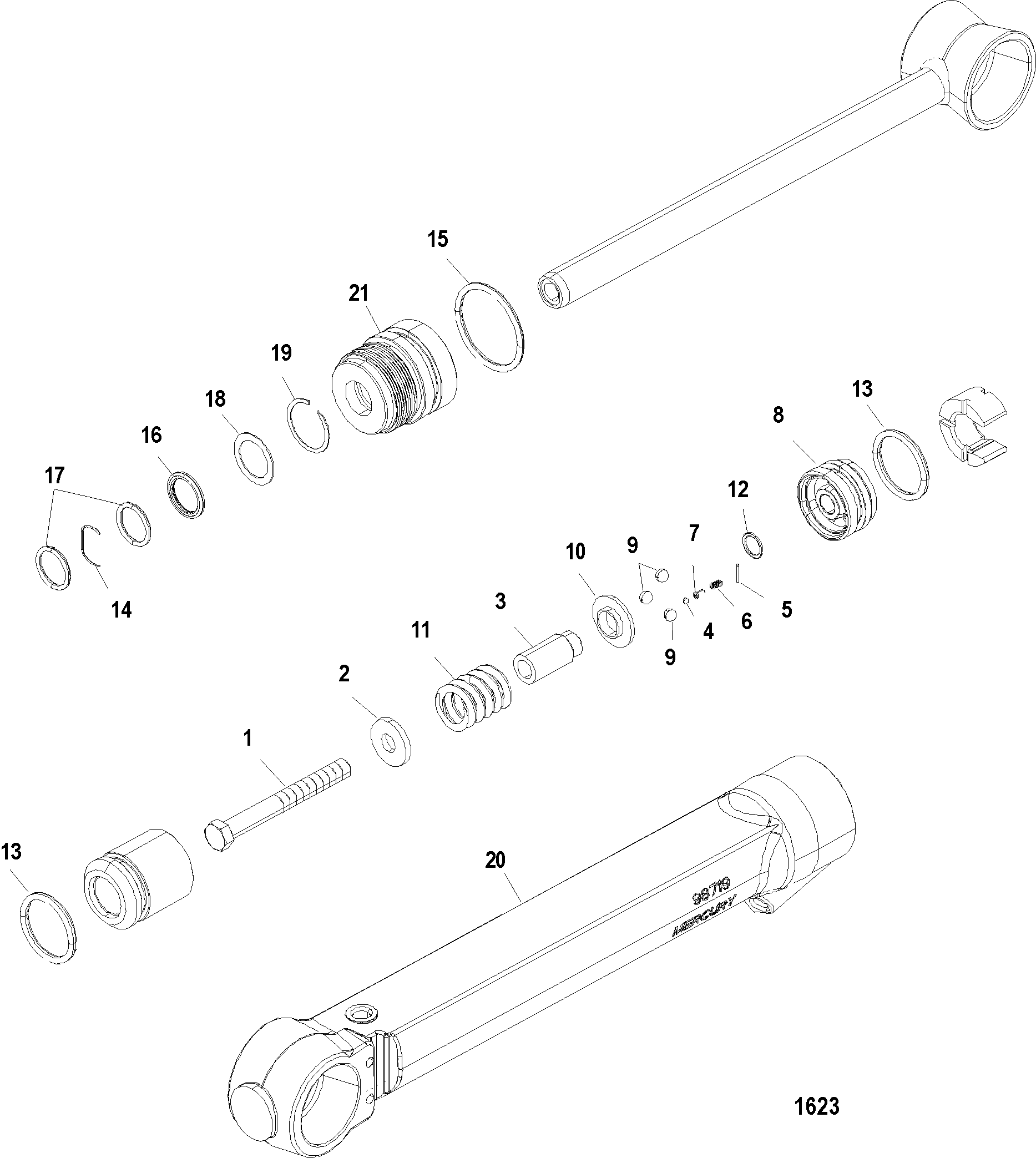

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Note 1: DO NOT SUBSTITUTE O-RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 87399A2 | 700-26380 | OVERHAUL KIT | 1 | |||||
| 1 | NSS | Not Sold Separate, SCREW | 1 | This part is not sold separately | |||||
| 2 | NSS | Not Sold Separate, WASHER | 1 | This part is not sold separately | |||||
| 3 | NSS | Not Sold Separate, GUIDE | 1 | This part is not sold separately | |||||
| 4 | NSS | Not Sold Separate, STEEL BALL (.109 Diameter) | 1 | This part is not sold separately | |||||
| 5 | NSS | Not Sold Separate, PIN | 1 | This part is not sold separately | |||||
| 6 | NSS | Not Sold Separate, SPRING | 1 | This part is not sold separately | |||||
| 7 | NSS | Not Sold Separate, EYELET | 1 | This part is not sold separately | |||||
| 8 | NSS | Not Sold Separate, PISTON | 1 | This part is not sold separately | |||||
| 9 | NSS | Not Sold Separate, BALL (.250 Diameter) | 3 | This part is not sold separately | |||||
| 10 | NSS | Not Sold Separate, PUSHER | 1 | This part is not sold separately | |||||
| 11 | NSS | Not Sold Separate, SPRING | 1 | This part is not sold separately | |||||
| -- | 25-87400A2 | 700-87400 | SEAL KIT | 1 | |||||
| 12 | NSS | Not Sold Separate, O-RING | 1 | This part is not sold separately | |||||
| 13 | NSS | Not Sold Separate, O-RING | 2 | This part is not sold separately | |||||
| 14 | NSS | Not Sold Separate, SPRING | 2 | This part is not sold separately | |||||
| 15 | NSS | Not Sold Separate, O-RING | 1 | This part is not sold separately | |||||
| 16 | NSS | Not Sold Separate, SCRAPER ROD | 1 | This part is not sold separately | |||||
| 17 | NSS | Not Sold Separate, O-RING | 2 | This part is not sold separately | |||||
| 18 | NSS | Not Sold Separate, WASHER | 1 | This part is not sold separately | |||||
| 19 | NSS | Not Sold Separate, RETAINING RING | 1 | This part is not sold separately | |||||
| 20 | 98703T | 700-26411 or 700-26412 |
TUBE, Port Cylinder | 1 | |||||
| 20 | 98704T | 700-26401 or 700-26402 |
TUBE, Starboard Cylinder | 1 | |||||
| 21 | 806191T | 700-11610 | CAP | 2 | |||||
